AP3000 Outdoor
Model AP3000 OutdoorPart no. AP3000 OUTDOOREAN 6971690792992
59 specifications
- Speed2976 Mbit/s
- Weight455 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 2976 Mbit/s
- Weight
- 455 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Cudy
- Category
- Wireless Access Point
- Model
- AP3000 Outdoor
- Part number
- AP3000 OUTDOOR
- EAN / UPC
- 6971690792992
- Also known as
- Cudy Indoor/Outdoor AX3000 High-Power Wi-Fi 6 Access Point
Specifications
59 specifications in 14 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 100,1000,2500,10 Mbit/s |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| VLAN support | Yes |
| Virtual LAN features | Tagged VLAN |
| Quality of Service (QoS) support | Yes |
| Maximum outdoor range | 320 m |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| Number of SSID supported | 8 |
| Guest access | Yes |
| IGMP snooping | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Syslog | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| WAN connection | Ethernet (RJ-45) |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
| DC voltage range | 48-57 V |
| Power consumption (typical) | 5 W |
| Power consumption (max) | 18 W |
Design
| Specification | Value |
|---|---|
| Placement | Pole, Wall |
| Product colour | White |
| International Protection (IP) code | IP65 |
| Reset button | Yes |
| WPS push button | Yes |

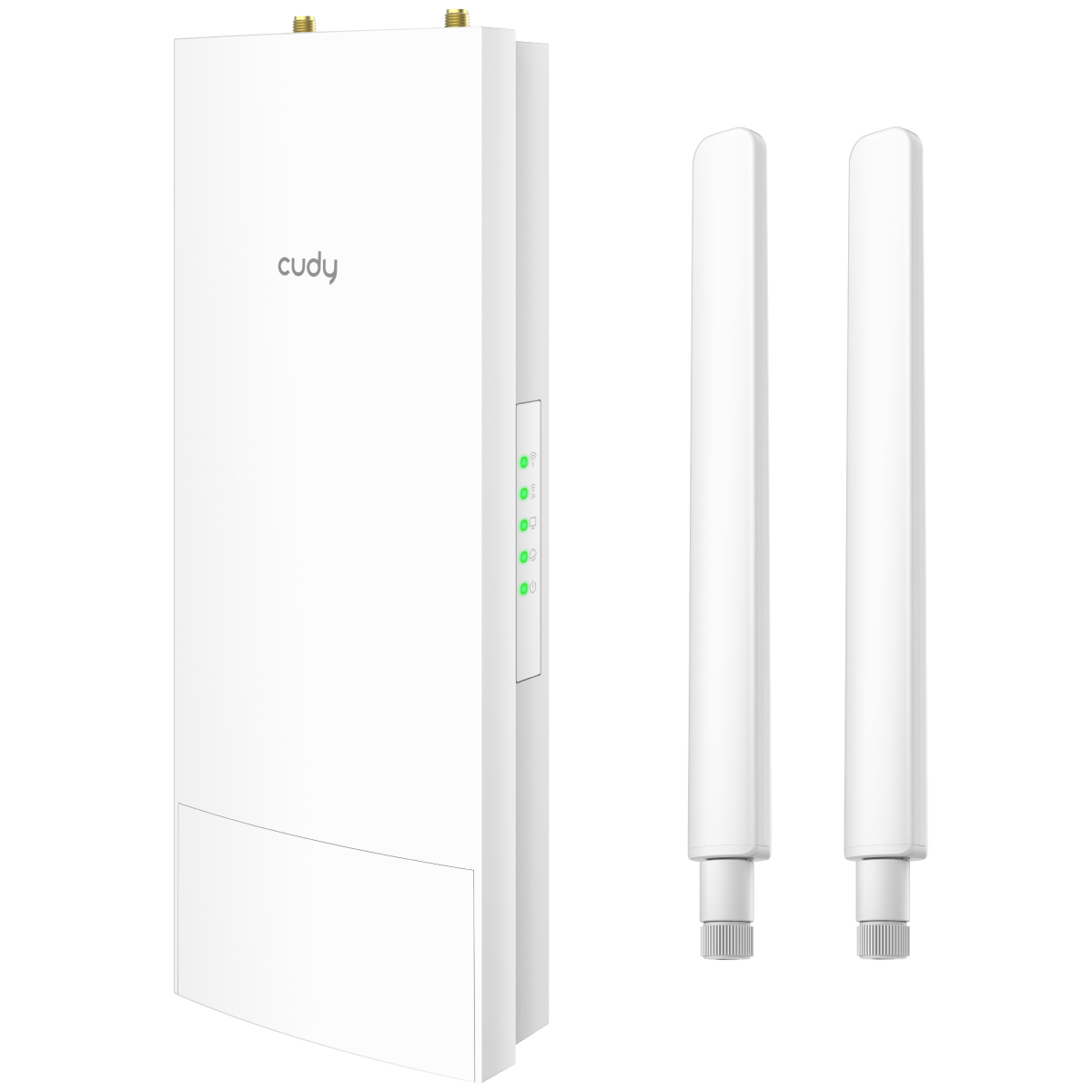

Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal & external |
| Antenna features | Detachable antenna |
| Antennas quantity | 2 |
| Antenna connector type | RP-SMA |
Performance
| Specification | Value |
|---|---|
| Chipset | MT7981, IPQ5018 |
| Flash memory | 128 MB |
Technical details
| Specification | Value |
|---|---|
| Products per shipping (inner) case | 20 pc(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 240 mm |
| Depth | 100 mm |
| Height | 53.7 mm |
| Weight | 455 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 324 mm |
| Package depth | 107 mm |
| Package height | 86 mm |
| Package weight | 856 g |

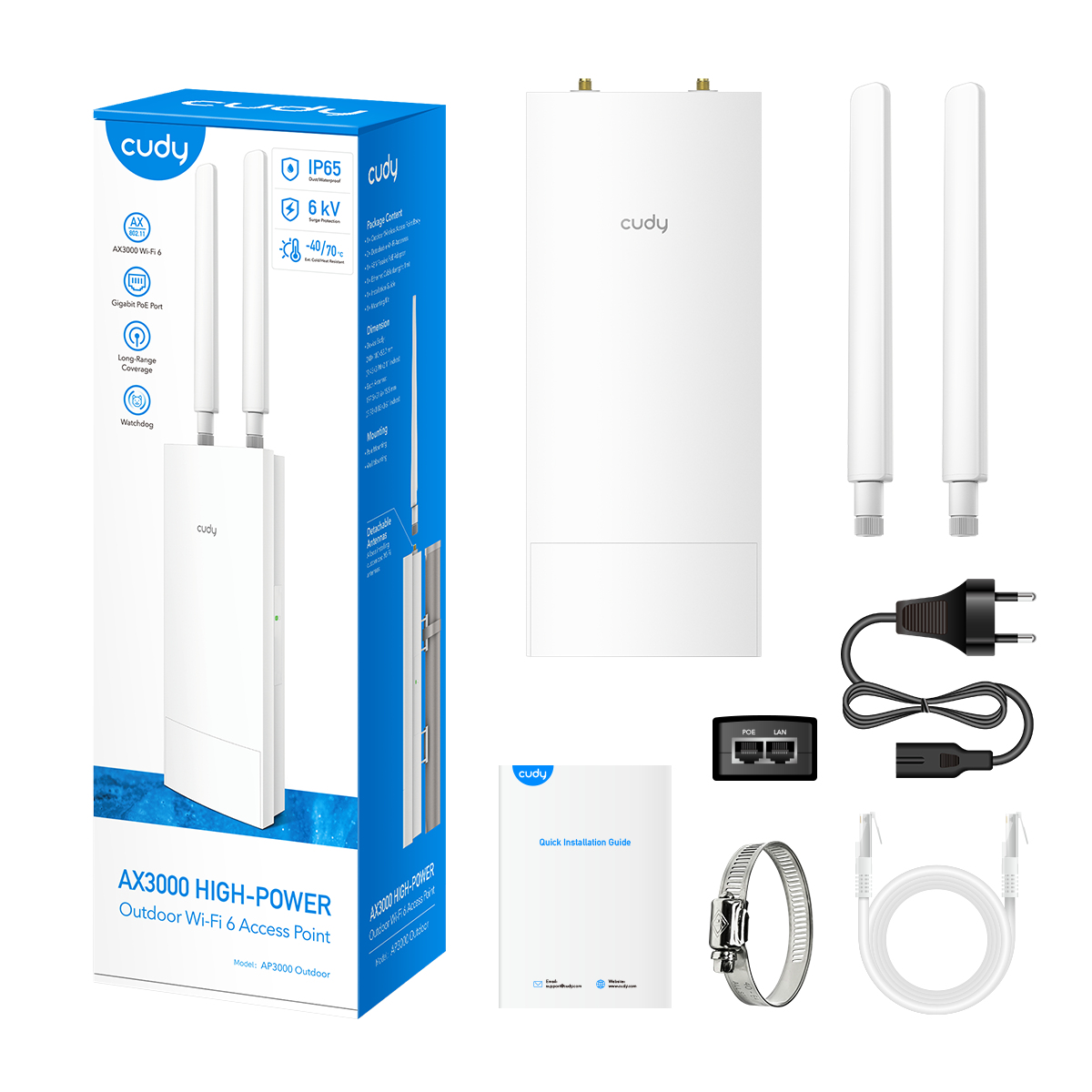

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | No |
| PoE adapter included | Yes |
| Cables included | UTP |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Bundled software | Cudy Software |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
