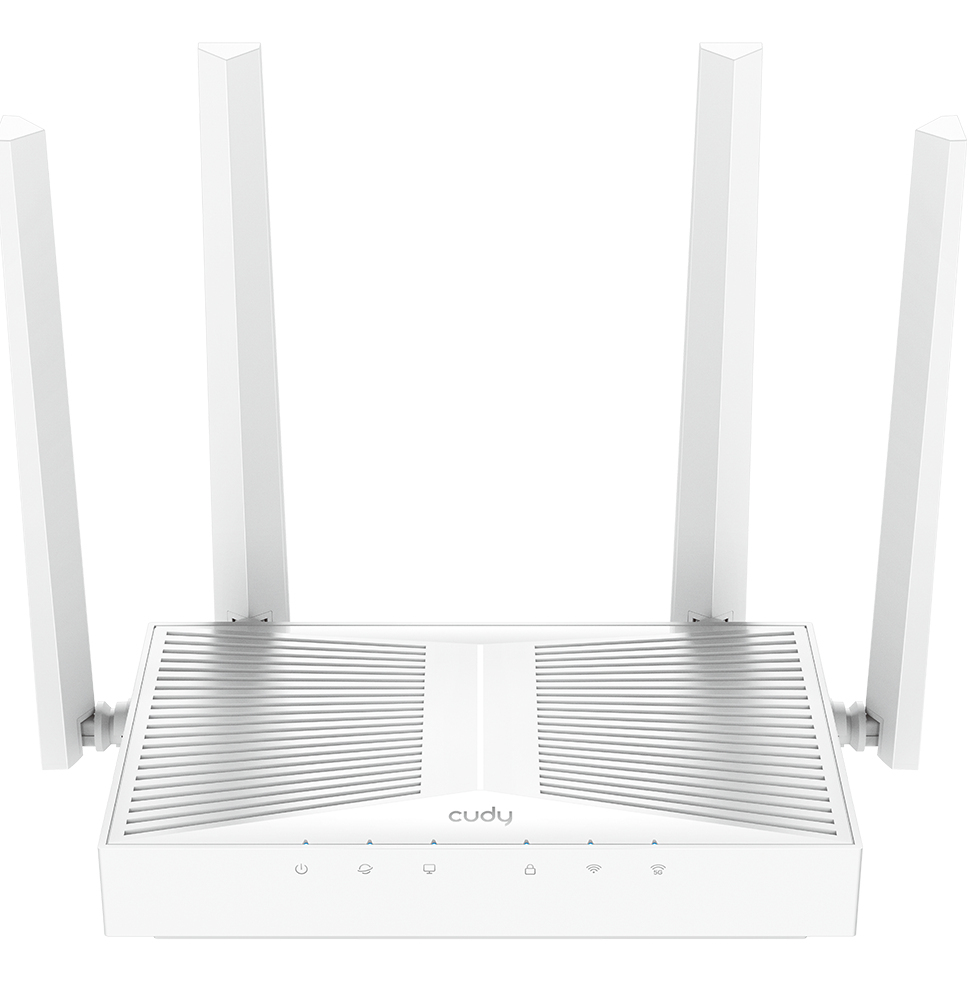

Cudy AP1300D wireless access point 1167 Mbit/s White Power over Ethernet (PoE)

AP1300D wireless access point 1167 Mbit/s White Power over Ethernet (PoE)

Model AP1300DEAN 6971690793920

68 specifications

Memory128 MB
Speed1167 Mbit/s
Weight265.2 g
ColourWhite
2.4 GHzYes
Security algorithmsWPA, WPA2, WPA3

See all specifications

Overview

Memory: 128 MB
Speed: 1167 Mbit/s
Weight: 265.2 g
Colour: White
2.4 GHz: Yes
Security algorithms: WPA, WPA2, WPA3

Brand: Cudy
Category: Wireless Access Point
Model: AP1300D
Part number: AP1300D
EAN / UPC: 6971690793920
Also known as: Cudy AP1300D wireless access point 1167 Mbit/s White Power over Ethernet (PoE)

Specifications

68 specifications in 16 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
6 GHz	No
Maximum data transfer rate	1167 Mbit/s
Maximum data transfer rate (2.4 GHz)	300 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Number of simultaneously connected devices (max)	128
Networking standards	IEEE 802.3af, IEEE 802.3at, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n
Number of users	50 user(s)
Bluetooth	No
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA
VLAN support	Yes
Quality of Service (QoS) support	Yes
Maximum outdoor range	170 m

Security

Specification	Value
Security algorithms	WPA, WPA2, WPA3
Number of SSID supported	8
Guest access	Yes
IGMP snooping	Yes

Protocols

Specification	Value
DHCP server	Yes

Management features

Specification	Value
Cloud-managed	Yes
Syslog	Yes

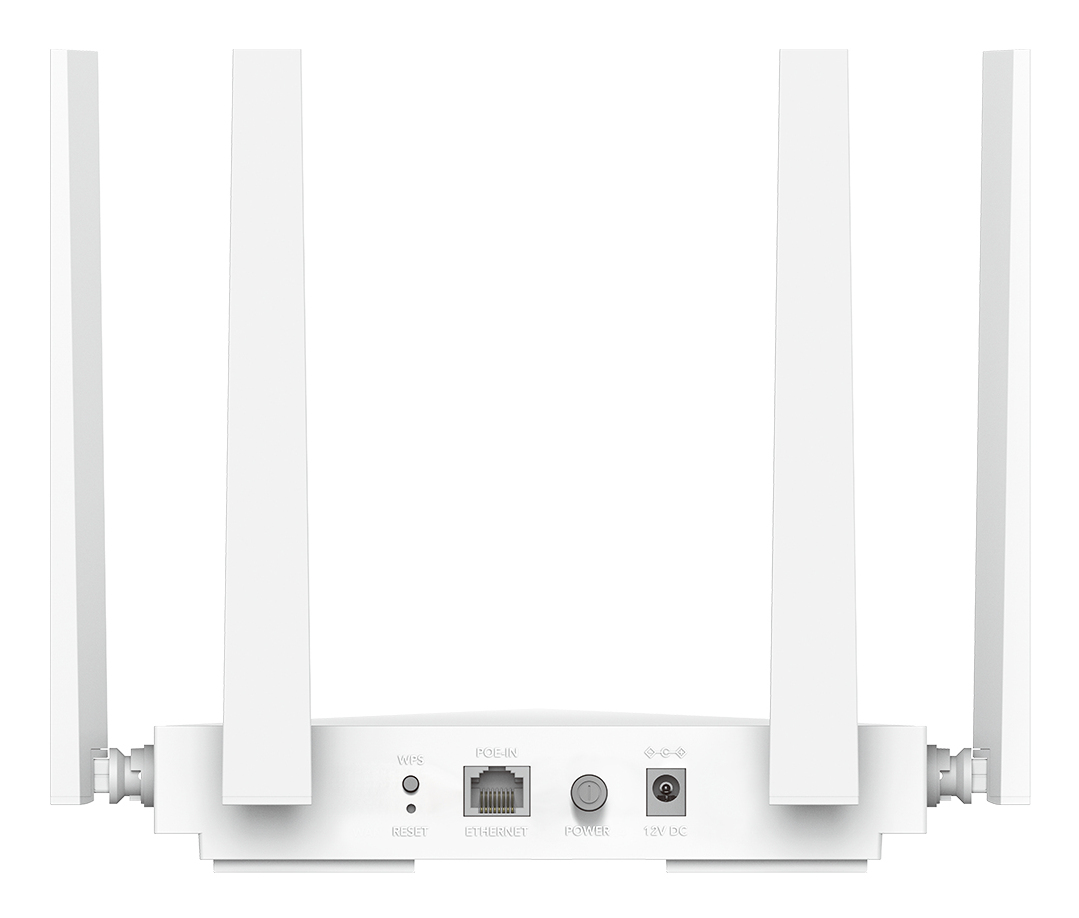

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
Power over Ethernet (PoE)	Yes
Power over Ethernet (PoE) type supported	Passive PoE
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Output voltage	12 V
Output current	1 A
Power consumption (max)	11 W

Design

Specification	Value
Placement	Desk, Wall
Product colour	White
On/off switch	Yes
Reset button	Yes
LED indicators	LAN, Link, Power, WPS, Wi-Fi

Antenna

Specification	Value
Antenna type	External
Antennas quantity	4
Antenna gain level (max)	5.3 dBi

Performance

Specification	Value
Built-in processor	Yes
Processor frequency	880 MHz
Flash memory	16 MB
Internal memory	128 MB

Certificates

Specification	Value
Compliance certificates	CE, Federal Communications Commission (FCC)

Technical details

Specification	Value
Products per shipping (inner) case	10 pc(s)

Weight & dimensions

Specification	Value
Width	183.3 mm
Depth	109 mm
Height	38 mm
Weight	265.2 g

Packaging data

Specification	Value
Package width	330 mm
Package depth	256 mm
Package height	60 mm
Package weight	672.4 g

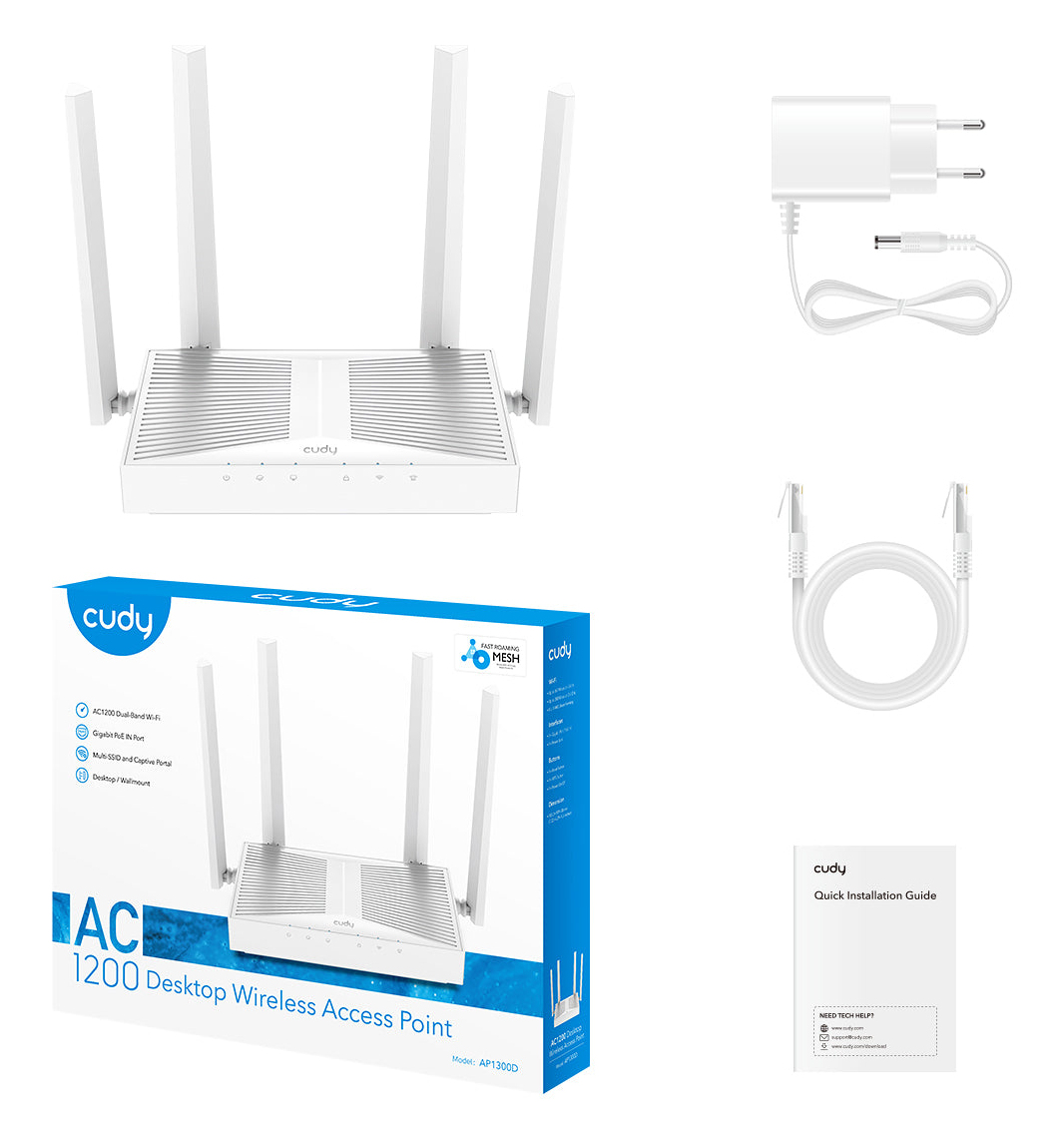

Packaging content

Specification	Value
AC adapter included	Yes
PoE adapter included	No
Cables included	UTP
Mounting kit	No
Quick start guide	Yes
Bundled software	Cudy Software

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	-10 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%

Logistics data

Specification	Value
Country of origin	China
