AP1300 1167 Mbit/s White Power over Ethernet (PoE)
Model AP1300Part no. AP1300_PEAN 6971690793272
45 specifications
- Memory128 MB
- Speed1167 Mbit/s
- Weight400 g
- ColourWhite
- 2.4 GHzYes
- Security algorithmsWPA, WPA2, WPA3
Overview
- Memory
- 128 MB
- Speed
- 1167 Mbit/s
- Weight
- 400 g
- Colour
- White
- 2.4 GHz
- Yes
- Security algorithms
- WPA, WPA2, WPA3
- Brand
- Cudy
- Category
- Wireless Access Point
- Model
- AP1300
- Part number
- AP1300_P
- EAN / UPC
- 6971690793272
- Also known as
- Cudy AP1300 1167 Mbit/s White Power over Ethernet (PoE)
Specifications
45 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 1 A |
Design
| Specification | Value |
|---|---|
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | System |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antennas quantity | 4 |
| Antenna gain level (max) | 5.31 dBi |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 880 MHz |
| Flash memory | 16 MB |
| Internal memory | 128 MB |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 231.9 mm |
| Height | 57.1 mm |
| Weight | 400 g |

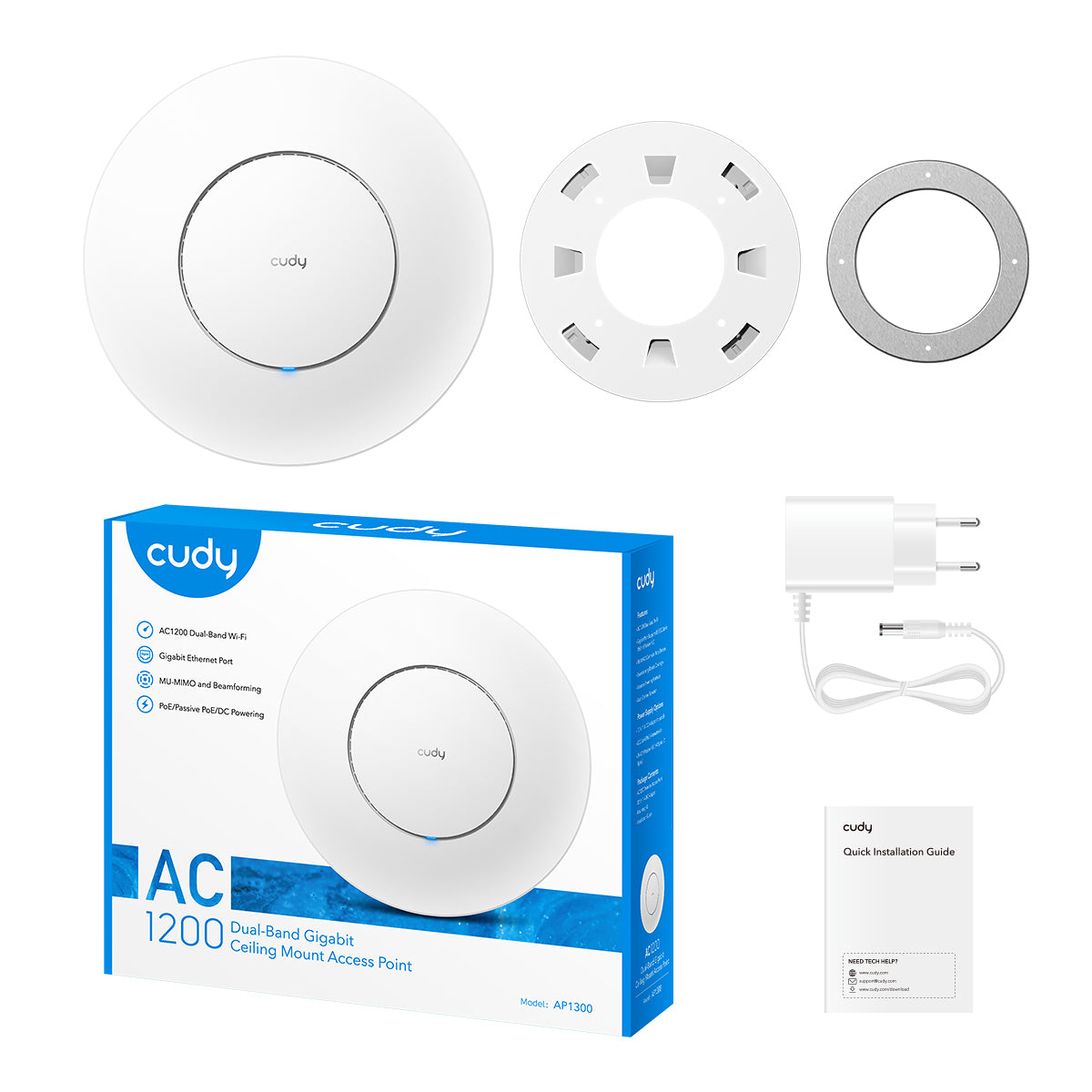

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Mounting kit | Yes |
| Quick start guide | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -10 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
