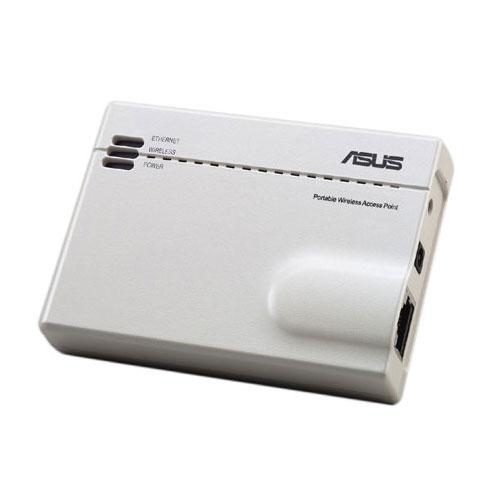

ASUS WL-330gE 54 Mbit/s

WL-330gE 54 Mbit/s

Model WL-330gEPart no. 90-IDA002U00-2PA0EAN 4719543091432

33 specifications

Speed54 Mbit/s
Weight50 g
2.4 GHzYes
Ethernet LAN (RJ-45) ports1
Power requirements100 - 240 V, 50/60 Hz
LED indicatorsLAN, Power, WLAN

See all specifications

Overview

Speed: 54 Mbit/s
Weight: 50 g
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 1
Power requirements: 100 - 240 V, 50/60 Hz
LED indicators: LAN, Power, WLAN

Brand: ASUS
Category: Wireless Access Point
Model: WL-330gE
Part numbers: 90-IDA002U00-2PA0, 90-IDA002M00-3PA0, 90-IDA002U00-01PZ
EAN / UPC: 4719543091432, 5052178373672
Also known as: ASUS WL-330gE 54 Mbit/s

Specifications

33 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
Maximum data transfer rate	54 Mbit/s
Ethernet LAN data rates	10,100 Mbit/s
Frequency band	2.4 GHz
Cabling technology	10/100Base-T(X)
Channels quantity	13 channels
Modulation	DBPSK, DQPSK, OFDM
Receiver sensitivity	802.11 b: (-95dBm@1Mbps,-96dBm@2Mbps,-95dBm@5.5Mbps,-92dBm@11Mbps); 802.11 g: (-94dBm@6Mbps,-93dBm@9Mbps,-91dBm@12Mbps,-90dBm@18Mbps,-86dBm@24Mbps,-83dBm@36Mbps,-77dBm@48Mbps,-74dBm@54Mbps).

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, PEAP, SSL/TLS, TTLS, WPA, WPA-AES, WPA-PSK, WPA-TKIP, WPA2, WPA2-PSK
MAC address filtering	Yes

Protocols

Specification	Value
Universal Plug and Play (UPnP)	Yes
DHCP server	Yes
DHCP client	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power

Specification	Value
Power requirements	100 - 240 V, 50/60 Hz

Design

Specification	Value
LED indicators	LAN, Power, WLAN
Internal	No

Antenna

Specification	Value
Antenna gain level (max)	1.25 dBi

Certificates

Specification	Value
Certification	CE, FCC, ICE, MIC, C-Tick, NCC

Weight & dimensions

Specification	Value
Dimensions (WxDxH)	62 x 86 x 17 mm
Weight	50 g

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Supported data transfer rates	1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48 Mbit/s
Indoor range	40m.
Outdoor range	100m.
Compliance industry standards	IEEE802.11g, IEEE802.11b, IEEE802.11d, IEEE802.3, IEEE802.3u, IEEE802.1X, WPA, WMM, IPv4
Transmit power range	17 - 19 dBmW
Wireless technology	802.11 b/g

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Storage relative humidity (H-H)	0 - 90%
