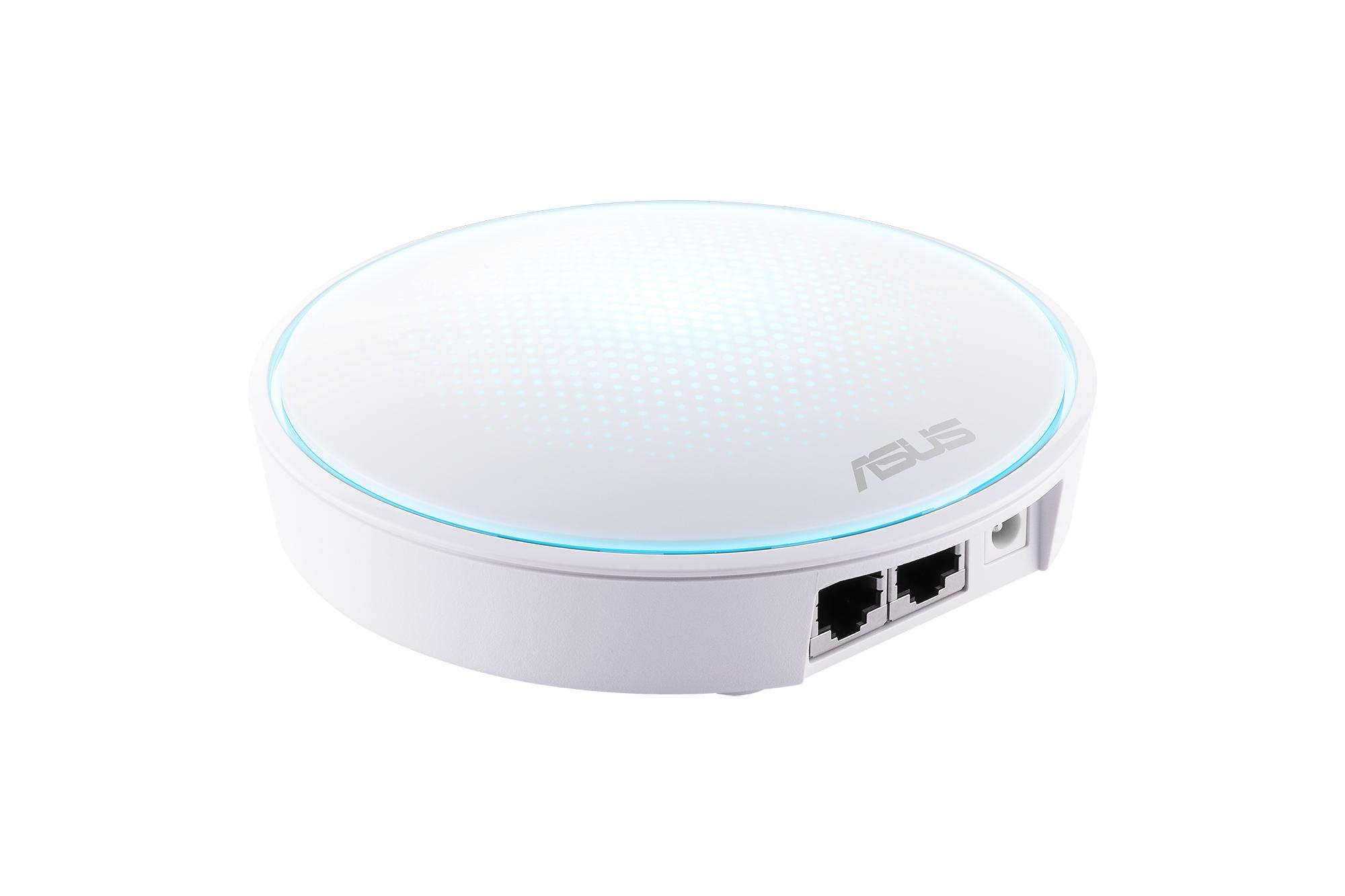

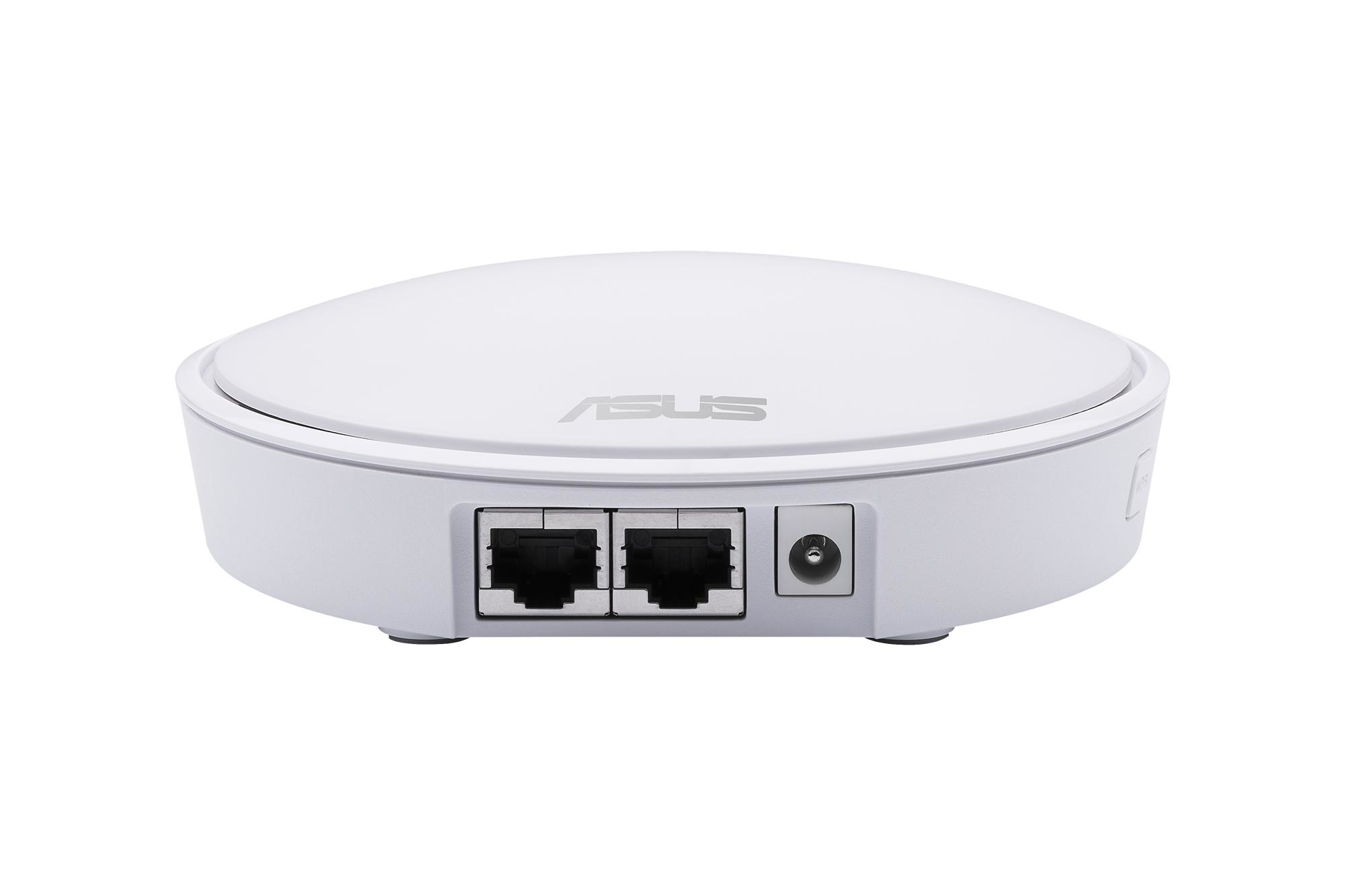

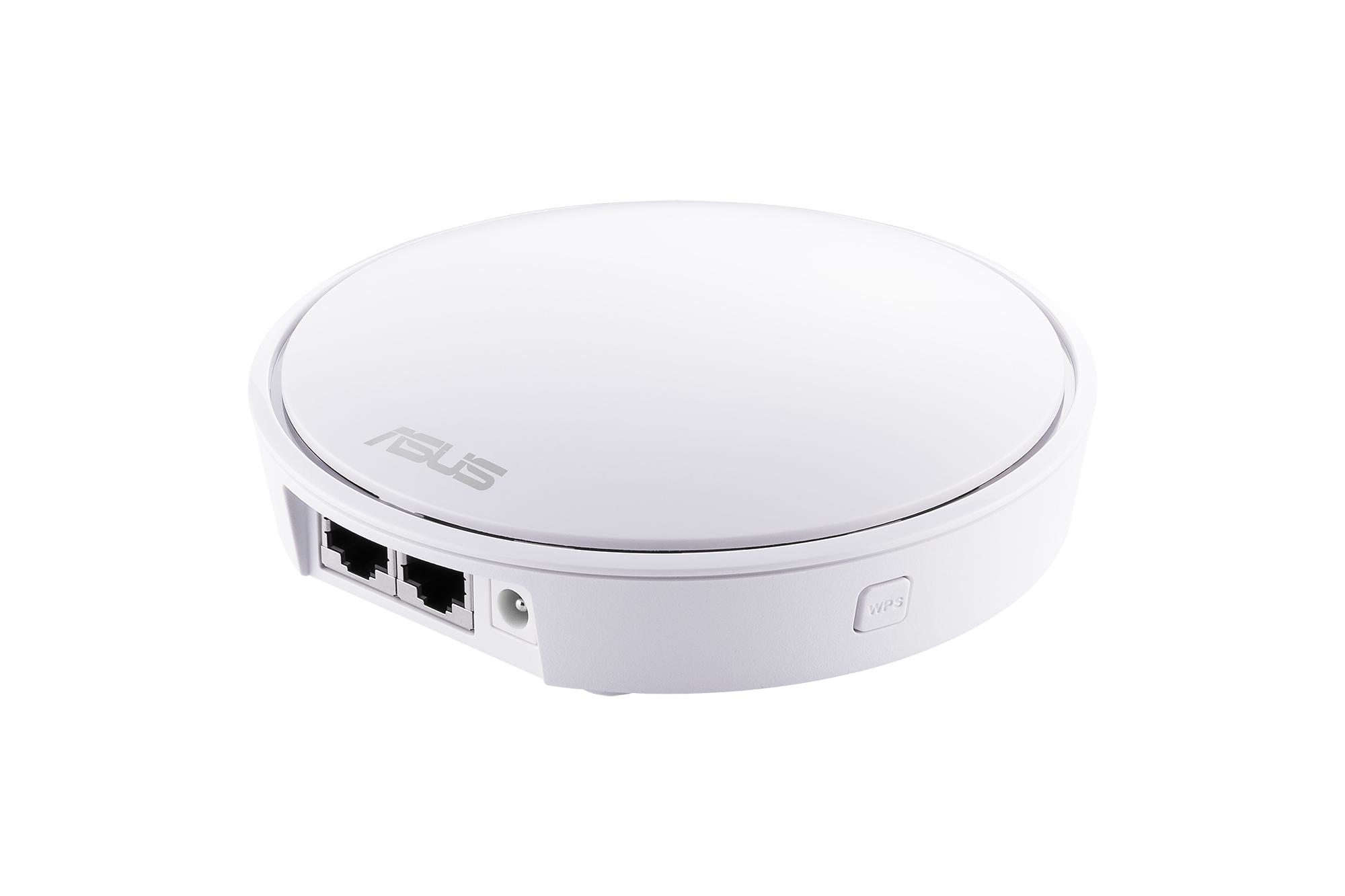

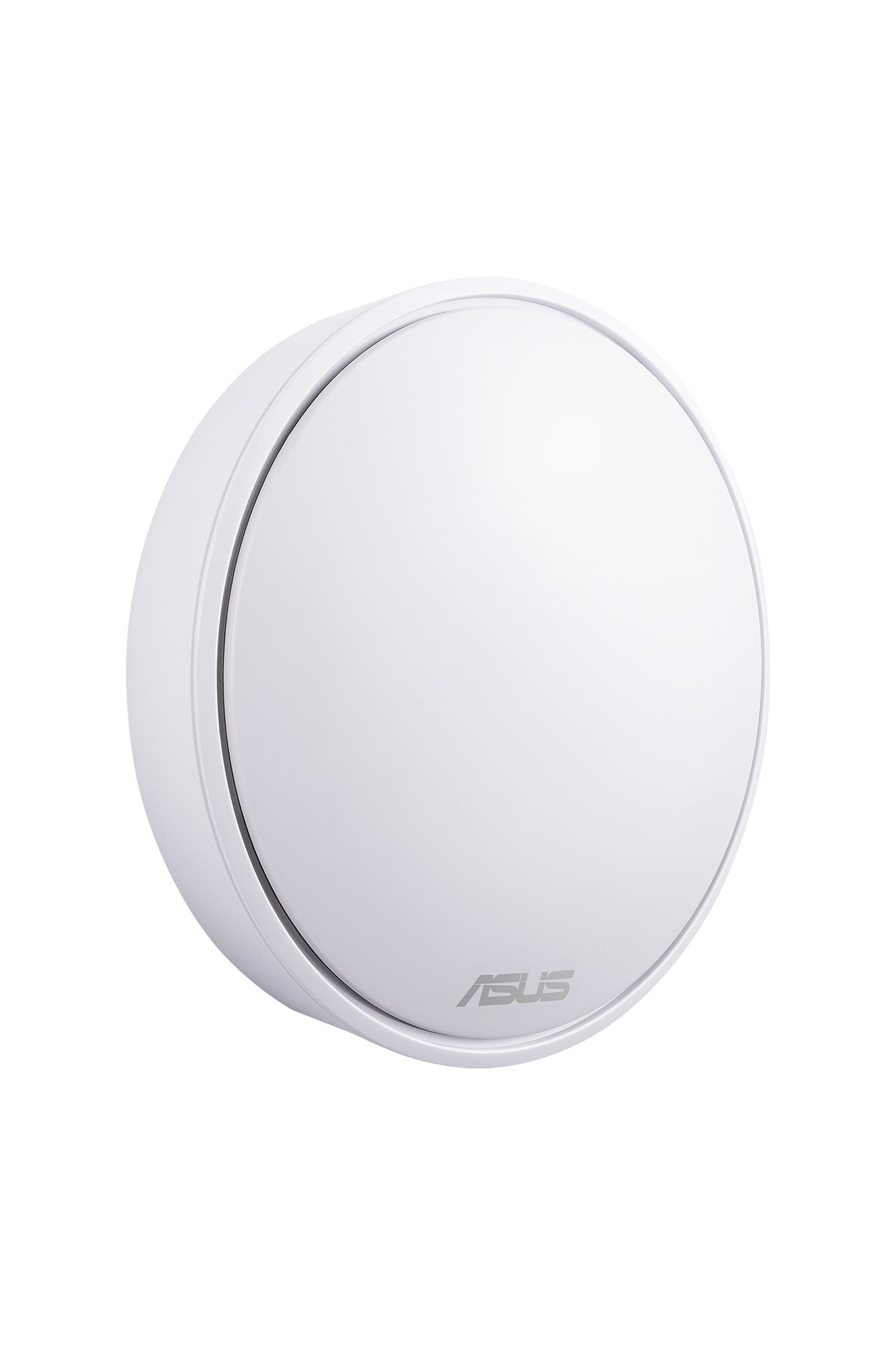

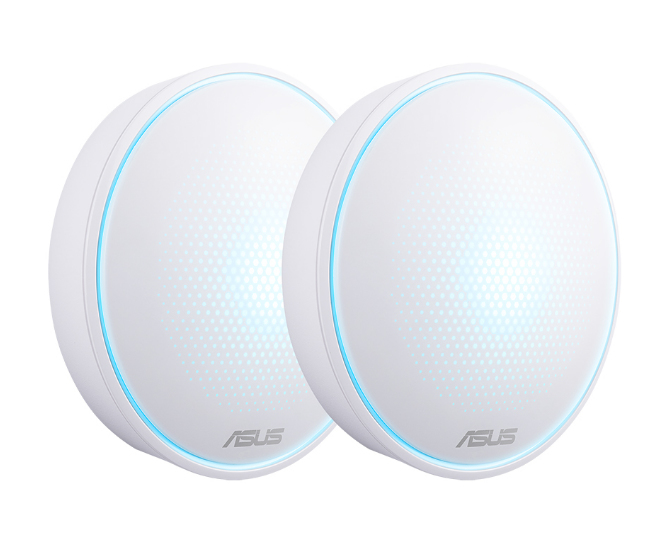

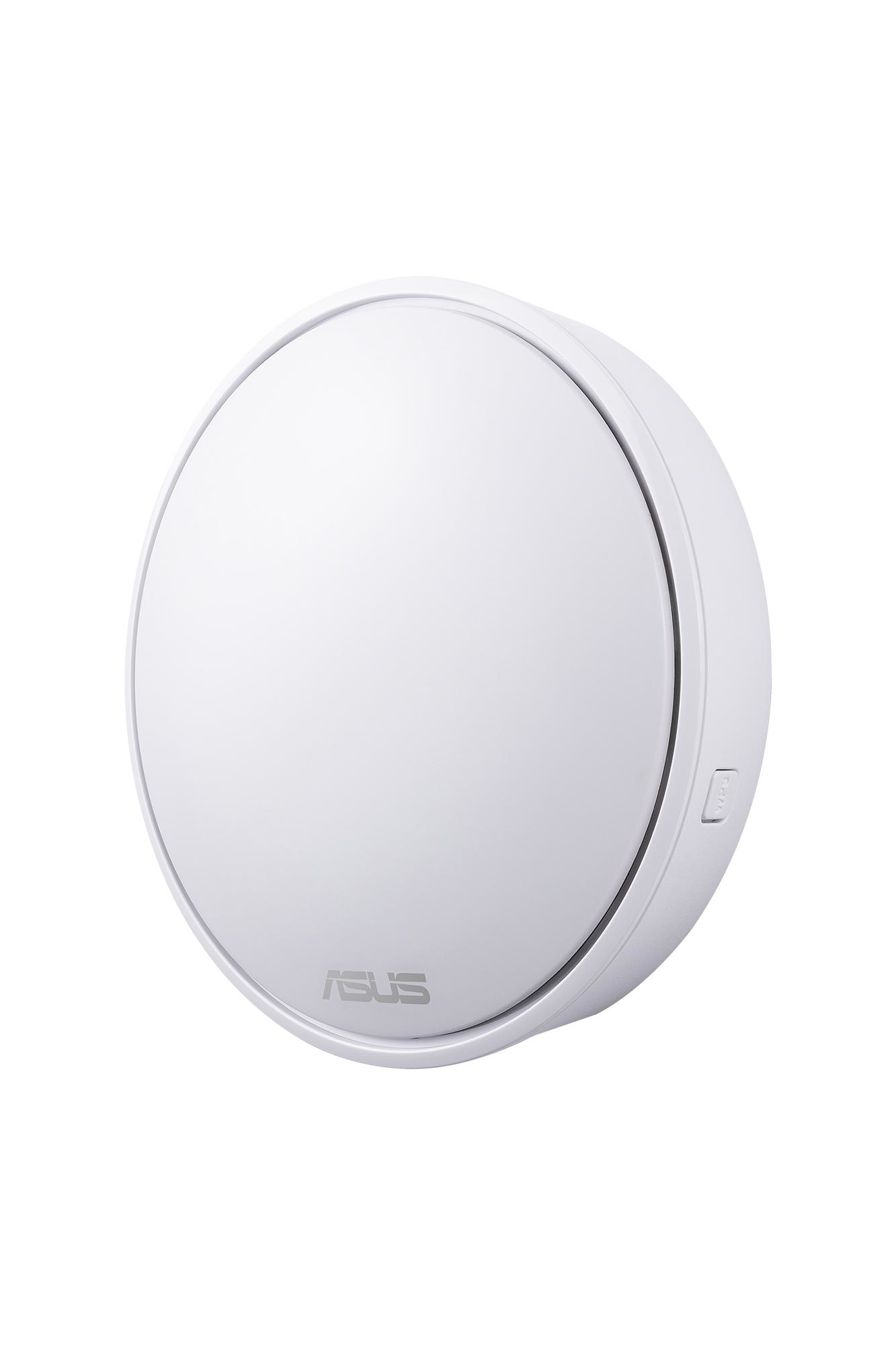

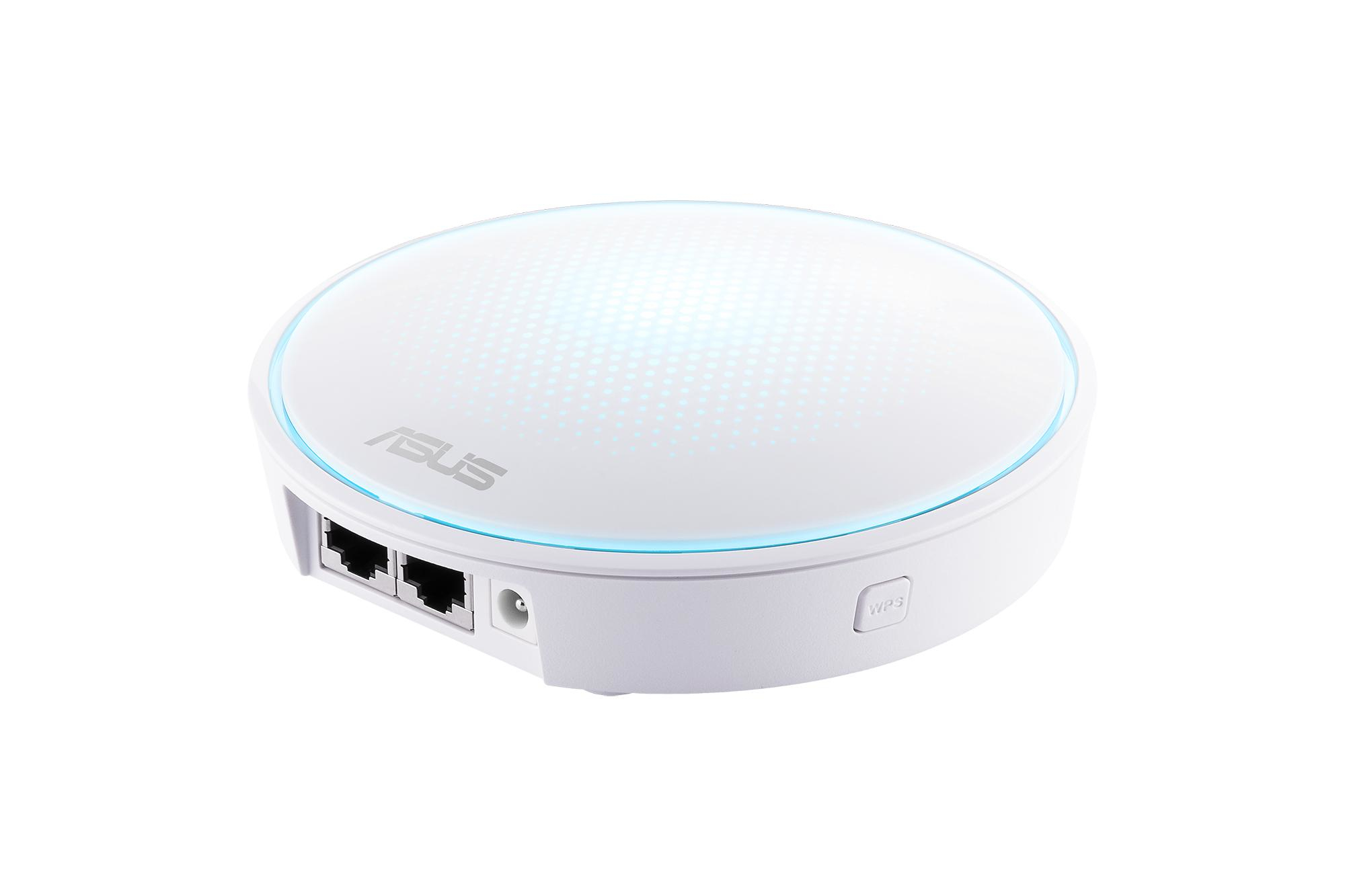

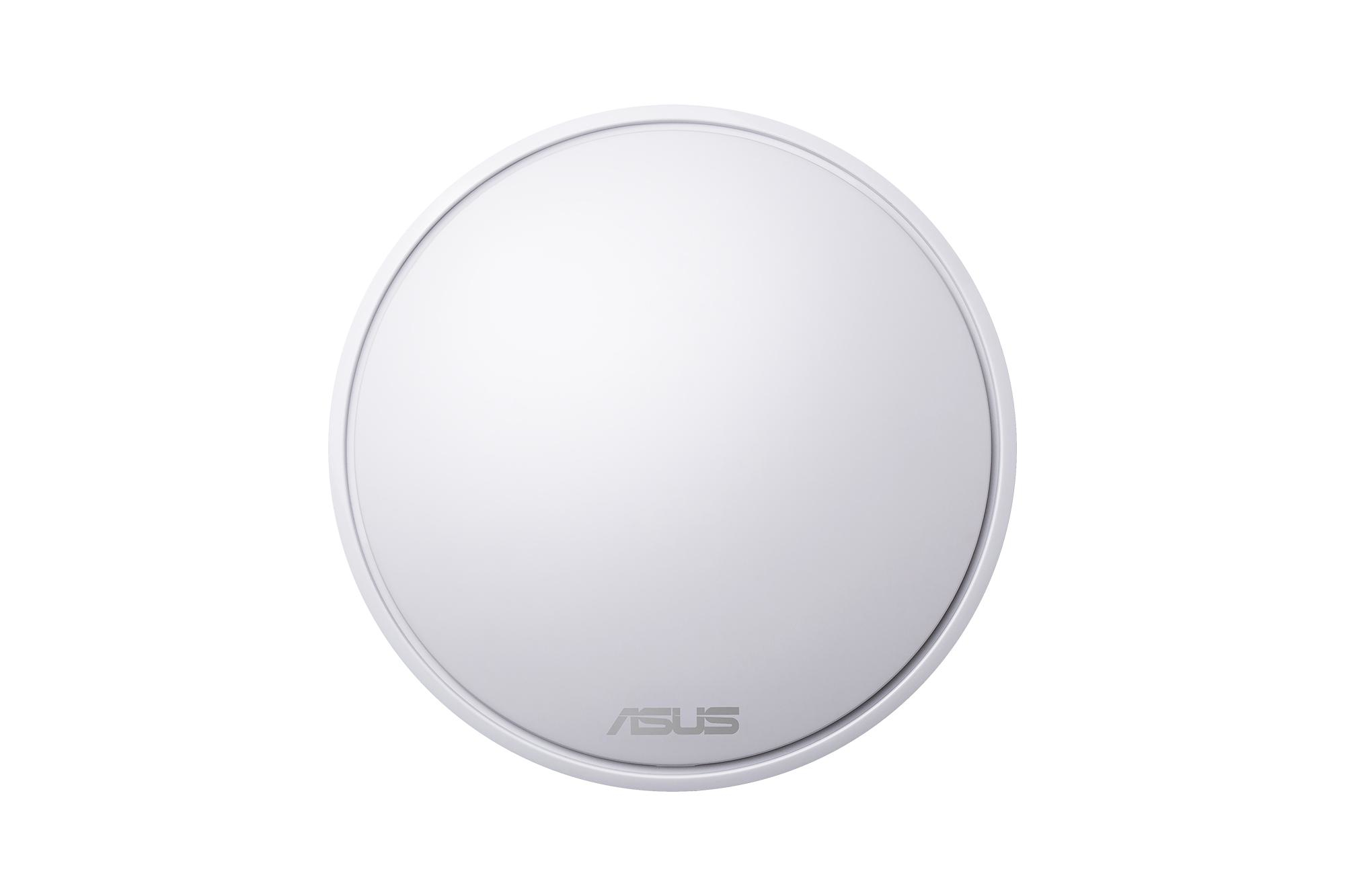

ASUS Lyra Mini x2

ASUS Lyra Mini x2

Model Lyra Mini x2Part no. 90IG04B0-BO0B30EAN 889349831175

31 specifications

Speed867 Mbit/s
ColourWhite
2.4 GHzYes
Security algorithmsWPA2-PSK, WPS
Ethernet LAN (RJ-45) ports2
AC input frequency50 - 60 Hz

See all specifications

Overview

Speed: 867 Mbit/s
Colour: White
2.4 GHz: Yes
Security algorithms: WPA2-PSK, WPS
Ethernet LAN (RJ-45) ports: 2
AC input frequency: 50 - 60 Hz

Brand: ASUS
Category: Wireless Access Point
Model: Lyra Mini x2
Part number: 90IG04B0-BO0B30
EAN / UPC: 889349831175, 4058154302224, 4712900831177
Also known as: ASUS Lyra Mini x2 867 Mbit/s White

Specifications

31 specifications in 10 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	867 Mbit/s
Maximum data transfer rate (5 GHz)	867 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4, 5 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Quality of Service (QoS) support	Yes

Security

Specification	Value
Security algorithms	WPA2-PSK, WPS

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0
WAN connection	Ethernet (RJ-45)
DC-in jack	Yes

Power

Specification	Value
AC input frequency	50 - 60 Hz
AC input voltage	110 - 240 V
Input current	5 A
Output voltage	2 V

Design

Specification	Value
Placement	Table
Product colour	White
Reset button	Yes
Internal	No

Antenna

Specification	Value
Antenna type	Internal
Antennas quantity	3

Performance

Specification	Value
Compatible operating systems	- Windows® 10 - Windows® 8.1 - Windows® 8 - Windows® 7 - Mac OS X 10.1 - Mac OS X 10.4 - Mac OS X 10.4 - Mac OS X 10.5 - Mac OS X 10.6 - Mac OS X 10.7 - Mac OS X 10.8

Weight & dimensions

Specification	Value
Width	132 mm
Depth	132 mm
Height	33 mm

Packaging content

Specification	Value
AC adapter included	Yes
Cables included	AC, LAN (RJ-45)
Quick start guide	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
