EBA63 ExpertWiFi AX3000 Dual-band PoE
Model EBA63 ExpertWiFi AX3000 Dual-band PoEPart no. 90IG0880-MO3C00EAN 4711387003442
45 specifications
- Memory512 MB
- Speed2402 Mbit/s
- Weight426 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
Overview
- Memory
- 512 MB
- Speed
- 2402 Mbit/s
- Weight
- 426 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- ASUS
- Category
- Wireless Access Point
- Model
- EBA63 ExpertWiFi AX3000 Dual-band PoE
- Part number
- 90IG0880-MO3C00
- EAN / UPC
- 4711387003442
- Also known as
- ASUS EBA63 ExpertWiFi AX3000 Dual-band PoE 2402 Mbit/s White Power over Ethernet (PoE)
Specifications
45 specifications in 11 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2402 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Number of users | 100 user(s) |
| Spread spectrum method | OFDMA |
| VLAN support | Yes |
| BeamForming | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | IPSec, SSH, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPS |
| MAC address filtering | Yes |
| Number of SSID supported | 5 |
Management features
| Specification | Value |
|---|---|
| Syslog | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Input current | 1.5 A |
Design
| Specification | Value |
|---|---|

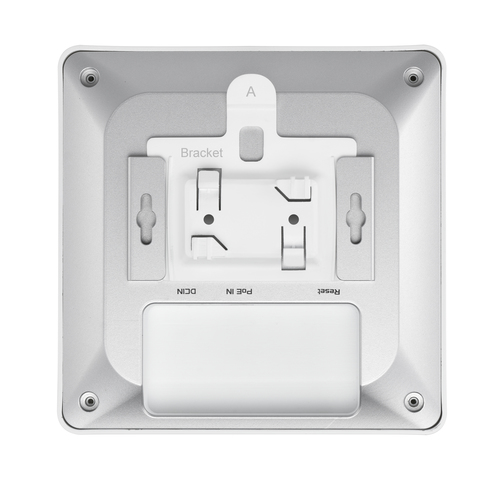

| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Power |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 4 |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 1.7 MHz |
| Flash memory | 256 MB |
| Internal memory | 512 MB |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 160 mm |
| Height | 42 mm |
| Weight | 426 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 262 mm |
| Package depth | 180 mm |
| Package height | 58 mm |
| Package weight | 750 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Mounting kit | Yes |
| Quick start guide | Yes |
