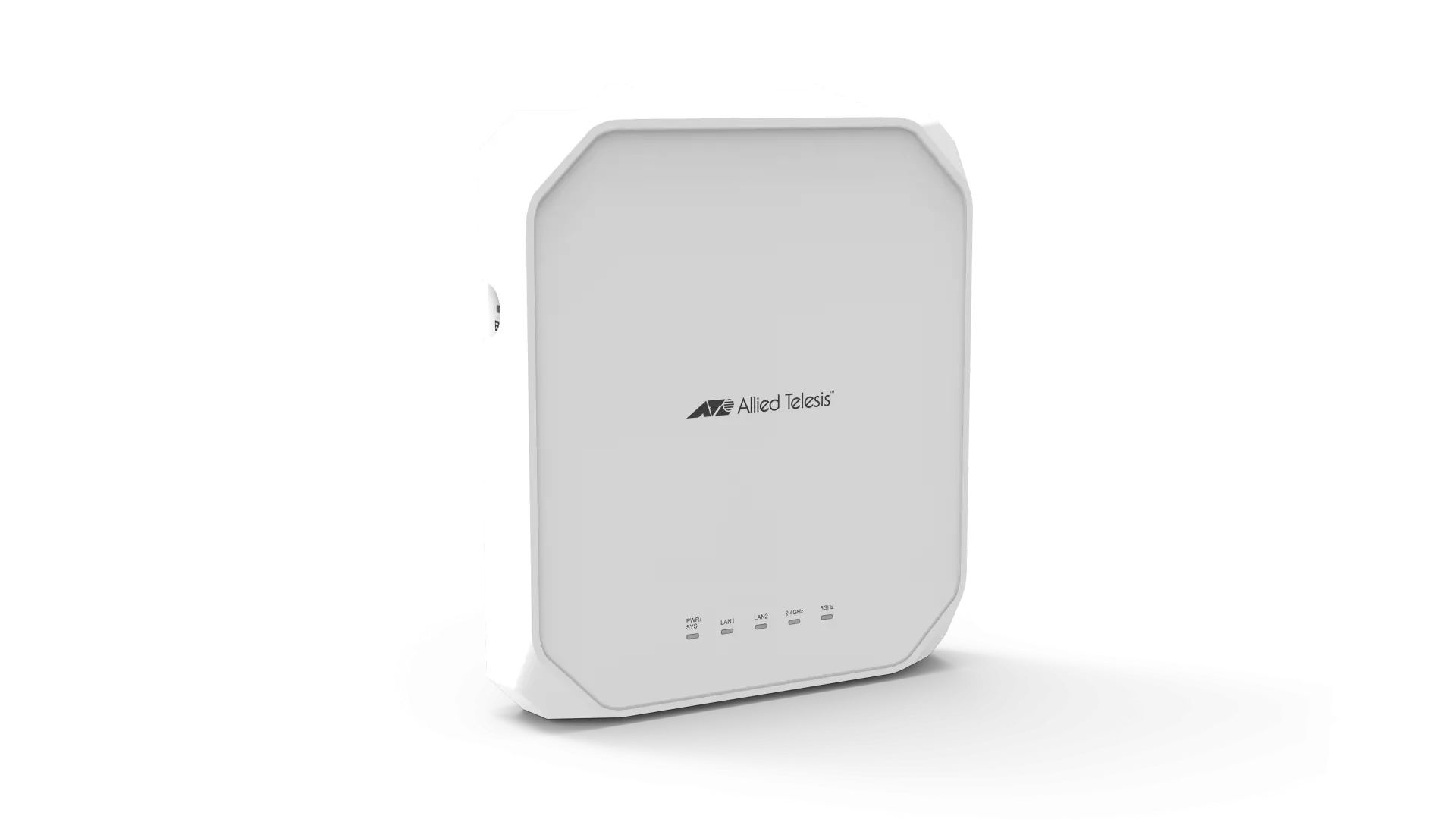

TQM6602 GEN2
Model TQM6602 GEN2Part no. AT-TQM6602 GEN2-00EAN 767035224640
54 specifications
- Speed2401.9 Mbit/s
- Weight1.2 kg
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports2
- PlacementWall
Overview
- Speed
- 2401.9 Mbit/s
- Weight
- 1.2 kg
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 2
- Placement
- Wall
- Brand
- Allied Telesis
- Category
- Wireless Access Point
- Model
- TQM6602 GEN2
- Part number
- AT-TQM6602 GEN2-00
- EAN / UPC
- 767035224640
- Also known as
- Allied Telesis TQM6602 GEN2 2401.9 Mbit/s White Power over Ethernet (PoE)
Specifications
54 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 2401.9 Mbit/s |
| Ethernet LAN data rates | 10,100,1000,2500,5000 Mbit/s |
| Frequency band | 2.4 GHz |
| Networking standards | IEEE 802.11ax, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Flow control support | Yes |
| Wireless isolation | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, SSID, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
| Management protocols | SNMPv1, v2c, v3 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Syslog | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 13 W |
| Power consumption (max) | 16.9 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 5.93 dBi |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 45 mm |
| Height | 240 mm |
| Weight | 1.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating altitude | 0 - 3048 m |
| Storage relative humidity (H-H) | 5 - 95% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
