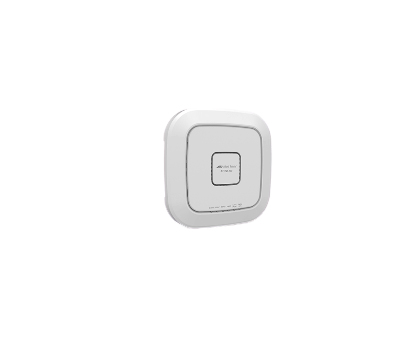

Allied Telesis TQ5403 2133 Mbit/s White Power over Ethernet (PoE)

TQ5403 2133 Mbit/s White Power over Ethernet (PoE)

Model TQ5403Part no. AT-TQ5403-00

40 specifications

Speed2133 Mbit/s
Weight700 g
ColourWhite
2.4 GHzYes
Ethernet LAN (RJ-45) ports2
PlacementCeiling, Wall

See all specifications

Overview

Speed: 2133 Mbit/s
Weight: 700 g
Colour: White
2.4 GHz: Yes
Ethernet LAN (RJ-45) ports: 2
Placement: Ceiling, Wall

Brand: Allied Telesis
Category: Wireless Access Point
Model: TQ5403
Part number: AT-TQ5403-00
Also known as: Allied Telesis TQ5403 2133 Mbit/s White Power over Ethernet (PoE)

Specifications

40 specifications in 12 groups

Features

Specification	Value
2.4 GHz	Yes
5 GHz	Yes
Maximum data transfer rate	2133 Mbit/s
Ethernet LAN data rates	10,100,1000 Mbit/s
Frequency band	2.4-2.4835; 5.15-5.25; 5.25-5.35; 5.47-5.725; 5.725-5.85 GHz
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.1AX, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Modulation	16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Wi-Fi Multimedia (WMM)/(WME)	Yes
Fast roaming	Yes
Band steering	Yes

Security

Specification	Value
Security algorithms	64-bit WEP, 128-bit WEP, HTTPS, SNMP, WPA, WPA-AES, WPA-TKIP, WPA2, WPA2-AES, WPA2-CCMP, WPA2-Enterprise, WPA2-PSK, WPA2-TKIP
MAC address filtering	Yes
Service Set Identifier (SSID) features	Hidden SSID
Auto Wireless Distribution System (WDS)	Yes

Protocols

Specification	Value
DHCP client	Yes

Management features

Specification	Value
Syslog	Yes
Firmware upgradeable	Yes

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	2
USB 2.0 ports quantity	0

Power

Specification	Value
Power over Ethernet (PoE)	Yes
AC input voltage	100 - 240 V
Power consumption (typical)	10 W
Power consumption (max)	20 W

Design

Specification	Value
Placement	Ceiling, Wall
Product colour	White
Cable lock slot	Yes
Cable lock slot type	Kensington

Antenna

Specification	Value
Antenna type	Internal
Antenna direction type	Omni-directional
Antenna gain level (max)	4.83 dBi

Certificates

Specification	Value
Certification	FCC, CE, RCM, IMDA, KC, MIC, NBTC, BSMI/NCC, OFCA, SIRIM, WPC, IC EN 60950-1, EN 62368-1, UL 60950-1, UL 62368-1 AS/NZS 2772.2, EN 301 489-1, EN 301 489-17, EN 55024, EN 55032 B, EN 61000-3-2 A, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 6100

Weight & dimensions

Specification	Value
Width	215 mm
Depth	215 mm
Height	48 mm
Weight	700 g

Packaging content

Specification	Value
Quantity per pack	1 pc(s)

Operational conditions

Specification	Value
Operating relative humidity (H-H)	0 - 90%
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Storage relative humidity (H-H)	0 - 95%
