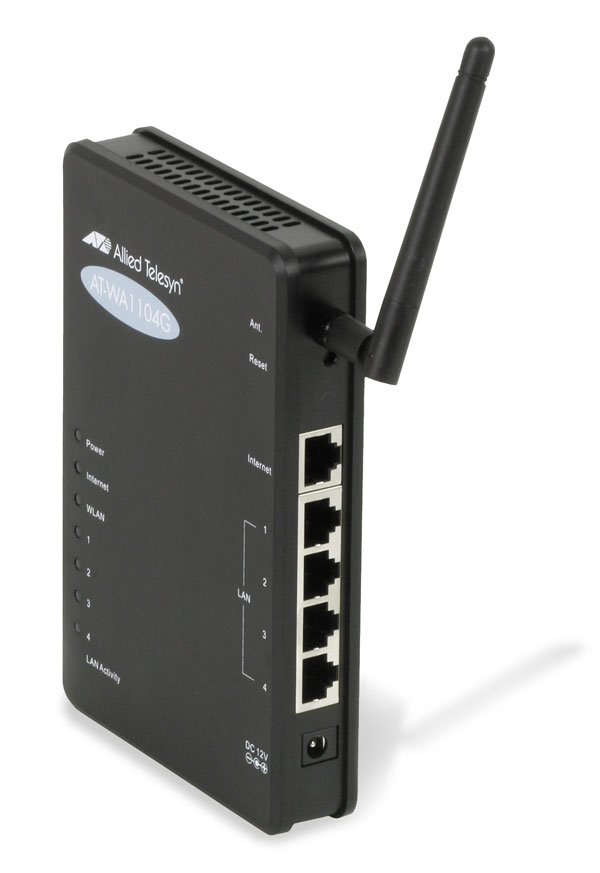

IEEE802.11g Wireless LAN Router w/ 4-ports 10/100TX Switch
Model IEEE802.11g Wireless LAN Router w/ 4-ports 10/100TX SwitchPart no. AT-WA1104G-XX
28 specifications
- Speed54 Mbit/s
- Security algorithmsWEP
- Universal Plug and Play (UPnP)Yes
- Ethernet LAN (RJ-45) ports4
- Power requirements12V
- InternalNo
Overview
- Speed
- 54 Mbit/s
- Security algorithms
- WEP
- Universal Plug and Play (UPnP)
- Yes
- Ethernet LAN (RJ-45) ports
- 4
- Power requirements
- 12V
- Internal
- No
- Brand
- Allied Telesis
- Category
- Wireless Access Point
- Model
- IEEE802.11g Wireless LAN Router w/ 4-ports 10/100TX Switch
- Part number
- AT-WA1104G-XX
- Also known as
- Allied Telesis IEEE802.11g Wireless LAN Router w/ 4-ports 10/100TX Switch 54 Mbit/s
Specifications
28 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| Maximum data transfer rate | 54 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Quality of Service (QoS) support | Yes |
| Receiver sensitivity | 15dBm (IEEE 802.11b) 12dBm (IEEE 802.11g) |
Security
| Specification | Value |
|---|---|
| Security algorithms | WEP |
| MAC address filtering | Yes |
Protocols
| Specification | Value |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Supported network protocols | TCP/UDP/ICMP/ARP |
| Supported protocols | CSMA/CA, ACK |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power requirements | 12V |
| Power supply type | DC |
| Output power description | 13 dBm |
Design
| Specification | Value |
|---|---|
| Internal | No |
Performance
| Specification | Value |
|---|---|
| Compatible operating systems | Linux Windows 2000/ME/XP |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC/EN55022 B, VCCI, CE, Wi-Fi |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 155.5 x 105.5 x 26 mm |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 1, 2, 5.5, 6, 9, 11, 12, 24, 36, 48, 54 Mbps |
| Compliance industry standards | IEEE 802.11b, IEEE 802.11g |
| Frequency range | 2400 - 2483.5 MHz |
| Connectivity LEDs | Yes |
| Non-operating relative humidity (non-condensing) | 10 - 95% |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
