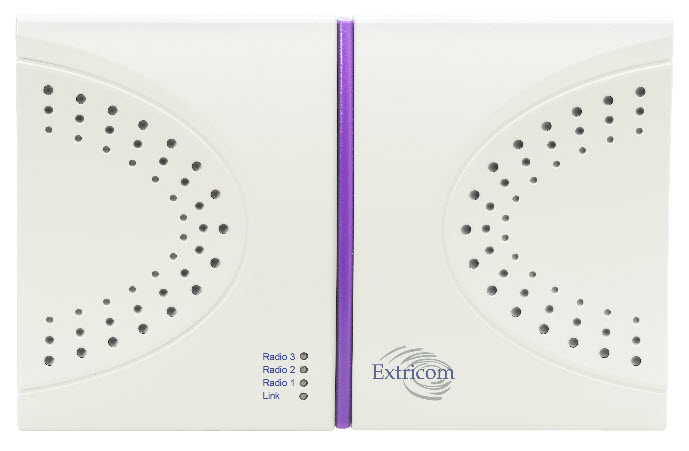

EXRP-30n 54 Mbit/s Power over Ethernet (PoE)
Model EXRP-30nPart no. AT-EXRP-30N-00EAN 897706001147
23 specifications
- Speed54 Mbit/s
- Weight420 g
- 2.4 GHzYes
- Antenna typeInternal
- Dimensions (WxDxH)195 x 45 x 125 mm
- Operating relative humidity (H-H)0 - 95%
Overview
- Speed
- 54 Mbit/s
- Weight
- 420 g
- 2.4 GHz
- Yes
- Antenna type
- Internal
- Dimensions (WxDxH)
- 195 x 45 x 125 mm
- Operating relative humidity (H-H)
- 0 - 95%
- Brand
- Allied Telesis
- Category
- Wireless Access Point
- Model
- EXRP-30n
- Part number
- AT-EXRP-30N-00
- EAN / UPC
- 897706001147
- Also known as
- Allied Telesis EXRP-30n 54 Mbit/s Power over Ethernet (PoE)
Specifications
23 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Channels quantity | 3 channels |
| MIMO | Yes |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antenna gain level (max) | 20 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 60950-1 EN 60950-1 IEC 60950-1 ANATEL Resolution 238/442/506 FCC Part 15 class B/C/E EN 301 489 EN 300 328 EN 301 893 VCCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 195 x 45 x 125 mm |
| Weight | 420 g |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Compliance industry standards | IEEE 802.11n/b/g/a |
| Frequency range | 5.47 - 5.825 MHz |
| Wireless technology | 802.11n/b/g/a |
| Connectivity LEDs | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -5 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
