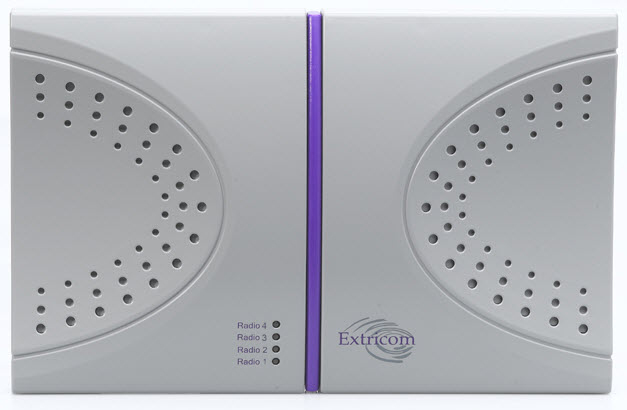

EXRP-20 54 Mbit/s Power over Ethernet (PoE)
Model EXRP-20Part no. EXRP-20-00EAN 897706001017
23 specifications
- Speed54 Mbit/s
- Weight400 g
- 2.4 GHzYes
- Antenna gain level (max)20 dBi
- Dimensions (WxDxH)195 x 45 x 125 mm
- Operating relative humidity (H-H)0 - 95%
Overview
- Speed
- 54 Mbit/s
- Weight
- 400 g
- 2.4 GHz
- Yes
- Antenna gain level (max)
- 20 dBi
- Dimensions (WxDxH)
- 195 x 45 x 125 mm
- Operating relative humidity (H-H)
- 0 - 95%
- Brand
- Allied Telesis
- Category
- Wireless Access Point
- Model
- EXRP-20
- Part number
- EXRP-20-00
- EAN / UPC
- 897706001017
- Also known as
- Allied Telesis EXRP-20 54 Mbit/s Power over Ethernet (PoE)
Specifications
23 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Frequency band | 2.4, 5 GHz |
| Channels quantity | 2 channels |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Design
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Internal | No |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 20 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 60950-1 EN 60950-1/301 489/300 328/301 893 IEC 60950-1 ANATEL Resolution 238/442/506 FCC Part 15 class B/C/E VCCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 195 x 45 x 125 mm |
| Weight | 400 g |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Compliance industry standards | IEEE 802.11b/g/a |
| Frequency range | 5.15 - 5.25 MHz |
| Operating temperature (T-T) | 23 - 131 °F |
| Wireless technology | 802.11b/g/a |
| Connectivity LEDs | 2 |
| Weight (imperial) | 0.408 kg (0.9 lbs) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | -5 - 55 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 90% |
