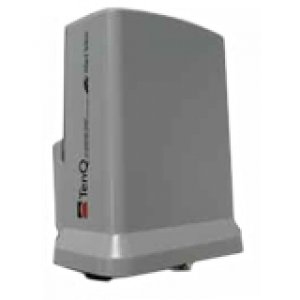

AT-WR4541A wireless access point 54 Mbit/s Power over Ethernet (PoE)
Model AT-WR4541A
24 specifications
- Speed54 Mbit/s
- ConnectivityRJ-45
- Weight450 g
- 5 GHzYes
- Antenna gain level (max)15 dBi
- Dimensions (WxDxH)133 x 86 x 160 mm
Overview
- Speed
- 54 Mbit/s
- Connectivity
- RJ-45
- Weight
- 450 g
- 5 GHz
- Yes
- Antenna gain level (max)
- 15 dBi
- Dimensions (WxDxH)
- 133 x 86 x 160 mm
- Brand
- Allied Telesis
- Category
- Wireless Access Point
- Model
- AT-WR4541A
- Part number
- AT-WR4541A
- Also known as
- Allied Telesis AT-WR4541A wireless access point 54 Mbit/s Power over Ethernet (PoE)
Specifications
24 specifications in 10 groups
Features
| Specification | Value |
|---|---|
| 5 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Frequency band | 4.9 - 5.8 GHz |
| Modulation | 16-QAM, 64-QAM, BPSK, OFDM, QPSK |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 128-bit WEP, 64-bit WEP, 802.1x RADIUS, WPA, WPA2 |
Protocols
| Specification | Value |
|---|---|
| DHCP server | Yes |
| DHCP client | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 7 W |
Antenna
| Specification | Value |
|---|---|
| Antenna gain level (max) | 15 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 133 x 86 x 160 mm |
| Weight | 450 g |
Other features
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -22 - 140 °F |
| Power LED | Yes |
| Safety | EC: EN 60950-1:2006 |
| Wireless technology | IEEE 802.11a |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 65 °C |
| Storage temperature (T-T) | -40 - 70 °C |
