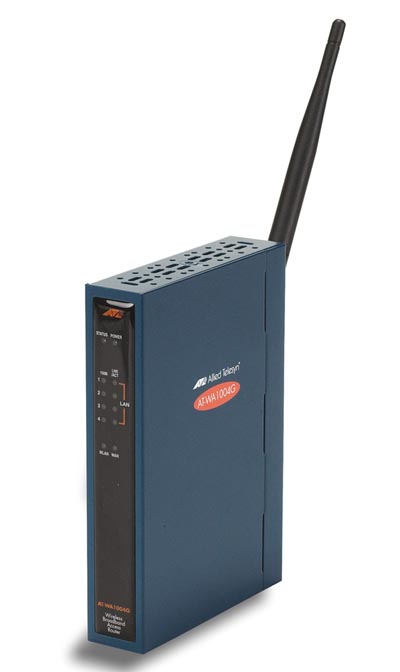

AT-WA1004G wireless access point
Model AT-WA1004G wireless access pointPart no. AT-WA1004G
18 specifications
- Speed54 Mbit/s
- ConnectivityIEEE 802.11g WLAN, JEIDA 4.2
- Weight243 g
- 2.4 GHzYes
- AC input voltage12 V
- LED indicatorsPower, Status, WAN, WLAN
Overview
- Speed
- 54 Mbit/s
- Connectivity
- IEEE 802.11g WLAN, JEIDA 4.2
- Weight
- 243 g
- 2.4 GHz
- Yes
- AC input voltage
- 12 V
- LED indicators
- Power, Status, WAN, WLAN
- Brand
- Allied Telesis
- Category
- Wireless Access Point
- Model
- AT-WA1004G wireless access point
- Part number
- AT-WA1004G
- Also known as
- Allied Telesis AT-WA1004G wireless access point 54 Mbit/s
Specifications
18 specifications in 9 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| Maximum data transfer rate | 54 Mbit/s |
| Frequency band | 2.4 - 2.4835 GHz |
Protocols
| Specification | Value |
|---|---|
| Management protocols | Web-based configuration,Web-based Firmware upgrade, Remote Management |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | IEEE 802.11g WLAN, JEIDA 4.2 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 12 V |
| Output power description | 13 dBm |
Design
| Specification | Value |
|---|---|
| LED indicators | Power, Status, WAN, WLAN |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antennas quantity | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 141 x 100 x 270 mm |
| Weight | 243 g |
Other features
| Specification | Value |
|---|---|
| Networking features | NAT, NAPT, PPP over Ethernet (PPPoE), PPTP, HTTP, DHCP,TCP/IP, UDP, PAP, CHAP, DNS relay, NTP, DDNS, RIP1 |
| Wireless technology | 802.11g, 802.11b |
| I/O ports | 4 10/100T LAN 1 10/100T WAN |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
