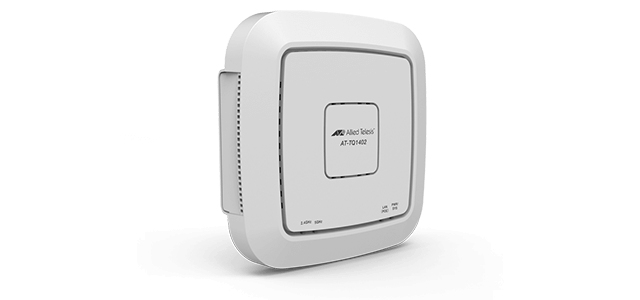

AT-TQm1402-00 1167 Mbit/s White Power over Ethernet (PoE)
Model AT-TQm1402-00Part no. 990-006555-00EAN 767035217239
43 specifications
- Speed1167 Mbit/s
- Weight430 g
- ColourWhite
- 2.4 GHzYes
- Ethernet LAN (RJ-45) ports1
- PlacementWall
Overview
- Speed
- 1167 Mbit/s
- Weight
- 430 g
- Colour
- White
- 2.4 GHz
- Yes
- Ethernet LAN (RJ-45) ports
- 1
- Placement
- Wall
- Brand
- Allied Telesis
- Category
- Wireless Access Point
- Model
- AT-TQm1402-00
- Part number
- 990-006555-00
- EAN / UPC
- 767035217239
- Also known as
- Allied Telesis AT-TQm1402-00 1167 Mbit/s White Power over Ethernet (PoE)
Specifications
43 specifications in 13 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 1167 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11i, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11v, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Flow control support | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, AES, HTTPS, SNMP, TKIP, WPA, WPA2 |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Hidden SSID |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Management features
| Specification | Value |
|---|---|
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC input frequency | 47-63 Hz |
| AC input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 2 A |
| Power consumption (typical) | 7.4 W |
| Power consumption (max) | 12 W |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
Antenna
| Specification | Value |
|---|---|
| Antenna type | Internal |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC CE RCM IMDA KC MIC BSMI/NCC OFCA SIRIM |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 163 mm |
| Depth | 165 mm |
| Height | 43 mm |
| Weight | 430 g |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
