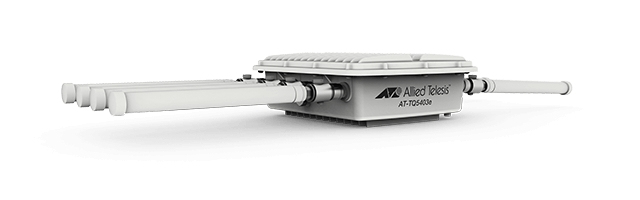

AT-TQ5403e-00 2133 Mbit/s White Power over Ethernet (PoE)
Model AT-TQ5403e-00Part no. 990-006376-00EAN 767035216720
33 specifications
- Speed2133 Mbit/s
- Weight4 kg
- ColourWhite
- 2.4 GHzYes
- Service Set Identifier (SSID) featuresHidden SSID
- Ethernet LAN (RJ-45) ports1
Overview
- Speed
- 2133 Mbit/s
- Weight
- 4 kg
- Colour
- White
- 2.4 GHz
- Yes
- Service Set Identifier (SSID) features
- Hidden SSID
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Allied Telesis
- Category
- Wireless Access Point
- Model
- AT-TQ5403e-00
- Part number
- 990-006376-00
- EAN / UPC
- 767035216720, 7670352167206
- Also known as
- Allied Telesis AT-TQ5403e-00 2133 Mbit/s White Power over Ethernet (PoE)
Specifications
33 specifications in 12 groups
Features
| Specification | Value |
|---|---|
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 2133 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
| Automatic channel selection | Yes |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| Fast roaming | Yes |
| VLAN support | Yes |
| Band steering | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 64-bit WEP, 128-bit WEP, AES, HTTPS, SNMP, SSID, TKIP, WPA, WPA-AES, WPA-Enterprise, WPA-TKIP, WPA2, WPA2-AES, WPA2-CCMP, WPA2-Enterprise, WPA2-TKIP |
| Service Set Identifier (SSID) features | Hidden SSID |
| Auto Wireless Distribution System (WDS) | Yes |
| Remote Authentication Dial-In User Service (RADIUS) | Yes |
Protocols
| Specification | Value |
|---|---|
| DHCP client | Yes |
Management features
| Specification | Value |
|---|---|
| Syslog | Yes |
| Firmware upgradeable | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
Design
| Specification | Value |
|---|---|
| Placement | Wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
Antenna
| Specification | Value |
|---|---|
| Antenna type | External |
| Antenna gain level (max) | 7.08 dBi |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC CE RCM IMDA KC MIC BSMI/NCC OFCA SIRIM |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 257 mm |
| Depth | 227 mm |
| Height | 90 mm |
| Weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
