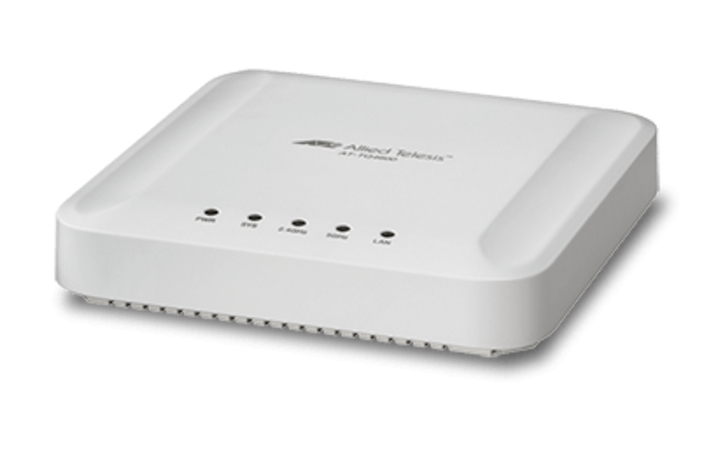

Allied Telesis AT-TQ4600 1509R

Allied Telesis AT-TQ4600 1509R

Model AT-TQ4600 1509RPart no. 1509REAN 4511427105491

35 specifications
  • Speed1750 Mbit/s
  • Weight476 g
  • ColourWhite
  • 2.4 GHzYes
  • Ethernet LAN (RJ-45) ports0
  • PlacementCeiling, Table, Wall
See all specifications

Overview

Speed
1750 Mbit/s
Weight
476 g
Colour
White
2.4 GHz
Yes
Ethernet LAN (RJ-45) ports
0
Placement
Ceiling, Table, Wall
Brand
Allied Telesis
Model
AT-TQ4600 1509R
Part number
1509R
EAN / UPC
4511427105491
Also known as
Allied Telesis AT-TQ4600 1509R 1750 Mbit/s White Power over Ethernet (PoE)

Specifications

35 specifications in 10 groups

Features

2.4 GHzYes
5 GHzYes
Maximum data transfer rate1750 Mbit/s
Wi-Fi data rate (max)1750 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.11g, IEEE 802.11h, IEEE 802.11i, IEEE 802.11n, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3at
VLAN supportYes
Quality of Service (QoS) supportYes

Security

Security algorithms128-bit AES, 802.1x RADIUS, EAP, PEAP, TKIP, WPA, WPA2-CCMP

Protocols

DHCP serverYes
DHCP clientYes

Management features

Web-based managementYes

Ports & interfaces

Ethernet LAN (RJ-45) ports0
USB 2.0 ports quantity0
WAN connectionEthernet (RJ-45)
DC-in jackYes

Power

Power over Ethernet (PoE)Yes
AC input frequency50 - 60 Hz
AC input voltage90 - 264 V
Power consumption (typical)10.9 W
Power consumption (max)16 W

Design

PlacementCeiling, Table, Wall
Product colourWhite
Cable lock slotYes
Cable lock slot typeKensington
LED indicatorsYes
InternalNo

Antenna

Antenna featuresIntegrated antenna
Antenna gain level (max)4 dBi

Weight & dimensions

Width170 mm
Depth170 mm
Height35 mm
Weight476 g

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
