ZVC840 video conferencing system Ethernet LAN Group video conferencing system
Model ZVC840Part no. 1109932EAN 6938818311824
55 specifications
- Display20.3 cm (8")
- Resolution1280 x 800 pixels
- ProcessorIntel® Core™ i5
- Memory8000 MB
- Storage128 GB
- TypeGroup video conferencing system
Overview
- Display
- 20.3 cm (8")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8000 MB
- Storage
- 128 GB
- Type
- Group video conferencing system
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- ZVC840
- Part numbers
- 1109932, 1109921, 1109933
- EAN / UPC
- 6938818311824, 6938818305908, 6938818307599, 6938818311848
- Also known as
- Yealink ZVC840 video conferencing system Ethernet LAN Group video conferencing system
Specifications
55 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Bluetooth | Yes |
| Product colour | Black, Grey |
| Auto framing | Yes |
| Signal-to-Noise Ratio (SNR) | 70 dB |
| Pan range | 0 - 200° |
| Tilt angle range | 0 - 130° |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported video modes | 2160p |
| Supported graphics resolutions | 3840 x 2160 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Frequency range | 100 - 20000 Hz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8000 MB |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI output ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Line-in | Yes |
| Line-out | Yes |
| RJ-45 ports quantity (speaker) | 1 |
| Reset slot | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
Camera
| Specification | Value |
|---|---|
| Optical zoom | 12x |
| Diagonal field of view | 80° |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | IPS |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Microphone
| Specification | Value |
|---|---|
| Microphone mute | Yes |
| Number of microphone arrays | 3 |
Computer system
| Specification | Value |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Windows operating systems supported | Windows 10 IoT Enterprise |
Features
| Specification | Value |
|---|---|
| Motion sensor | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 10.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 600 mm |
| Package depth | 545 mm |
| Package height | 285 mm |
| Package weight | 12 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of microphones included | 3 |
| Speaker included | Yes |
| Microphone included | Yes |

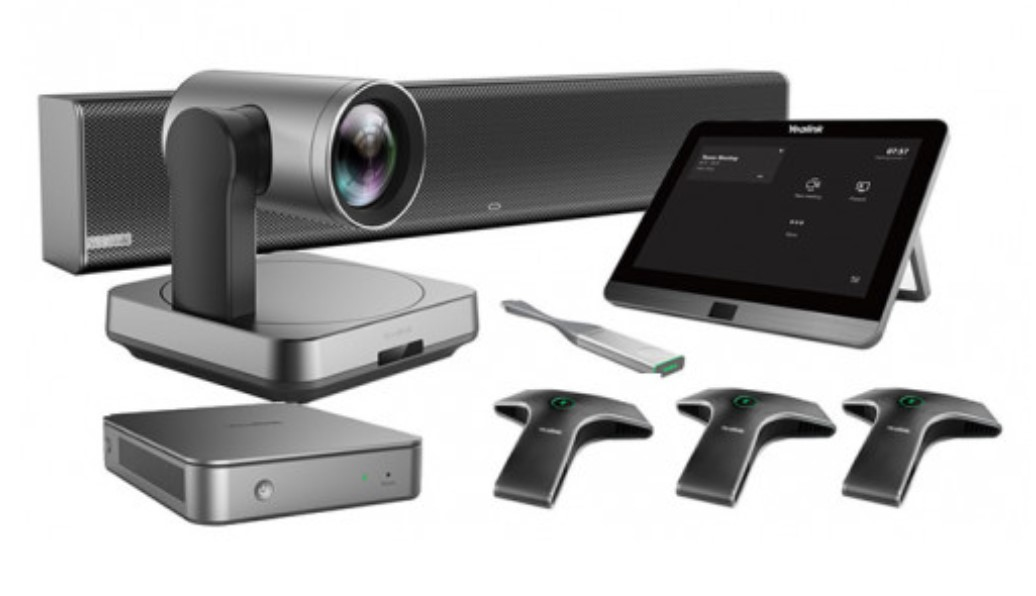

| Packaging content | MCore Mini-PC • MTouch II touch panel • UVC84 USB PTZ camera • Yealink soundbar • 3 x Yealink VCM34 microphone |
