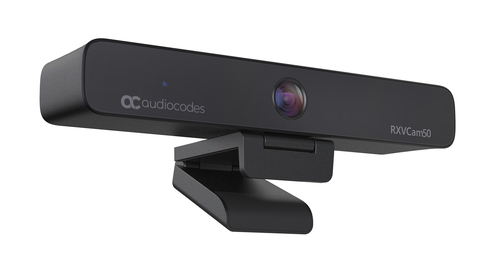

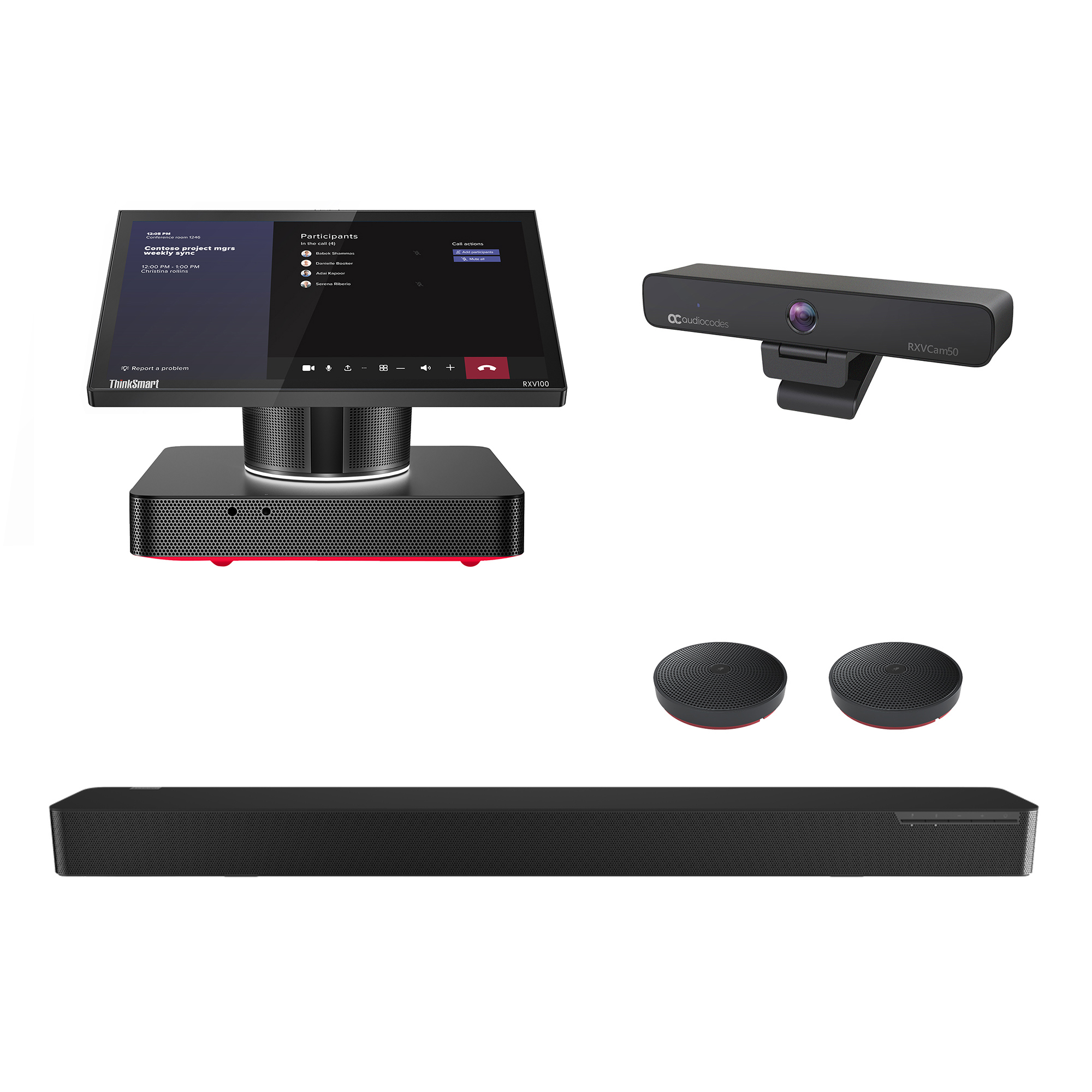

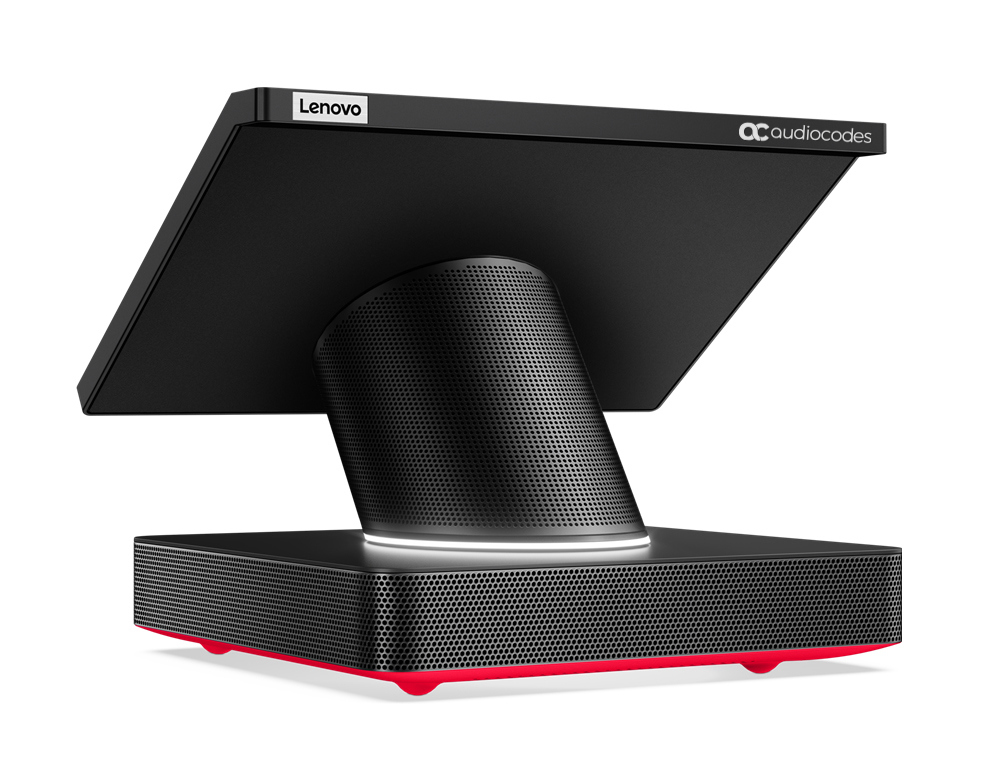

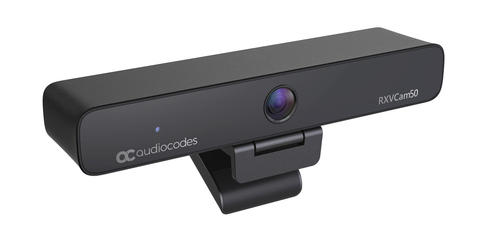

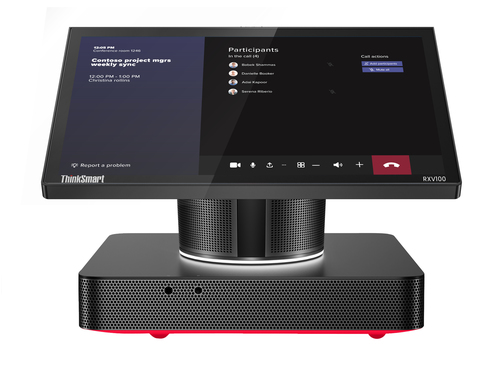

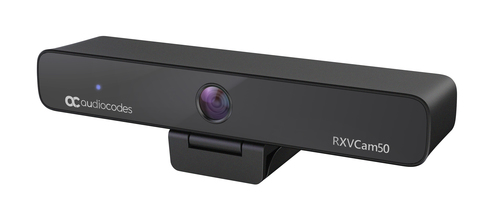

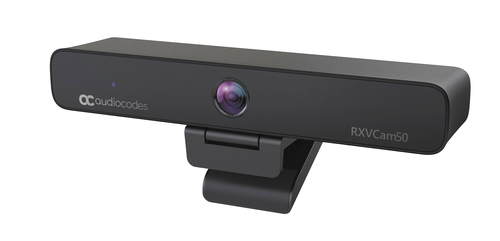

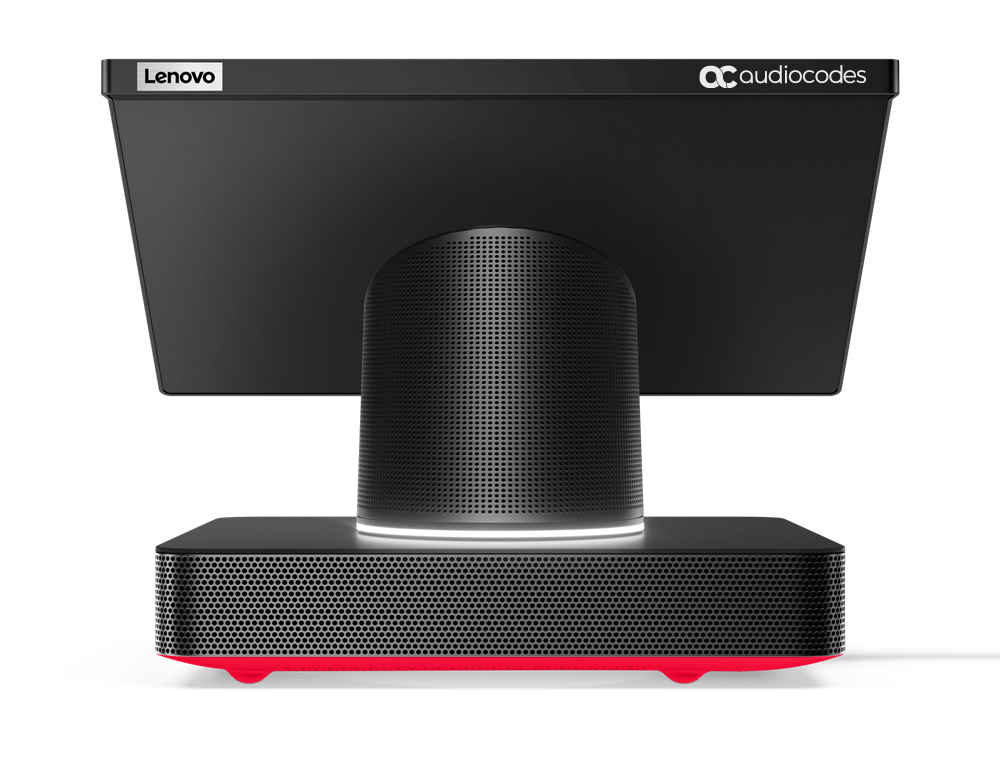

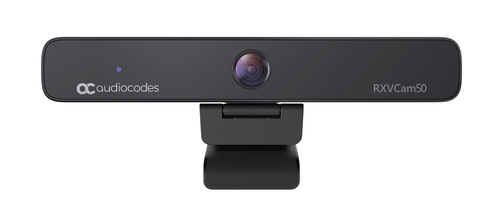

RXV100 Hub with Audio bundled with RXVCam50M and RX40 (Audio Bar with satellite speakers) for use up to large rooms. Compatible with Teams or Zoom
Model RXV100-B42EAN 5715328312807
77 specifications
- Display25.6 cm (10.1")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory8192 MB
- Storage128 GB
- TypeMultimedia congress terminal
Overview
- Display
- 25.6 cm (10.1")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8192 MB
- Storage
- 128 GB
- Type
- Multimedia congress terminal
- Brand
- AudioCodes
- Category
- Video Conferencing System
- Model
- RXV100-B42
- Part number
- RXV100-B42
- EAN / UPC
- 5715328312807
- Also known as
- AudioCodes RXV100 Hub with Audio bundled with RXVCam50M and RX40 (Audio Bar with satellite speakers) for use up to large rooms. Compatible with Teams or Zoom
Specifications
77 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Product type | Multimedia congress terminal |
| Number of persons | 16 person(s) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Product colour | Black |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| Supported video modes | 480p, 720p, 1080p |
| Supported graphics resolutions | 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Aspect ratio | 16:10 |
| Video formats supported | H.264, H.265, MJPG, YUY2 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 4 |
| RMS rated power | 6 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8192 MB |
| Internal memory type | DDR4 |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Zoom capability | Yes |
| Digital zoom | 10x |
| Effective sensor resolution | 8.28 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.5" |
| Horizontal field of view | 120° |
| Vertical field of view | 85° |
| Diagonal field of view | 126° |
| Minimum illumination | 0.1 lx |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display diagonal | 25.6 cm (10.1") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
| Display brightness | 320 cd/m² |
| Anti-glare screen | Yes |
Microphone
| Specification | Value |
|---|---|
| Microphone direction type | Omnidirectional |
| Number of microphones | 4 |
Features
| Specification | Value |
|---|---|
| Telepresence | No |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Computer system
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8365U |
| Operating system installed | Windows 10 IoT Enterprise SAC |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina |
| Other operating systems supported | Linux |
System requirements
| Specification | Value |
|---|---|
| Minimum RAM | 2048 MB |
| Minimum processor speed | 2.4 GHz |
| Minimum system requirements | Intel Core 2 Duo |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | -10 - 50 °C |
| Storage temperature (T-T) | -10 - 60 °C |
Power
| Specification | Value |
|---|---|
| Current | 1 A |
| Operating voltage (microphone) | 5 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Speaker dimensions (WxDxH) | 800 x 56 x 90 mm |
| Speaker weight | 3.6 kg |
| Camera dimensions (WxDxH) | 220 x 93.75 x 56.5 mm |
| Width | 240 mm |
| Depth | 200 mm |
| Height | 185.3 mm |
| Weight | 2.47 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
| Remote control included | Yes |
