AudioCodes RXV200 for Microsoft Teams room, mid to Large size meeting room. With MDEP. Bundle 70

RXV200 for Microsoft Teams room, mid to Large size meeting room. With MDEP. Bundle 70

Model RXV200-B70

82 specifications

Display20.3 cm (8")
Resolution1280 x 800 pixels
ProcessorSnapdragon
TypeGroup video conferencing system
OSAndroid
ColourBlack

See all specifications

Overview

Display: 20.3 cm (8")
Resolution: 1280 x 800 pixels
Processor: Snapdragon
Type: Group video conferencing system
OS: Android
Colour: Black

Brand: AudioCodes
Category: Video Conferencing System
Model: RXV200-B70
Part number: RXV200-B70
Also known as: AudioCodes RXV200 for Microsoft Teams room, mid to Large size meeting room. With MDEP. Bundle 70

Specifications

82 specifications in 15 groups

Performance

Specification	Value
Product type	Group video conferencing system
Number of persons	18 person(s)
Number of cameras	1
Bluetooth	Yes
Bluetooth version	5.0
Product colour	Black
Signal-to-Noise Ratio (SNR)	55 dB
Pan range	-170 - 170°
Tilt angle range	-90 - 90°
PTZ control	Yes

Video

Specification	Value
HD type	4K Ultra HD
Maximum video resolution	3840 x 2160 pixels
Supported graphics resolutions	640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Aspect ratio	16:9
Resolution at capture speed	640x480@25fps, 640x480@30fps, 1280x720@25fps, 1280x720@30fps, 1920x1080@25fps, 1920x1080@30fps, 3840x2160@30fps
Video formats supported	H.264, MJPG, YUV

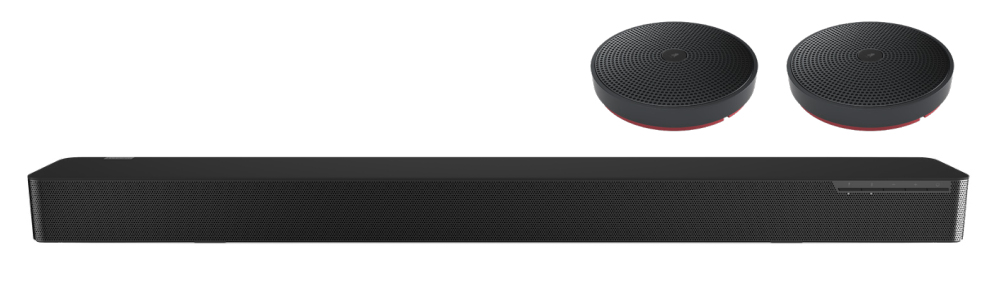

Audio

Specification	Value
Built-in speaker(s)	Yes
Number of speakers	1
Frequency range	250 - 20000 Hz
Automatic gain control	Yes
Microphone pick-up range	8 m
RMS rated power	40 W

Ports & interfaces

Specification	Value
USB connector type	USB Type-A, USB Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1

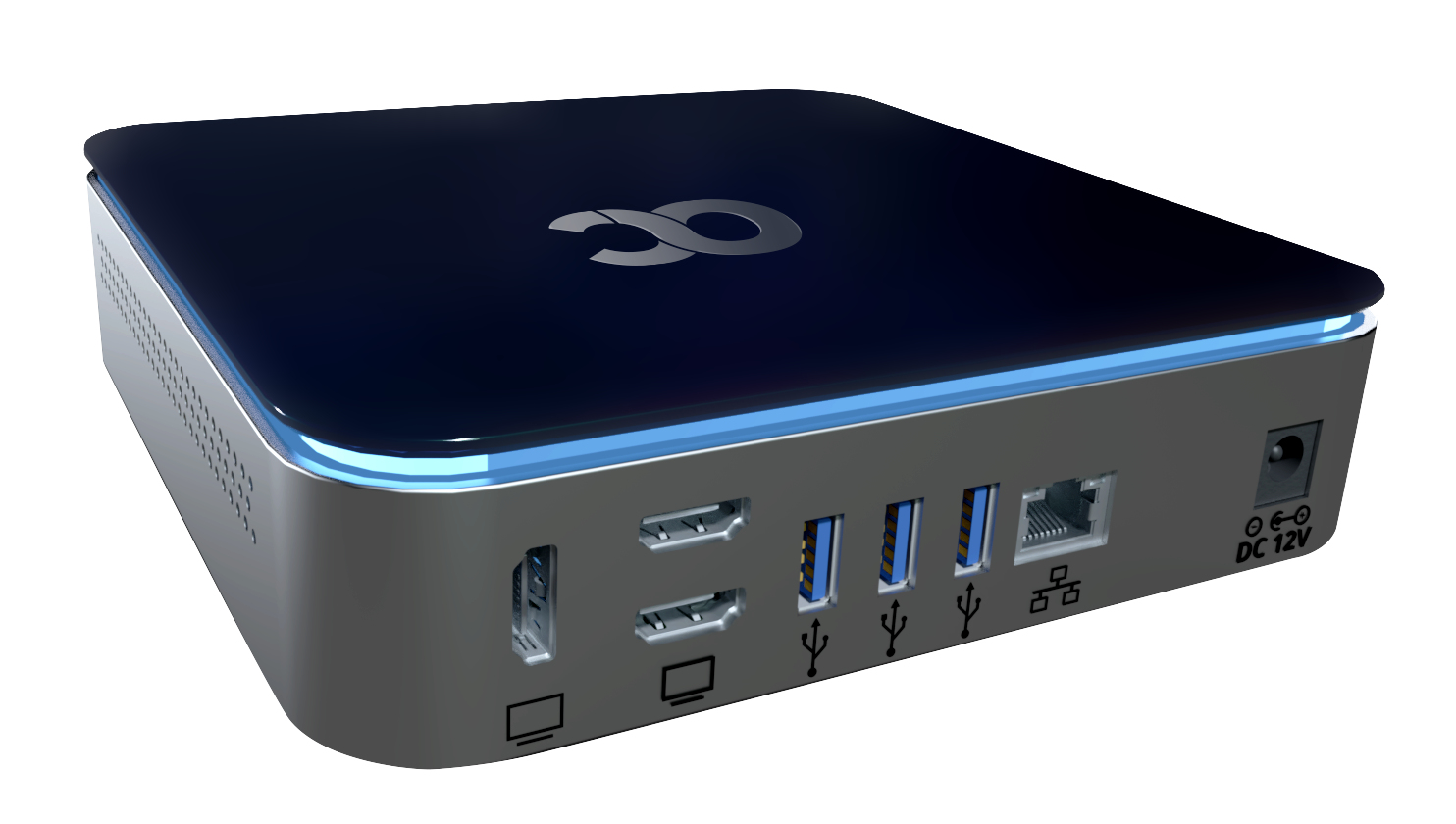

Interface module

Specification	Value
Interface module HDMI ports quantity	3
Interface module HDMI input ports quantity	1
Interface module HDMI output ports quantity	2
Interface module Ethernet LAN (RJ-45) ports	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Networking standards	IEEE 802.1Q, IEEE 802.1p
Supported network protocols	TCP/IP (IPv4)
Quality of Service (QoS) support	Yes
VLAN support	Yes
Security algorithms	256-bit AES

Camera

Specification	Value
Megapixel (approx.)	8.42 MP
Camera type	Single camera
Zoom capability	Yes
Optical zoom	12x
Digital zoom	16x
Sensor type	CMOS
Image sensor size	1/1.8"
Focal length range	4.8 ~ 57.8 mm
Field of view (wide)	107°
3D NR (Noise Reduction)	Yes
Camera privacy shutter	Yes
Camera shutter speed	1/30 ~ 1/10000 s
Minimum illumination	0.5 lx
White balance	Auto, Indoor, Manual, Outdoor

Display

Specification	Value
Built-in display	Yes
Display diagonal	20.3 cm (8")
Display resolution	1280 x 800 pixels
Touchscreen	Yes

Microphone

Specification	Value
Microphone colour	Black
Microphone sensitivity	38 dB
Microphone frequency	300 - 8000 Hz
Microphone mute	Yes

Computer system

Specification	Value
Computer system type	Mini PC
Processor family	Snapdragon
Processor model	QCS8250
Operating system installed	Android

Features

Specification	Value
Cable lock slot	Yes
Cable lock slot type	Kensington

Operational conditions

Specification	Value
Operating relative humidity (H-H)	20 - 80%
Operating temperature (T-T)	-10 - 50 °C
Storage relative humidity (H-H)	20 - 90%
Storage temperature (T-T)	-10 - 60 °C

Power

Specification	Value
Power source type	DC
Current	3 A
DC input voltage	12 V

Weight & dimensions

Specification	Value
Interface module dimensions (W x D x H)	170 x 170 x 41.3 mm
Interface module weight	750 g
Speaker dimensions (WxDxH)	800 x 56 x 90 mm
Speaker weight	3.6 kg
Camera dimensions (WxDxH)	295 x 245 x 240 mm
Camera weight	2.3 kg

Packaging content

Specification	Value
Cables included	LAN (RJ-45), USB Type-C
AC adapter included	Yes
Packaging content	✓ RXV200 ✓ RX40 ✓ RXVCam70 ✓ RX-PAD ✓ 12V 3A Power Adapter (100-240V) ✓ USB Type C cable ✓ Ethernet cable
