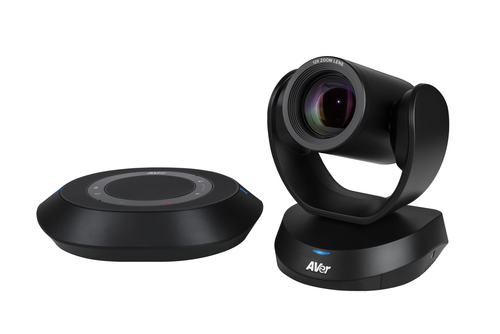

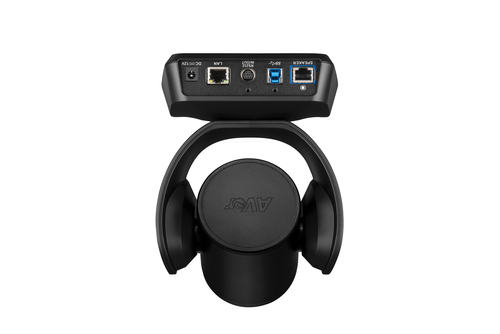

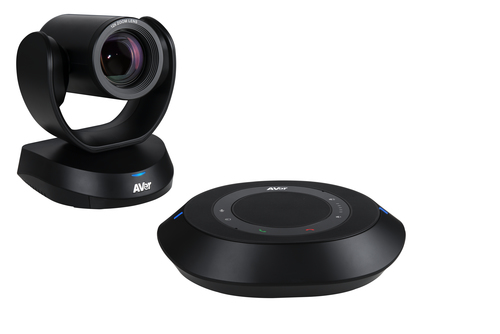

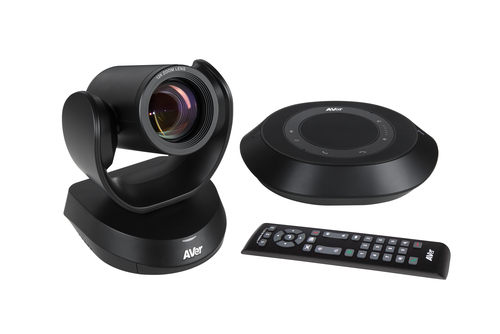

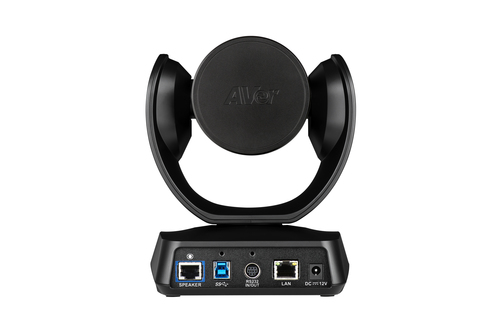

AVer VC520 Pro
AVer

VC520 Pro

Model VC520 ProPart no. 61U0100000ACEAN 4719552125814

86 specifications
  • TypeGroup video conferencing system
  • Weight2.3 kg
  • ColourBlack
  • HD typeFull HD
  • Built-in speaker(s)Yes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
See all specifications

Overview

Type
Group video conferencing system
Weight
2.3 kg
Colour
Black
HD type
Full HD
Built-in speaker(s)
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Brand
AVer
Model
VC520 Pro
Part number
61U0100000AC
EAN / UPC
4719552125814
Also known as
AVer VC520 Pro video conferencing system 2 MP Ethernet LAN Group video conferencing system

Specifications

86 specifications in 16 groups

Performance

Product typeGroup video conferencing system
Product colourBlack
Pan range-170 - 170°
Tilt angle range-30 - 90°
PTZ controlYes
Tripod mounting supportedYes

Video

HD typeFull HD
Supported video modes240p, 360p, 480p, 540p, 720p, 900p, 1080p
Supported graphics resolutions320 x 180, 640 x 360, 800 x 448, 848 x 480, 960 x 540, 1280 x 720 (HD 720), 1600 x 900, 1920 x 1080 (HD 1080)
Maximum frame rate60 fps
Video formats supportedH.264, M-JPEG, YUV

Audio

Built-in speaker(s)Yes
Audio formats supportedAAC-LC
Echo cancellationYes
Noise reductionYes
RMS rated power6 W

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
Ethernet LAN (RJ-45) ports2
DC-in jackYes
AUX in (speaker)Yes
Line-out (speaker)Yes
RJ-45 ports quantity (speaker)2
RS-232 ports1

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Supported network protocolsRTSP, RTMP
Web-based managementYes

Camera

Megapixel (approx.)2 MP
Optical zoom12x
Combined zoom18x
Focal length range (normal mode)3.9 - 47.3 mm
Field of view (FOV) angle82°
Wide Dynamic Range (WDR)Yes
Number of camera presets10
Remote control interfaceIR wireless/RS-232
Aperture range (F-F)1.8 - 2.8
Closest focusing distance1.5 m
White balanceAuto, Manual
Back Light Compensation (BLC)Yes

Microphone

Sound pressure level (max)90 dB
Number of microphones2

Features

Mounting typeStand
Cable lock slotYes
Cable lock slot typeKensington

Computer system

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris
Mac operating systems supportedMac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur
Mobile operating systems supportedAndroid 6.0, Android 7.0, Android 7.1, Android 7.1.2, Android 8.0, Android 9.0
Applications supportedZoom, Skype for Business, Skype, Google Meet, I ntel® Unite, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting, TrueConf, Vidyo, Adobe Connect, Cisco Webex, Fuze, GoToMeeting, Microsoft Lync, vMix, WebRTC, Wirecast, XSplit
Other operating systems supportedChromeOS
Firmware upgradeableYes

Logistics data

Country of originTaiwan
Harmonized System (HS) code8517691000
Products per master (outer) case2 pc(s)
Products per pallet42 pc(s)

System requirements

Minimum system requirements- 3.2 GHz Intel Core i5-4460 - 4 GB RAM

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)20 - 80%
Storage temperature (T-T)-20 - 60 °C

Power

AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Current5 A
DC input voltage12 V

Weight & dimensions

Remote control dimensions (W x H x D)200 x 50 x 21 mm
Remote control weight90 g
Speaker dimensions (WxDxH)220 x 181.5 x 49.5 mm
Speaker weight850 g
Camera dimensions (WxDxH)142.7 x 153 x 182 mm
Camera weight1.45 kg
Width259 mm
Depth259 mm
Height349 mm
Weight2.3 kg

Packaging data

Package width270 mm
Package depth526 mm
Package height372 mm
Package weight5.4 kg

Packaging content

Cables includedAC, Audio (3.5mm), LAN (RJ-45), USB
Wall mounting kitYes
AC adapter includedYes
Mounting kitYes
Speaker includedYes
Warranty cardYes
Remote control includedYes
Screws includedYes
User guideYes
