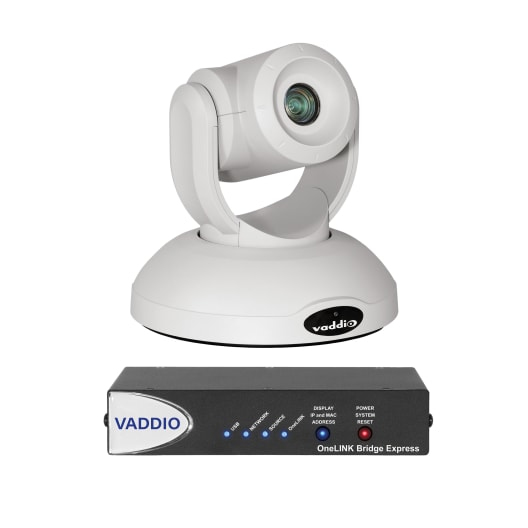

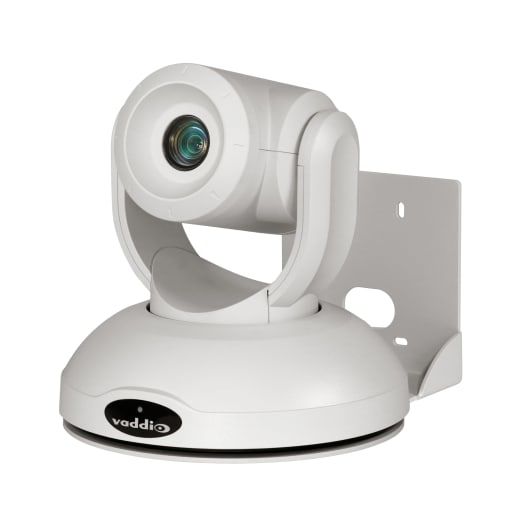

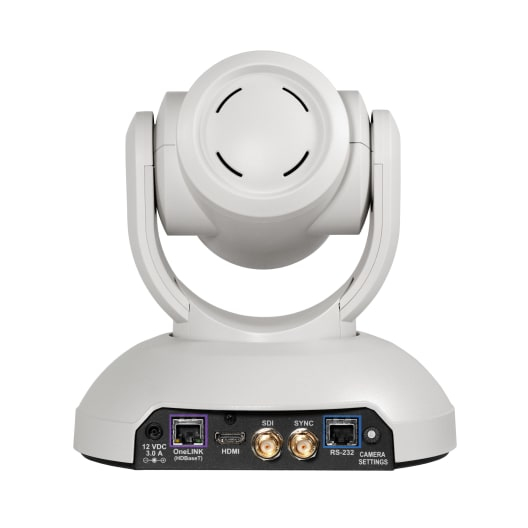

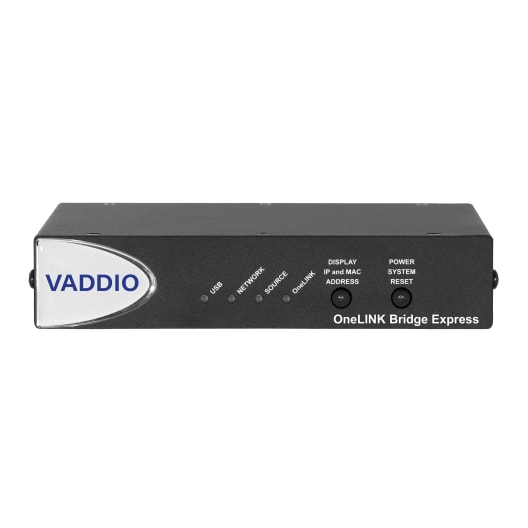

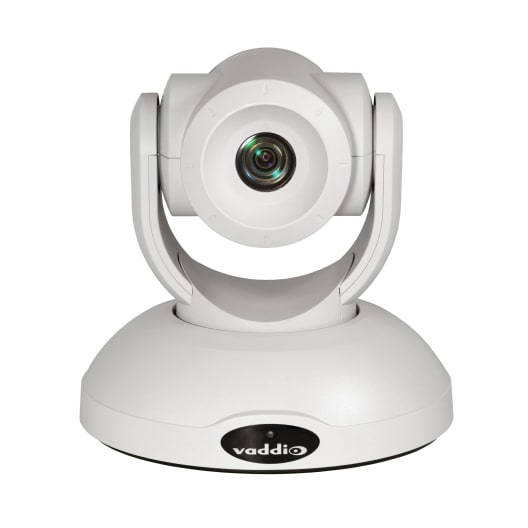

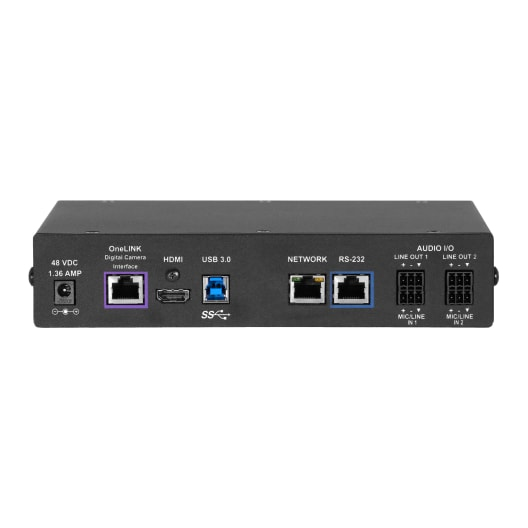

RoboSHOT 40 UHD OneLINK Bridge Express System
Model RoboSHOT 40 UHD OneLINK Bridge Express SystemPart no. 999-9952-271WEAN 840077507718
78 specifications
- ColourBlack, White
- Number of persons1 person(s)
- HD type4K Ultra HD
- Noise reductionYes
- HDMI ports quantity1
- Megapixel (approx.)8.57 MP
Overview
- Colour
- Black, White
- Number of persons
- 1 person(s)
- HD type
- 4K Ultra HD
- Noise reduction
- Yes
- HDMI ports quantity
- 1
- Megapixel (approx.)
- 8.57 MP
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- RoboSHOT 40 UHD OneLINK Bridge Express System
- Part numbers
- 999-9952-271W, 999-9952-271
- EAN / UPC
- 840077507718, 840077507701
- Also known as
- Vaddio RoboSHOT 40 UHD OneLINK Bridge Express System
Specifications
78 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Product type | Personal video conferencing system |
| Number of persons | 1 person(s) |
| Number of cameras | 1 |
| Product colour | Black, White |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Wall mountable | Yes |
| Pan range | -160 - 160° |
| Pan speed range | 0.35 - 120 °/sec |
| Tilt angle range | -30 - 90° |
| Tilt speed range | 0.35 - 120 °/sec |
| PTZ control | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported video modes | 1080p, 720p, 2160p |
| Maximum frame rate | 59.94 fps |
| Aspect ratio | 3:2, 16:9, 4:3 |
| Video formats supported | H.264 |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| 3G-SDI output | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Video resolution rotary switch | Yes |
| DC-in jack | Yes |
| RS-232 ports | 1 |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI output ports quantity | 1 |
| Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Interface module RS-232 ports quantity | 1 |
| Interface module RJ-45 ports quantity | 2 |
| Interface module line-in ports quantity | 2 |
| Interface module line-out ports quantity | 2 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Web-based management | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8.57 MP |
| Camera type | Single camera |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Digital zoom | 30x |
| Effective sensor resolution | 8.51 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.5" |
| Focal length range | 4.4 - 88.4 mm |
| Field of view (tele) | 2.05° |
| Field of view (wide) | 70.2° |
| Focus adjustment | Auto/Manual |
| Wide Dynamic Range (WDR) | Yes |
| Number of camera presets | 16 |
| Remote control interface | IR wireless/RS-232 |
| Recommended illumination range | 1.6 - 100 lx |
| Aperture range (F-F) | 2 - 3.8 |
| Aperture number of steps | 16 |
| White balance | ATW, Indoor, Outdoor, Auto, Manual, One push |
| Closest focusing distance (wide) | 0.08 m |
| Closest focusing distance (tele) | 0.8 m |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto/Manual |
Features
| Specification | Value |
|---|---|
| Maximum operating distance | 100 m |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC output voltage | 12 V |
| DC output current | 3 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE |
| Certification | FCC, TAA |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 213 x 152 x 44 mm |
| Interface module weight | 1.5 kg |
| Camera dimensions (WxDxH) | 203 x 145 x 200 mm |
| Camera weight | 2.7 kg |
Packaging content
| Specification | Value |
|---|---|
| External interface module included | Yes |
| Cables included | USB Type-A to USB Type-B, AC |
| Wall mounting kit | Yes |
| AC adapter included | Yes |
| Camera included | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
