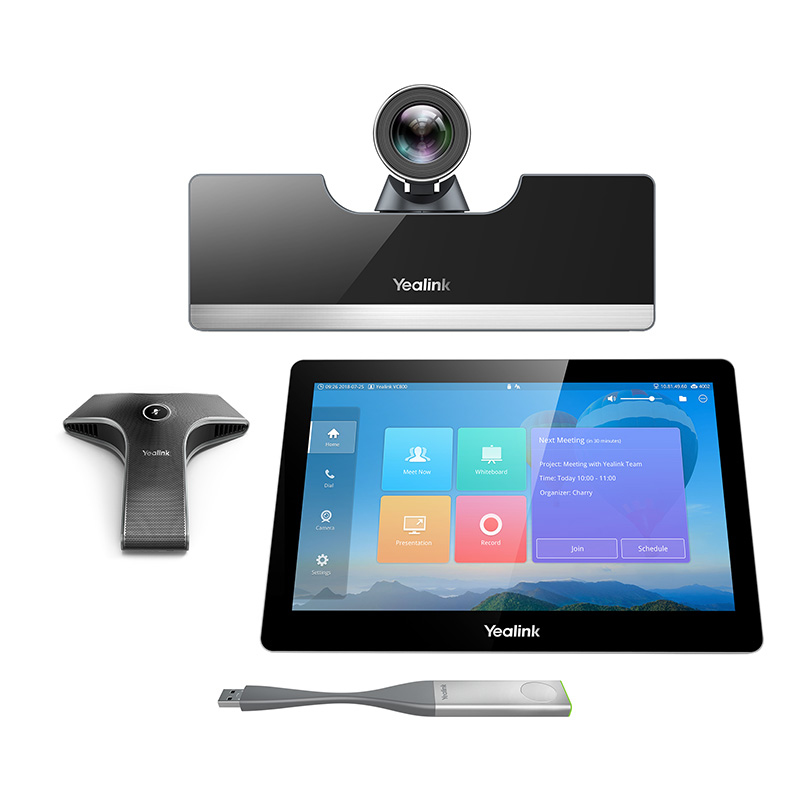

Yealink VC500 (VCM/CTP/WP)
Yealink

VC500 (VCM/CTP/WP)

Model VC500 (VCM/CTP/WP)EAN 6938818304079

73 specifications
  • Display33.8 cm (13.3")
  • Resolution1920 x 1080 pixels
  • TypeGroup video conferencing system
  • Weight6.6 kg
  • ColourSilver
  • HD typeFull HD
See all specifications

Overview

Display
33.8 cm (13.3")
Resolution
1920 x 1080 pixels
Type
Group video conferencing system
Weight
6.6 kg
Colour
Silver
HD type
Full HD
Brand
Yealink
Model
VC500 (VCM/CTP/WP)
Part number
VC500 (VCM/CTP/WP)
EAN / UPC
6938818304079
Also known as
Yealink VC500 (VCM/CTP/WP) video conferencing system 2 MP Ethernet LAN Group video conferencing system

Specifications

73 specifications in 16 groups

Performance

Product typeGroup video conferencing system
Product colourSilver
Pan range-30 - 30°
Tilt angle range-20 - 20°
PTZ controlYes

Video

HD typeFull HD
Maximum video resolution1920 x 1080 pixels
HD-ReadyYes
Supported video modes1080p
Supported graphics resolutions1920 x 1080 (HD 1080)
Maximum frame rate60 fps
Resolution at capture speed1920x1080@60fps
Video formats supportedH.263, H.263+, H.264, H.265, HEVC
Call recordingYes
Picture-in-PictureYes

Audio

Audio codecsARES
Audio formats supportedOPUS
Automatic gain controlYes
Echo cancellationYes
Microphone pick-up range6.1 m
Noise reductionYes
Voice codecsAJB, CNG, G.711, G.722.1, G.722.1C, PLC

Ports & interfaces

HDMI output ports quantity2
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Reset slotYes

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Networking standardsIEEE 802.1p, IEEE 802.1x
VLAN supportYes
Security algorithms256-bit AES, HTTPS, SRTP, TLS

Camera

Megapixel (approx.)2 MP
Camera typeSingle camera
Optical zoom5x
Horizontal field of view83°
Vertical field of view52°
Communication protocolH.323/SIP • Dual stream protocol: H.239 (H.323)/BFCP (SIP) • FECC: H.224/H.281, Sony VISCA and PELCO D/P • H.323 protocol suite: H.245, H.225, H.235, H.241 • Gatekeeper account and SIP account

Display

DisplayIPS
Display diagonal33.8 cm (13.3")
Display resolution1920 x 1080 pixels
TouchscreenYes
Touchscreen typeCapacitive

Microphone

Microphone colourGrey
Microphone muteYes
Number of microphone arrays3

Features

Cable lock slotYes

Sustainability

Sustainability complianceYes

Operational conditions

Operating relative humidity (H-H)10 - 95%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-30 - 70 °C

Power

Power source typeAC
AC input voltage100 - 240 V
DC input voltage48 V
DC output current0.7 A
Power consumption (idle)7.8 W
Power consumption (max)11.8 W
Power consumption (typical)8 W

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), REACH, RoHS

Weight & dimensions

Microphone dimensions (WxHxD)169 x 171.5 x 37.5 mm
Remote control dimensions (W x H x D)190 x 55 x 24 mm
Camera dimensions (WxDxH)300 x 99 x 165.3 mm
Weight6.6 kg

Packaging data

Package width385 mm
Package depth290 mm
Package height245 mm
Package weight7.8 kg

Packaging content

Number of microphones included1
Wall mounting kitYes
AC adapter includedYes
Camera includedYes
Microphone includedYes
Remote control includedYes
Packaging contentVC500 Pro Codec, CTP20 collocation touch panel, one VCM34 array microphone, WPP20, WF50 Wi-Fi dongle, VCR11 remote control, power adapter and cables
