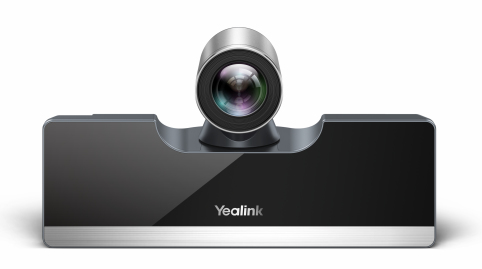

Yealink VC500 Pro: Full Specifications

Overview

Type: Video conferencing codec
Colour: Black, Silver
HD type: Full HD
Frequency range: 8000 - 48000 Hz
HDMI ports quantity: 2
Ethernet LAN: Yes

Brand: Yealink
Category: Video Conferencing System
Model: VC500 Pro
Part number: VC500 PRO CODEC ONLY
Also known as: Yealink VC500 Pro video conferencing system Ethernet LAN Video conferencing codec

Specifications

38 specifications in 12 groups

Performance

Specification	Value
Product type	Video conferencing codec
Product colour	Black, Silver
Pan range	-30 - 30°
Tilt angle range	-20 - 20°
PTZ control	Yes

Video

Specification	Value
HD type	Full HD
Supported video modes	480p, 540p, 720p, 1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Maximum frame rate	60 fps
Call recording	Yes
Picture-in-Picture	Yes
Video codecs	H.265/HEVC, H.264 High Profile, H.264, H.263

Audio

Specification	Value
Frequency range	8000 - 48000 Hz
Voice codecs	AJB, CNG, G.711, G.722.1, G.722.1C, PLC

Ports & interfaces

Specification	Value
HDMI ports quantity	2
USB connector type	USB Type-A
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Supported network protocols	IPv4, IPv6, VLAN, H.323, SIP, IEEE802.1X, LLDP-MED
Security algorithms	128-bit AES, SRTP
Web-based management	Yes
Management protocols	HTTP/HTTPS

Camera

Specification	Value
Optical zoom	5x
Horizontal field of view	83°

Microphone

Specification	Value
Microphone mute	Yes

Features

Specification	Value
Cable lock slot	Yes

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 95%
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-30 - 70 °C

Power

Specification	Value
AC input voltage	100 - 240 V
Current	0.7 A
DC input voltage	48 V

Certificates

Specification	Value
Compliance certificates	REACH, RoHS
Certification	CE, FCC, ISO 9001

Weight & dimensions

Specification	Value
Camera dimensions (WxDxH)	300 x 99 x 165.3 mm
