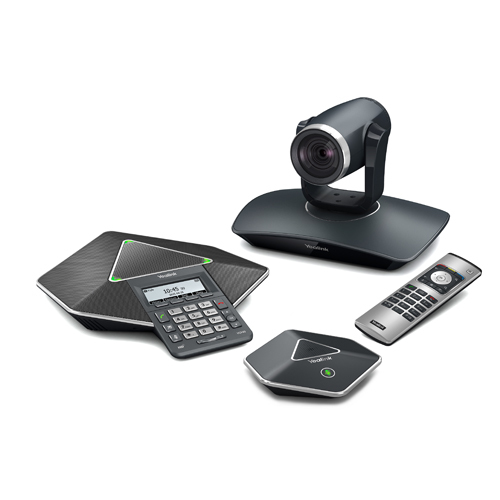

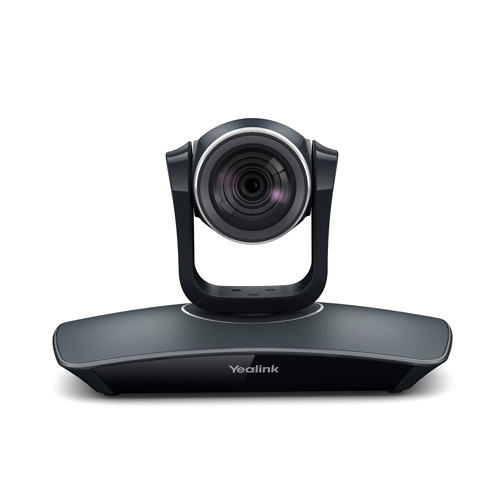

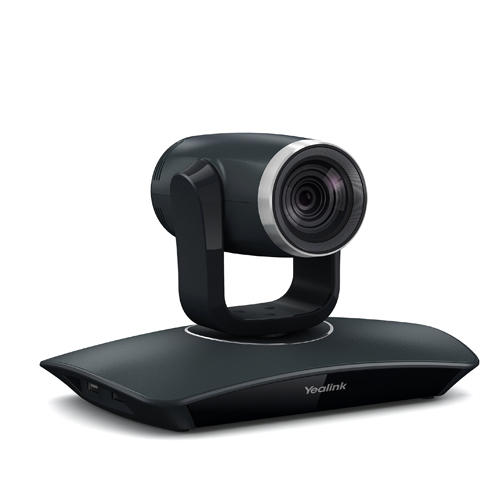

VC110 video conferencing system Ethernet LAN
Model VC110Part no. 1203600EAN 6938818301221
38 specifications
- Pan range-100 - 100°
- Supported video modes720p, 1080p
- Voice codecsG.711a, G.722, G.722.1, G.722.1C
- VGA (D-Sub) ports quantity1
- Ethernet LANYes
- Digital zoom4x
Overview
- Pan range
- -100 - 100°
- Supported video modes
- 720p, 1080p
- Voice codecs
- G.711a, G.722, G.722.1, G.722.1C
- VGA (D-Sub) ports quantity
- 1
- Ethernet LAN
- Yes
- Digital zoom
- 4x
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- VC110
- Part number
- 1203600
- EAN / UPC
- 6938818301221
- Also known as
- Yealink VC110 video conferencing system Ethernet LAN
Specifications
38 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Pan range | -100 - 100° |
| Tilt angle range | -30 - 30° |
| PTZ control | Yes |
| Rack mounting | Yes |
Video
| Specification | Value |
|---|---|
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 352 x 288, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| Video formats supported | H.263, H.264 |
| Video codecs | H.264, H.263 |
Audio
| Specification | Value |
|---|---|
| Voice codecs | G.711a, G.722, G.722.1, G.722.1C |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| DVI-I ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Supported network protocols | TCP/IP (IPv4), DHCP/ stastic IP, HTTP/ HTTPS, SRTP/TLS, IEEE802.1X, LLDP-MED, VLAN |
| Security algorithms | 128-bit AES, HTTPS, SRTP, SSL/TLS |
Camera
| Specification | Value |
|---|---|
| Digital zoom | 4x |
| Focus adjustment | Auto |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
Power
| Specification | Value |
|---|---|
| Current | 2 A |
| Power consumption (max) | 30 W |
| Power consumption (typical) | 24 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 234.6 mm |
| Depth | 151.5 mm |
| Height | 161 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 432 mm |
| Package depth | 318 mm |
| Package height | 274 mm |
| Package weight | 5.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Camera included | Yes |
| Remote control included | Yes |
