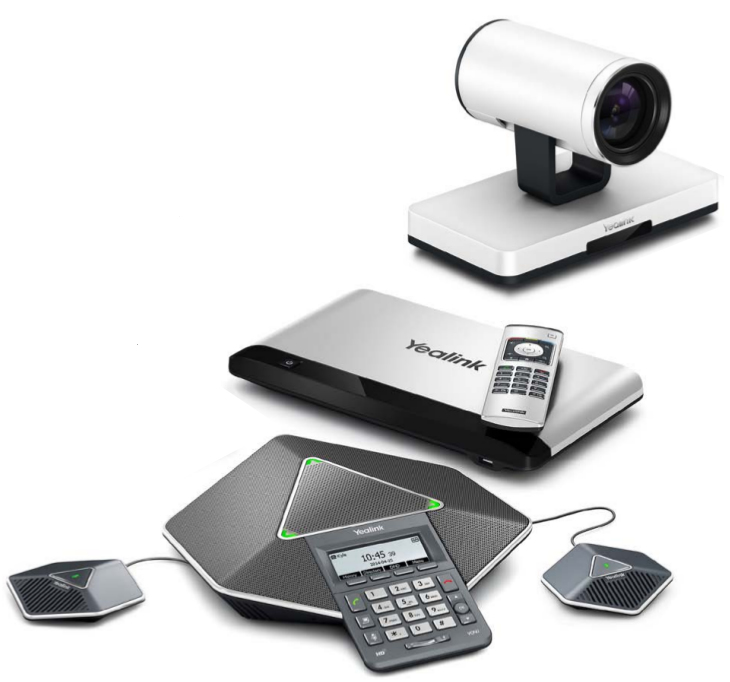

VC-120 MCU
Model VC-120 MCUPart no. VC120MCU
36 specifications
- ColourBlack, Silver
- HD typeFull HD
- Microphone pick-up range3 m
- VGA (D-Sub) ports quantity1
- Ethernet LANYes
- Optical zoom12x
Overview
- Colour
- Black, Silver
- HD type
- Full HD
- Microphone pick-up range
- 3 m
- VGA (D-Sub) ports quantity
- 1
- Ethernet LAN
- Yes
- Optical zoom
- 12x
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- VC-120 MCU
- Part number
- VC120MCU
- Also known as
- Yealink VC-120 MCU video conferencing system Ethernet LAN
Specifications
36 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Pan range | -100 - 100° |
| Tilt angle range | -30 - 30° |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 768 x 448, 400 x 240, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 fps |
| Video formats supported | H.263, H.264, H.264+ |
Audio
| Specification | Value |
|---|---|
| Microphone pick-up range | 3 m |
| Voice codecs | G.711, G.722 |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Line-out | Yes |
| AC (power) in | Yes |
Interface module
| Specification | Value |
|---|---|
| Interface module DVI-D ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security algorithms | HTTPS, SRTP, TTLS |
Camera
| Specification | Value |
|---|---|
| Optical zoom | 12x |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Microphone
| Specification | Value |
|---|---|
| Number of microphones | 3 |
Operational conditions
| Specification | Value |
|---|---|
| Storage relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -10 - 50 °C |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| DC input voltage | 19 V |
| Power consumption (max) | 303 W |
| Power consumption (typical) | 24 W |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Weight & dimensions
| Specification | Value |
|---|---|
| Camera dimensions (WxDxH) | 282 x 152 x 159 mm |
| Width | 320 mm |
| Depth | 260 mm |
| Height | 52 mm |
