UVC84-BYOD-H00 video conferencing system Ethernet LAN Group video conferencing system
Model UVC84-BYOD-H00Part no. 1106979EAN 6938818313088
47 specifications
- TypeGroup video conferencing system
- ColourBlack
- HD type4K Ultra HD
- Built-in speaker(s)No
- Line-outYes
- Camera typeSingle camera
Overview
- Type
- Group video conferencing system
- Colour
- Black
- HD type
- 4K Ultra HD
- Built-in speaker(s)
- No
- Line-out
- Yes
- Camera type
- Single camera
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- UVC84-BYOD-H00
- Part numbers
- 1106979, UVC84-BYOD-H00
- EAN / UPC
- 6938818313088
- Also known as
- Yealink UVC84-BYOD-H00 video conferencing system Ethernet LAN Group video conferencing system
Specifications
47 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 1 |
| Bluetooth | Yes |
| Product colour | Black |
| Pan range | -100 - 100° |
| Tilt angle range | -90 - 40° |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| HD-Ready | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
| Number of speakers | 1 |
| Audio system full duplex | Yes |
| Voice codecs | G.722, G.722.1C, OPUS |
Ports & interfaces
| Specification | Value |
|---|---|
| Line-out | Yes |
| AUX in (speaker) | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Optical zoom | 12x |
| Digital zoom | 3x |
| Focal length range | 3.9 - 46.8 mm |
| Field of view (FOV) angle | 80° |
| Horizontal field of view | 73° |
| Vertical field of view | 45° |
| Aperture range (F-F) | 1.6 - 2.8 |
| Minimum illumination | 0.1 lx |
Microphone
| Specification | Value |
|---|---|
| Microphone sensitivity | -38 dB |
| Microphone frequency | 100 - 8000 Hz |
| Microphone direction type | Omnidirectional |
| Microphone mute | Yes |
| Number of microphones | 3 |
| Number of microphone arrays | 1 |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Current | 0.7 A |
| DC input voltage | 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Camera dimensions (WxDxH) | 155 x 155 x 182 mm |
| Camera weight | 1.15 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Speaker included | Yes |
| Camera included | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |

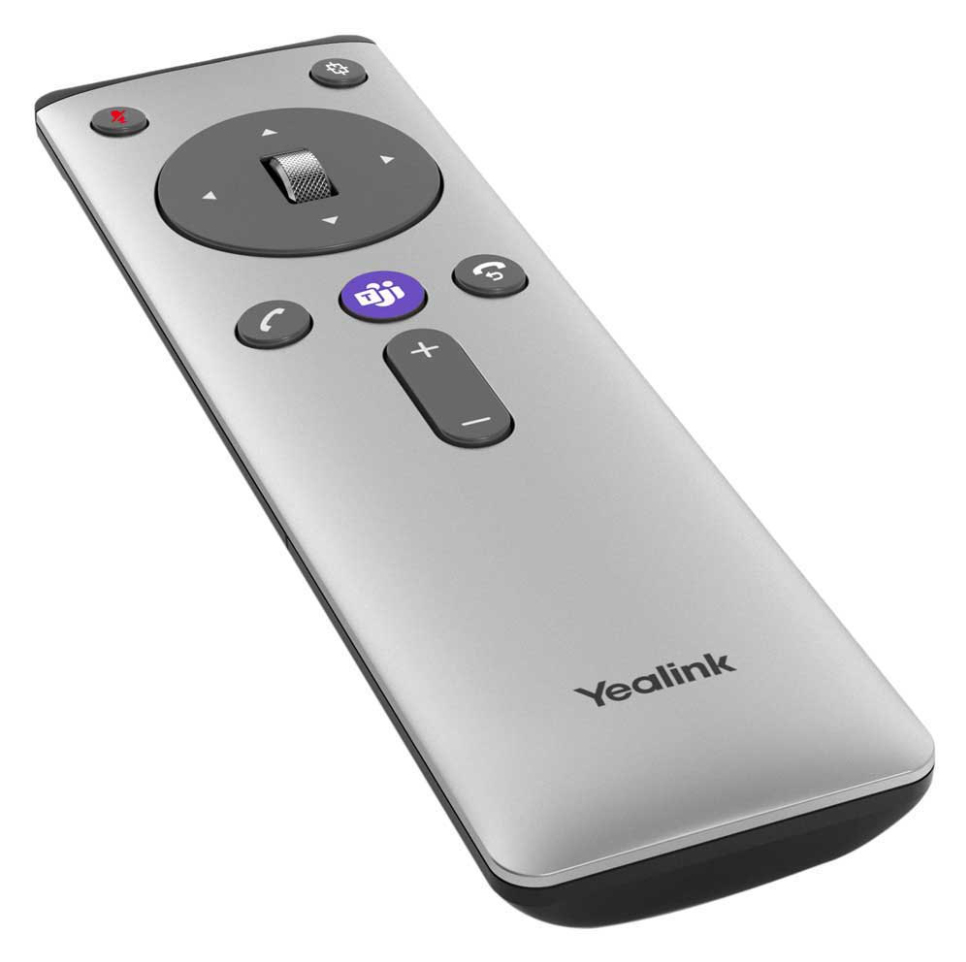

| Packaging content | UVC84 Camera VCR20 Remote Control CP965 IP Conference Phone |
