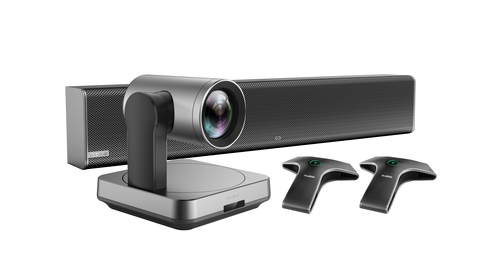

UVC84 BYOD Teams Video Conference Kit For Large Rooms
Model UVC84-BYODPart no. 1306939EAN 6938818307469
56 specifications
- TypeGroup video conferencing system
- ColourBlack
- HD type4K Ultra HD
- Number of speakers1
- USB connector typeUSB Type-B
- Ethernet LANYes
Overview
- Type
- Group video conferencing system
- Colour
- Black
- HD type
- 4K Ultra HD
- Number of speakers
- 1
- USB connector type
- USB Type-B
- Ethernet LAN
- Yes
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- UVC84-BYOD
- Part numbers
- 1306939, 1306937
- EAN / UPC
- 6938818307469, 841885106230, 5715063076217, 6938818307445 +1 more
- Also known as
- Yealink UVC84 BYOD Teams Video Conference Kit For Large Rooms
Specifications
56 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 1 |
| Product colour | Black |
| Pan range | -100 - 100° |
| Tilt angle range | -90 - 40° |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| HD-Ready | Yes |
Audio
| Specification | Value |
|---|---|
| Number of speakers | 1 |
| Frequency range | 100 - 20000 Hz |
| Microphone pick-up range | 6 m |
| RMS rated power | 10 W |
Ports & interfaces
| Specification | Value |
|---|---|
| USB connector type | USB Type-B |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Line-out | Yes |
| AUX in (speaker) | Yes |
| Reset slot | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Optical zoom | 12x |
| Digital zoom | 3x |
| Focal length range | 3.9 - 46.8 mm |
| Field of view (FOV) angle | 80° |
| Horizontal field of view | 73° |
| Vertical field of view | 45° |
| Aperture range (F-F) | 1.6 - 2.8 |
| Minimum illumination | 0.1 lx |
Microphone
| Specification | Value |
|---|---|
| Microphone direction type | Omnidirectional |
| Microphone mute | Yes |
| Number of microphones | 3 |
| Number of microphone arrays | 1 |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95% |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| Current | 0.7 A |
| DC input voltage | 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Microphone dimensions (WxHxD) | 169 x 171.5 x 37.5 mm |
| Speaker dimensions (WxDxH) | 500 x 60 x 86 mm |
| Camera dimensions (WxDxH) | 155 x 155 x 182 mm |
| Camera weight | 1.15 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 595 mm |
| Package depth | 422 mm |
| Package height | 232 mm |
| Package weight | 6.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of microphones included | 2 |
| AC adapter included | Yes |
| Speaker included | Yes |
| Camera included | Yes |
| Microphone included | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
| Packaging content | UVC84 Camera VCR20 Remote Control 2 VCM34 Microphone Array MSpeaker II Soundbar |
