MVC S90-C5-NOAUDIO
Model MVCS90-C5-007EAN 841885118714
65 specifications
- Display29.5 cm (11.6")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory8196 MB
- Storage128 GB
- TypeGroup video conferencing system
Overview
- Display
- 29.5 cm (11.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8196 MB
- Storage
- 128 GB
- Type
- Group video conferencing system
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- MVCS90-C5-007
- Part number
- MVCS90-C5-007
- EAN / UPC
- 841885118714, 5715063737101
- Also known as
- Yealink MVC S90-C5-NOAUDIO
Specifications
65 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Product colour | Black, Grey |
| Auto framing | Yes |
| Auto-tracking | Yes |
| Tracking modes | Presenter mode |
| Meeting features | Content sharing |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported video modes | 1080p, 2160p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3860 x 2160 |
| Maximum frame rate | 30 fps |
| Aspect ratio | 16:9 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8196 MB |
| Internal memory type | DDR4 |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI output ports quantity | 3 |
| Interface module USB 2.0 ports quantity | 4 |
| Interface module audio RCA input ports quantity | 1 |
| Interface module RJ-45 ports quantity | 2 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8 MP |
| Camera type | Dual camera |
| Second camera resolution | 8 MP |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Digital zoom | 1.7x |
| Field of view (FOV) angle | 120° |
| Horizontal field of view | 110° |
| Vertical field of view | 78° |
| Diagonal field of view | 120° |
Display
| Specification | Value |
|---|---|
| Display | IPS |
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
Technical details
| Specification | Value |
|---|---|
| Warranty period | 2 year(s) |
Computer system
| Specification | Value |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 12.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 935 mm |
| Package depth | 413 mm |
| Package height | 312 mm |
| Package weight | 13.8 kg |
Packaging content
| Specification | Value |
|---|---|
| External interface module included | Yes |
| Camera control unit included | Yes |
| Cables included | HDMI, LAN (RJ-45), USB Type-A to USB Type-B |
| AC adapter included | Yes |
| Camera included | Yes |
| Quick start guide | Yes |

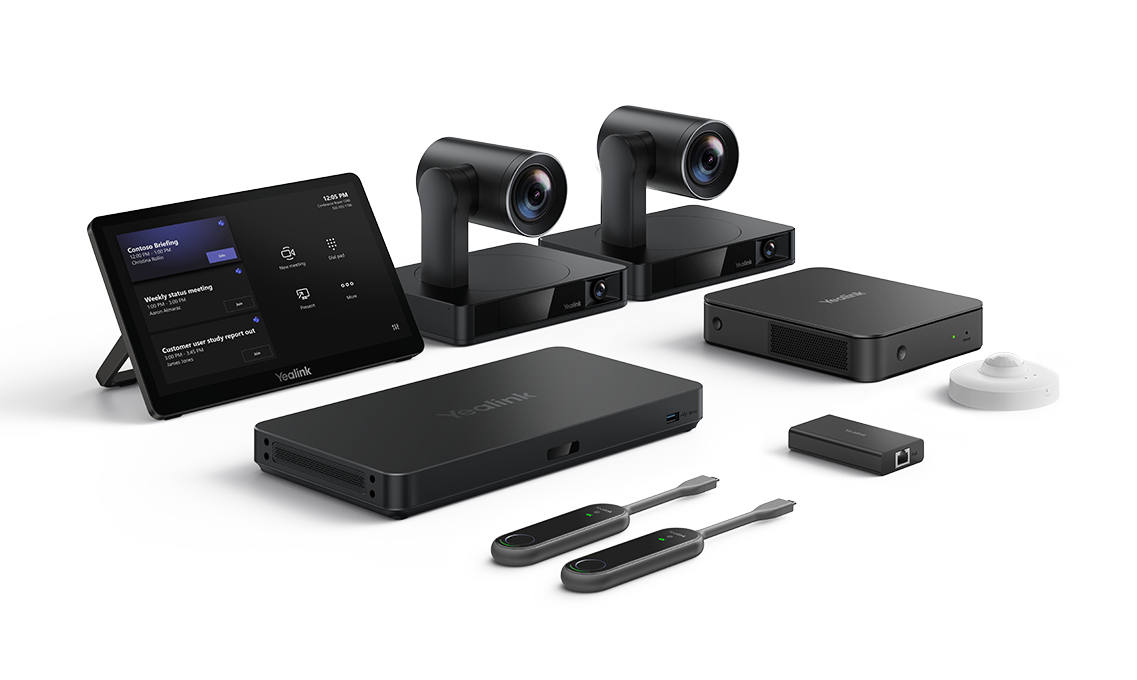

| Packaging content | MCore Pro, Gen-3 Mini-PC; MTouch Plus, Gen-3 touch panel; AVHub, audio and video processor; 2 x UVC86 USB PTZ camera; 2 x WPP30 wireless presentation pod; RoomSensor, meeting room sensor; |
