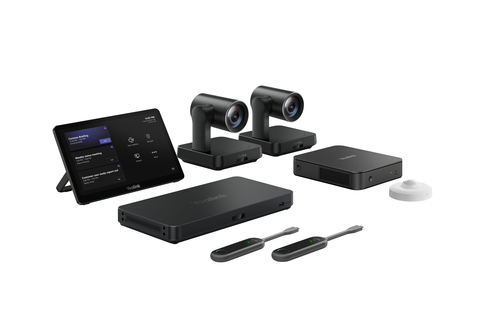

MVC940-C5
Model MVC940Part no. 1106982
62 specifications
- Display29.5 cm (11.6")
- Resolution1920 x 1080 pixels
- ProcessorIntel® Core™ i5
- Memory8192 MB
- Storage128 GB
- TypeGroup video conferencing system
Overview
- Display
- 29.5 cm (11.6")
- Resolution
- 1920 x 1080 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8192 MB
- Storage
- 128 GB
- Type
- Group video conferencing system
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- MVC940
- Part number
- 1106982
- Also known as
- Yealink MVC940-C5
Specifications
62 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 2 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Product colour | Black |
| Auto framing | Yes |
| Pan range | 0 - 200° |
| Tilt angle range | 0 - 130° |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8192 MB |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI output ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-B |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Line-out | Yes |
| Reset slot | Yes |
Interface module
| Specification | Value |
|---|---|
| Interface module USB 2.0 ports quantity | 2 |
| Interface module audio RCA input ports quantity | 1 |
| Interface module RJ-45 ports quantity | 7 |
| Interface module line-in ports quantity | 1 |
| Interface module line-out ports quantity | 1 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Sensor type | CMOS |
| Horizontal field of view | 73° |
| Vertical field of view | 45° |
| Diagonal field of view | 80° |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | IPS |
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1920 x 1080 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Computer system
| Specification | Value |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Operating system installed | Windows 10 IoT Enterprise |
Features
| Specification | Value |
|---|---|
| Motion sensor | Yes |
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 12.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 935 mm |
| Package depth | 413 mm |
| Package height | 312 mm |
| Package weight | 13.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Camera included | Yes |
| Packaging content | Core Pro, Gen-3 Mini-PC MTouch Plus, Gen-3 touch panel AVHub, audio and video processor 2 x UVC84 USB PTZ Camera 2 x WPP30 wireless presentation pod RoomSensor, meeting room sensor |
