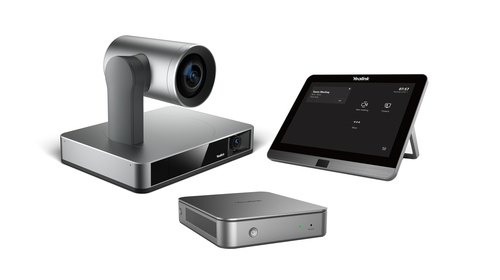

MVC860 Microsoft Teams Rooms System for Medium and Large Room
Model MVC860Part no. MVC860-C3-212EAN 6938818311640
48 specifications
- Display20.3 cm (8")
- Resolution1280 x 800 pixels
- ProcessorIntel® Core™ i5
- Memory8 MB
- Storage128 GB
- TypeGroup video conferencing system
Overview
- Display
- 20.3 cm (8")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8 MB
- Storage
- 128 GB
- Type
- Group video conferencing system
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- MVC860
- Part numbers
- MVC860-C3-212, 1106956, 1106973, 1106988, 1106984
- EAN / UPC
- 6938818311640, 841885108418, 6938818309517, 841885110633 +1 more
- Also known as
- Yealink MVC860 Microsoft Teams Rooms System for Medium and Large Room
Specifications
48 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 2 |
| Bluetooth | Yes |
| Product colour | Black, Grey |
| Pan range | -100 - 100° |
| Tilt angle range | -90 - 40° |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 MB |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| DC-in jack | Yes |
| Reset slot | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8 MP |
| Camera type | Dual camera |
| Second camera resolution | 8 MP |
| Optical zoom | 12x |
| Digital zoom | 1.7x |
| Combined zoom | 20.4x |
Display
| Specification | Value |
|---|---|
| Display | IPS |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Computer system
| Specification | Value |
|---|---|
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Operating system installed | Windows 10 IoT Enterprise |
| Windows operating systems supported | Yes |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| DC output voltage | 48 V |
| DC output current | 0.7 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Camera dimensions (WxDxH) | 210 x 155.6 x 157.6 mm |
| Camera weight | 3.27 kg |
| Weight | 6.88 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 420 mm |
| Package depth | 275 mm |
| Package height | 387 mm |
| Package weight | 7.54 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Camera included | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
| Packaging content | MCore Mini-PC MTouch II touch panel UVC86 USB PTZ camera |
