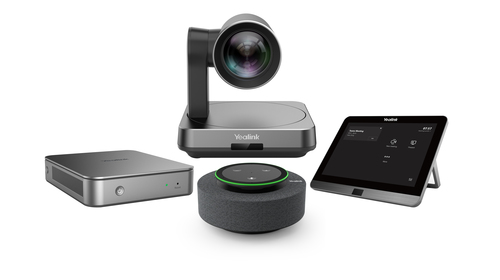

MVC640 video conferencing system Ethernet LAN Group video conferencing system
Model MVC640Part no. MVC640-C3-D11EAN 6938818313057
62 specifications
- Display20.3 cm (8")
- Resolution1280 x 800 pixels
- ProcessorIntel® Core™ i5
- Memory8000 MB
- Storage128 GB
- TypeGroup video conferencing system
Overview
- Display
- 20.3 cm (8")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8000 MB
- Storage
- 128 GB
- Type
- Group video conferencing system
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- MVC640
- Part numbers
- MVC640-C3-D11, 1106991, 1106987, MVC640-C3-D12, 1106927, 1106969
- EAN / UPC
- 6938818313057, 841885106162, 6938818307377
- Also known as
- Yealink MVC640 video conferencing system Ethernet LAN Group video conferencing system
Specifications
62 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Bluetooth | Yes |
| Product colour | Black, Grey |
| Auto framing | Yes |
| Signal-to-Noise Ratio (SNR) | 63 dB |
| Pan range | -100 - 100° |
| Tilt angle range | -45 - 90° |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Frequency range | 100 - 20000 Hz |
| Output voltage Total Harmonic Distortion (THD) | 1% |
| Echo cancellation | Yes |
| Microphone pick-up range | 6 m |
| Speaker power | 10 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8000 MB |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI output ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-out | Yes |
| Microphone in | Yes |
| Reset slot | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
Camera
| Specification | Value |
|---|---|
| Camera type | Single camera |
| Optical zoom | 12x |
| Digital zoom | 3x |
| Focal length range | 3.9 - 46.8 mm |
| Horizontal field of view | 73° |
| Vertical field of view | 45° |
| Diagonal field of view | 80° |
| Focus adjustment | Auto |
| Aperture range (F-F) | 1.6 - 2.8 |
| Camera shutter speed | 1/60 - 1/10000 s |
| Minimum illumination | 0.1 lx |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | IPS |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Microphone
| Specification | Value |
|---|---|
| Number of microphone arrays | 3 |
Computer system
| Specification | Value |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Operating system installed | Windows 10 IoT Enterprise |
Features
| Specification | Value |
|---|---|
| Motion sensor | Yes |
| Cable lock slot | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100-240 V |
| Current | 0.7 A |
| DC input voltage | 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 7.6 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Camera included | Yes |
| Manual | Yes |
| Microphone included | Yes |
| Packaging content | • MCore Mini-PC • MTouch II touch panel • UVC84 USB PTZ camera • MSpeech smart USB speakerphone |
