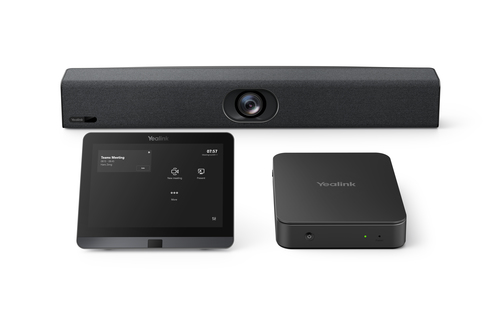

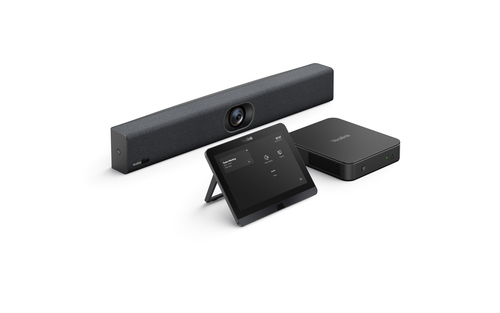

MVC400-C4-000
Model MVC400-C4-000Part no. 1106992EAN 841885118899
65 specifications
- Display20.3 cm (8")
- Resolution1280 x 800 pixels
- ProcessorIntel® Core™ i5
- Memory8000 MB
- Storage128 GB
- TypeGroup video conferencing system
Overview
- Display
- 20.3 cm (8")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8000 MB
- Storage
- 128 GB
- Type
- Group video conferencing system
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- MVC400-C4-000
- Part number
- 1106992
- EAN / UPC
- 841885118899, 5715063213469, 6938818316508
- Also known as
- Yealink MVC400
Specifications
65 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Number of cameras | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Product colour | Black, Grey |
| Auto framing | Yes |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported video modes | 1080p, 2160p |
| Maximum frame rate | 30 fps |
Audio
| Specification | Value |
|---|---|
| Audio system full duplex | Yes |
| Audio beamforming | Yes |
| Echo cancellation | Yes |
| Microphone pick-up range | 7 m |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8000 MB |
| Internal memory type | DDR4 |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI output ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-B |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
| Reset slot | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 20 MP |
| Camera type | Single camera |
| Zoom capability | Yes |
| Sensor type | CMOS |
| Image sensor size | 1" |
| Field of view (FOV) angle | 120° |
| Horizontal field of view | 111° |
| Vertical field of view | 73° |
| Diagonal field of view | 120° |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | IPS |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
| Touchscreen type | Capacitive |
Microphone
| Specification | Value |
|---|---|
| Number of microphone arrays | 8 |
Computer system
| Specification | Value |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Operating system installed | Windows 10 IoT Enterprise |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 202 x 151 x 100 mm |
| Interface module weight | 1 kg |
| Camera dimensions (WxDxH) | 600 x 68 x 82 mm |
| Camera weight | 2.56 kg |
| Weight | 6.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Camera included | Yes |
| Quick start guide | Yes |
