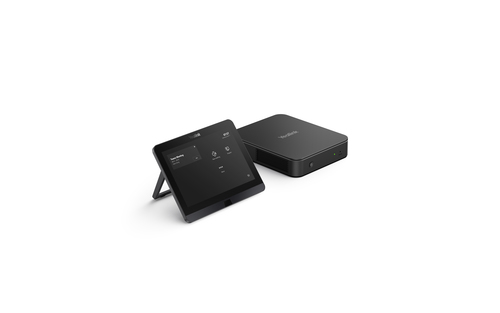

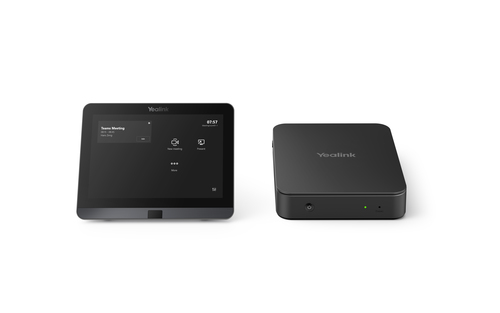

MCoreKit-C4-MS
Model MCoreKit-C4-MSPart no. 1206654EAN 841885118615
36 specifications
- Display20.3 cm (8")
- Resolution1280 x 800 pixels
- ProcessorIntel® Core™ i5
- Memory8196 MB
- Storage128 GB
- Weight2.52 kg
Overview
- Display
- 20.3 cm (8")
- Resolution
- 1280 x 800 pixels
- Processor
- Intel® Core™ i5
- Memory
- 8196 MB
- Storage
- 128 GB
- Weight
- 2.52 kg
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- MCoreKit-C4-MS
- Part number
- 1206654
- EAN / UPC
- 841885118615, 5715328093348, 6938818316225
- Also known as
- Yealink MCoreKit-C4
Specifications
36 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Product colour | Black, Grey |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8196 MB |
| Internal memory type | DDR4 |
| Storage media type | SSD |
| Total storage capacity | 128 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI output ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n) |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ad, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g |
Display
| Specification | Value |
|---|---|
| Display | IPS |
| Display diagonal | 20.3 cm (8") |
| Display resolution | 1280 x 800 pixels |
| Touchscreen | Yes |
Computer system
| Specification | Value |
|---|---|
| Computer system type | Mini PC |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| DC output voltage | 19 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 168 x 197 x 39 mm |
| Interface module weight | 690 g |
| Weight | 2.52 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 302 mm |
| Package depth | 210 mm |
| Package height | 271 mm |
Packaging content
| Specification | Value |
|---|---|
| External interface module included | Yes |
| Quick start guide | Yes |
