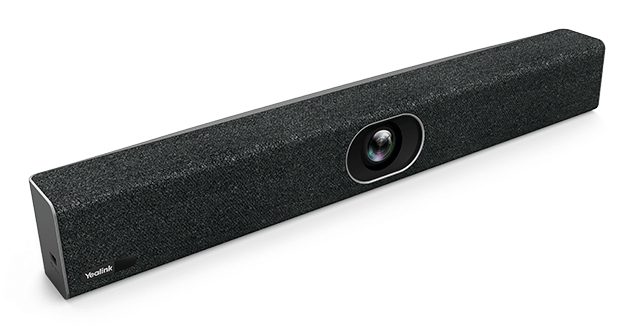

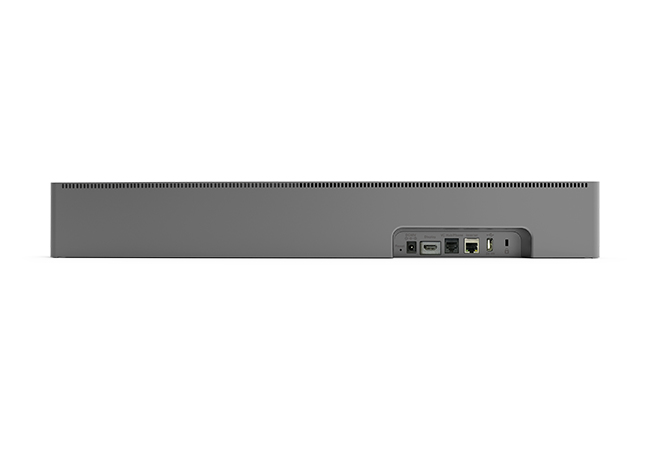

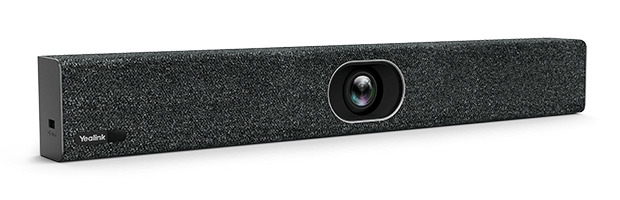

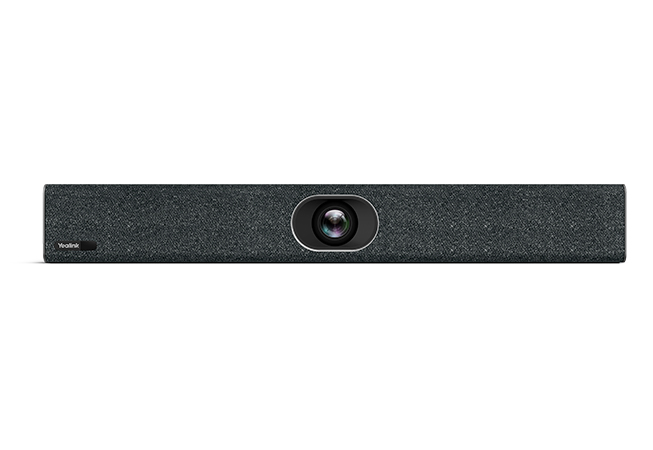

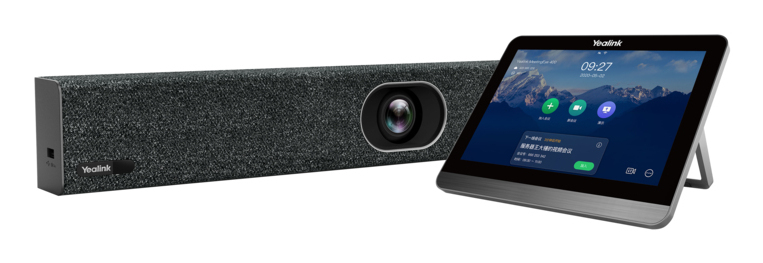

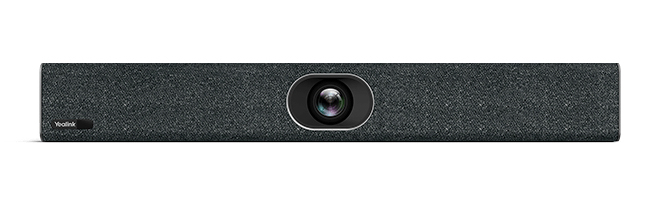

Yealink M400-BASIC video conferencing system
Yealink

M400-BASIC video conferencing system

20 MP Ethernet LAN Group video conferencing system

Model M400-BASICPart no. 1203640EAN 6938818305809

73 specifications
  • Storage16 GB
  • TypeGroup video conferencing system
  • ColourBlack
  • HD type4K Ultra HD
  • Built-in speaker(s)Yes
  • HDMI ports quantity1
See all specifications

Overview

Storage
16 GB
Type
Group video conferencing system
Colour
Black
HD type
4K Ultra HD
Built-in speaker(s)
Yes
HDMI ports quantity
1
Brand
Yealink
Model
M400-BASIC
Part number
1203640
EAN / UPC
6938818305809
Also known as
Yealink M400-BASIC video conferencing system 20 MP Ethernet LAN Group video conferencing system

Specifications

73 specifications in 15 groups

Performance

Product typeGroup video conferencing system
Number of cameras1
BluetoothYes
Bluetooth version4.2
Product colourBlack
Auto framingYes
Auto-trackingYes
Tracking modesPresenter mode
Meeting featuresContent sharing, Whiteboard

Video

HD type4K Ultra HD
Maximum video resolution3840 x 2160 pixels
HD-ReadyYes
Supported video modes360p, 540p, 720p, 1080p, 2160p
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Maximum frame rate30 fps
Resolution at capture speed1280x720@30fps, 1920x1080@30fps, 3840x2160@30fps
Video formats supportedH.239, H.263, H.263+, H.264, H.265
Streaming capabilityYes
Dual streamH.239 (H.323)/BFCP (SIP)
Video codecsH.264 SVC, H.265, H.264 High Profile, H.264, H.263, H.263+

Audio

Built-in speaker(s)Yes
Number of speakers1
Audio system full duplexYes
Audio beamformingYes
Automatic gain controlYes
Noise reductionYes
Voice codecsAJB, CNG, G.711, G.722.1, G.722.1C, G.729, PLC
Speaker power5 W

Memory

Total storage capacity16 GB

Ports & interfaces

HDMI ports quantity1
HDMI output ports quantity1
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Reset slotYes

Network

Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Wi-FiYes
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Networking standardsIEEE 802.1p, IEEE 802.1x
Security algorithms256-bit AES, HTTPS, SRTP, TLS

Camera

Megapixel (approx.)20 MP
Camera typeSingle camera
Zoom capabilityYes
Sensor typeCMOS
Image sensor size1"
Field of view (FOV) angle133°
PTZ motors4x e-PTZ camera
Camera privacy shutterYes
Face trackingYes
Communication protocol• H.323/SIP • Dual stream protocol: H.239 (H.323)/BFCP (SIP) • FECC: H.224/H.281 • H.323 protocol suite: H.245, H.225, H.235, H.241 • Gatekeeper account and SIP account

Microphone

Number of microphone arrays8

Computer system

Firmware upgradeableYes

Sustainability

Sustainability complianceYes

Operational conditions

Operating relative humidity (H-H)10 - 95%
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-30 - 70 °C

Power

Power source typeAC
AC input voltage100 - 240 V
DC output voltage48 V
DC output current0.7 A
Power consumption (idle)8.8 W
Power consumption (max)10.2 W
Power consumption (typical)9.2 W

Certificates

Compliance certificatesCE, Federal Communications Commission (FCC), REACH, RoHS

Weight & dimensions

Width600 mm
Depth68 mm
Height82 mm

Packaging content

Wall mounting kitYes
Speaker includedYes
Camera includedYes
Microphone includedYes
Remote control includedYes
Packaging content• MeetingEye 600 Codec (integrate codec/camera/microphone/speaker) • VCR20 Remote Control • Wall Bracket
