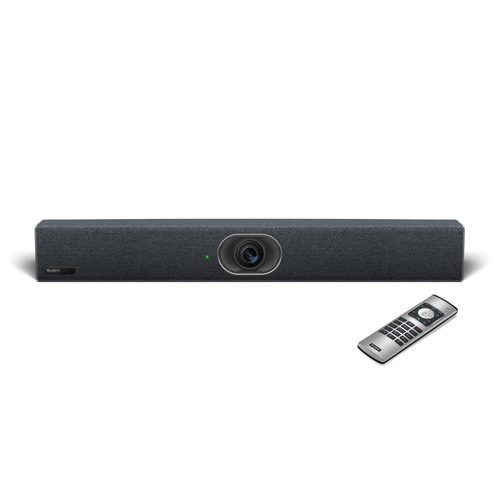

MeetingBar A20-010
Model A20-010Part no. 1206650EAN 5715063413418
56 specifications
- Storage64 GB
- TypeVideo collaboration bar
- OSAndroid 10
- ColourBlack
- HD type4K Ultra HD
- Built-in speaker(s)Yes
Overview
- Storage
- 64 GB
- Type
- Video collaboration bar
- OS
- Android 10
- Colour
- Black
- HD type
- 4K Ultra HD
- Built-in speaker(s)
- Yes
- Brand
- Yealink
- Category
- Video Conferencing System
- Model
- A20-010
- Part number
- 1206650
- EAN / UPC
- 5715063413418, 841885115287, 841885116512, 6938818314979 +1 more
- Also known as
- Yealink MeetingBar A20-010
Specifications
56 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Product type | Video collaboration bar |
| Bluetooth | Yes |
| Product colour | Black |
| Auto framing | Yes |
| Tracking modes | Presenter mode |
| Meeting features | Add participates, Calendar, Content sharing, Hold/Resume, One-click join, Whiteboard |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 30 fps |
| Video codecs | H.264 High profile, H.264 SVC, H.264 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system full duplex | Yes |
| Echo cancellation | Yes |
| Speaker power | 5 W |
Memory
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI input ports quantity | 1 |
| HDMI output ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Reset slot | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| VLAN support | Yes |
| Security algorithms | 256-bit AES, EAP-MD5, EAP-TTLS, PEAP, SRTP, TLS |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 20 MP |
| Camera type | Single camera |
| Horizontal field of view | 110° |
| Vertical field of view | 73° |
| Diagonal field of view | 120° |
| Camera privacy shutter | Yes |
Microphone
| Specification | Value |
|---|---|
| Microphone mute | Yes |
| Number of microphone arrays | 8 |
Features
| Specification | Value |
|---|---|
| Cable lock slot | Yes |
Computer system
| Specification | Value |
|---|---|
| Operating system installed | Android 10 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 240 V |
| DC output voltage | 5 V |
| DC output current | 0.5 A |
| Power consumption (idle) | 10 W |
| Power consumption (max) | 14 W |
| Power consumption (typical) | 10.5 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, RoHS, REACH, ISO 9001, CCC, NOM |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 600 mm |
| Depth | 68 mm |
| Height | 82 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI, LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Remote control included | Yes |
