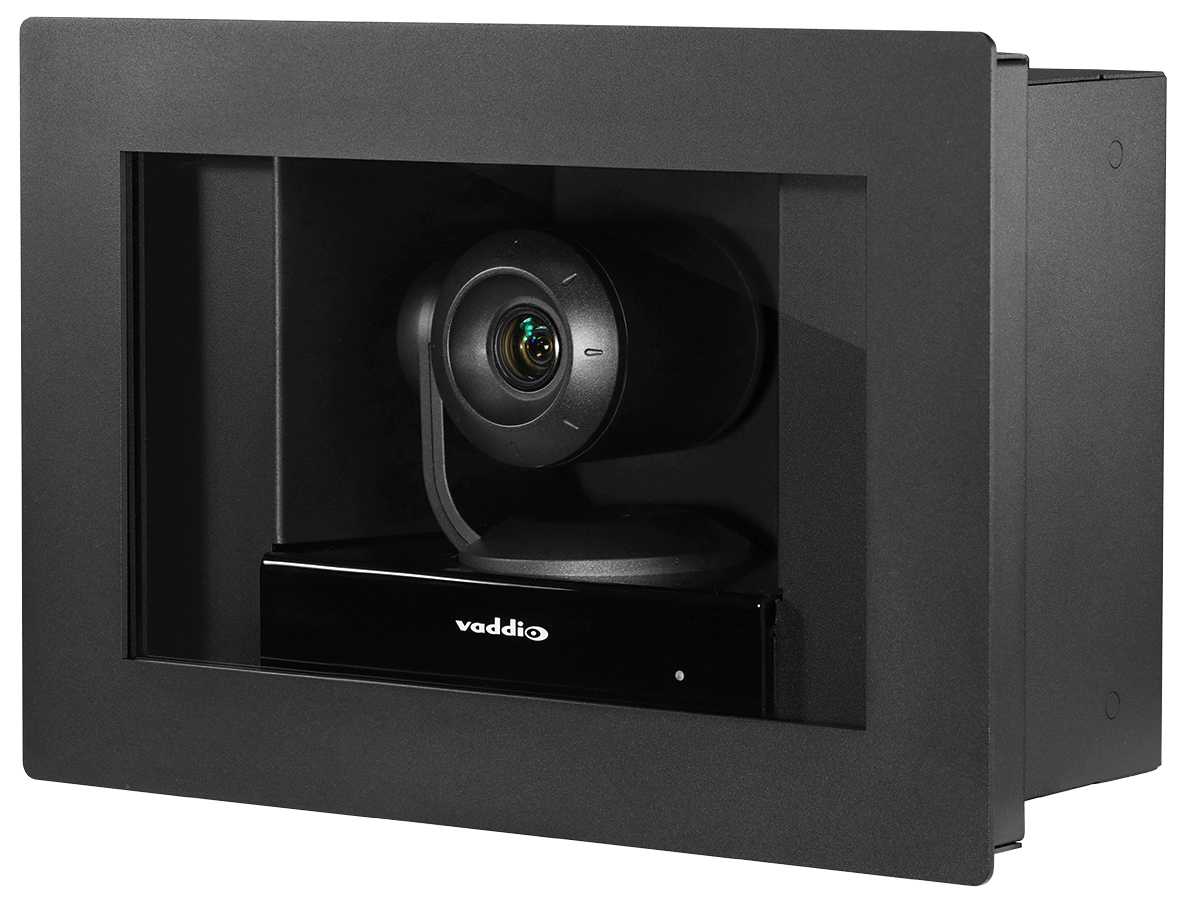

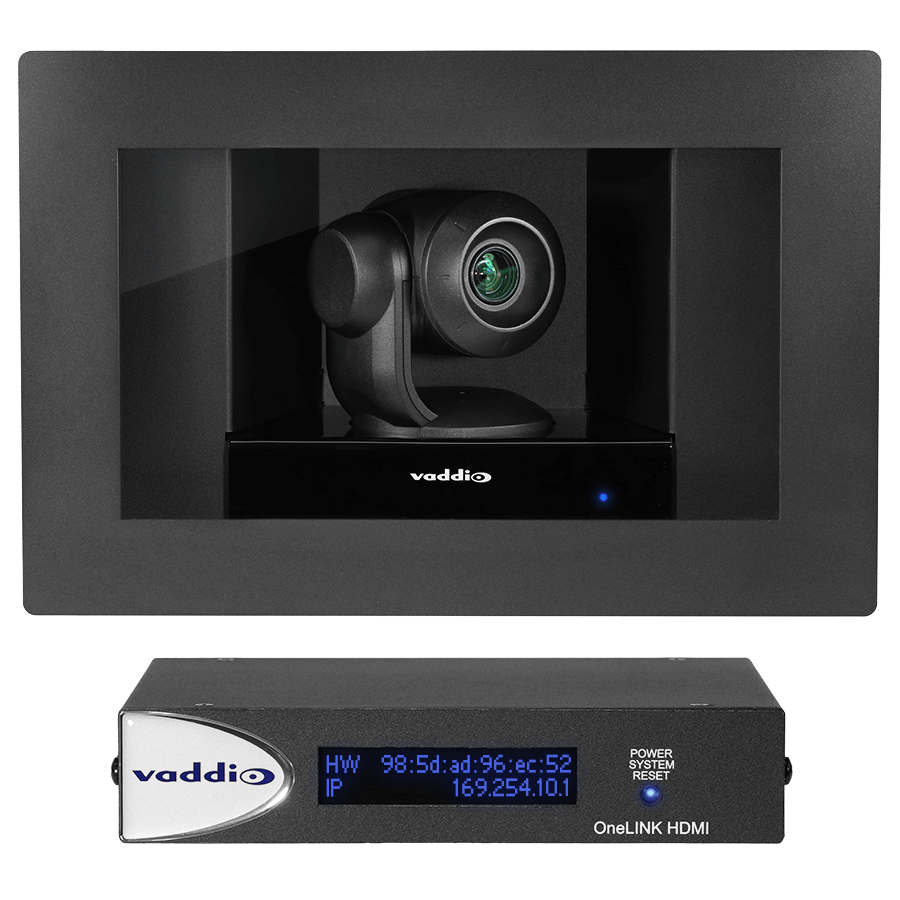

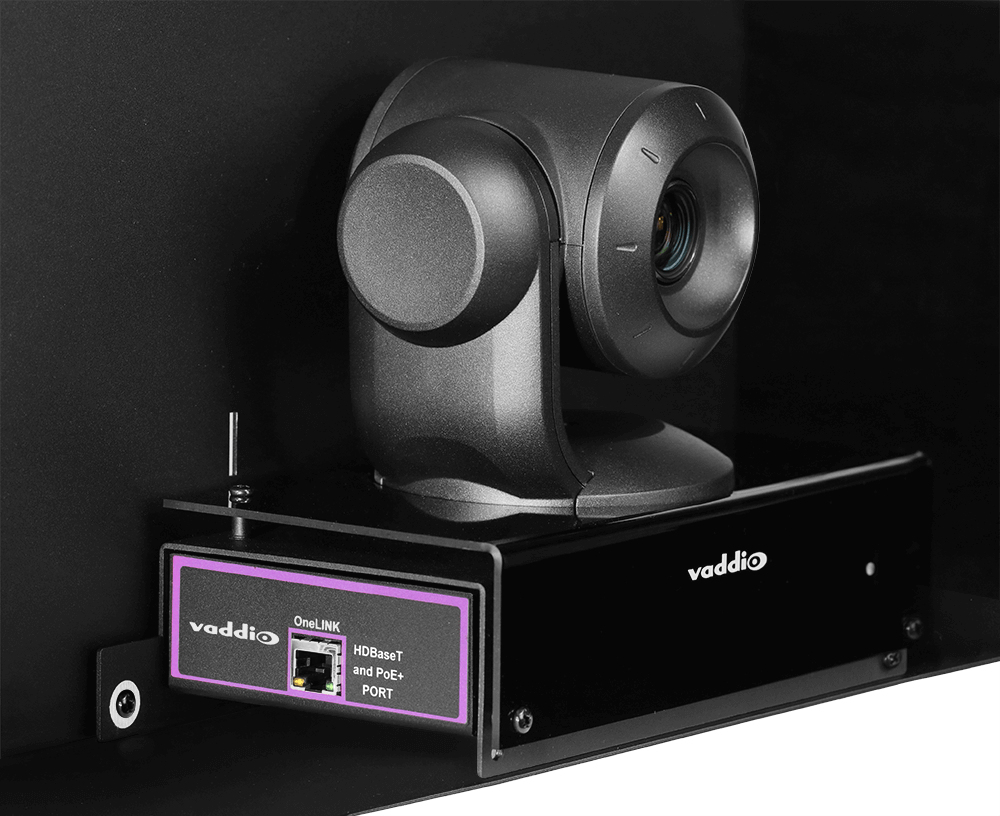

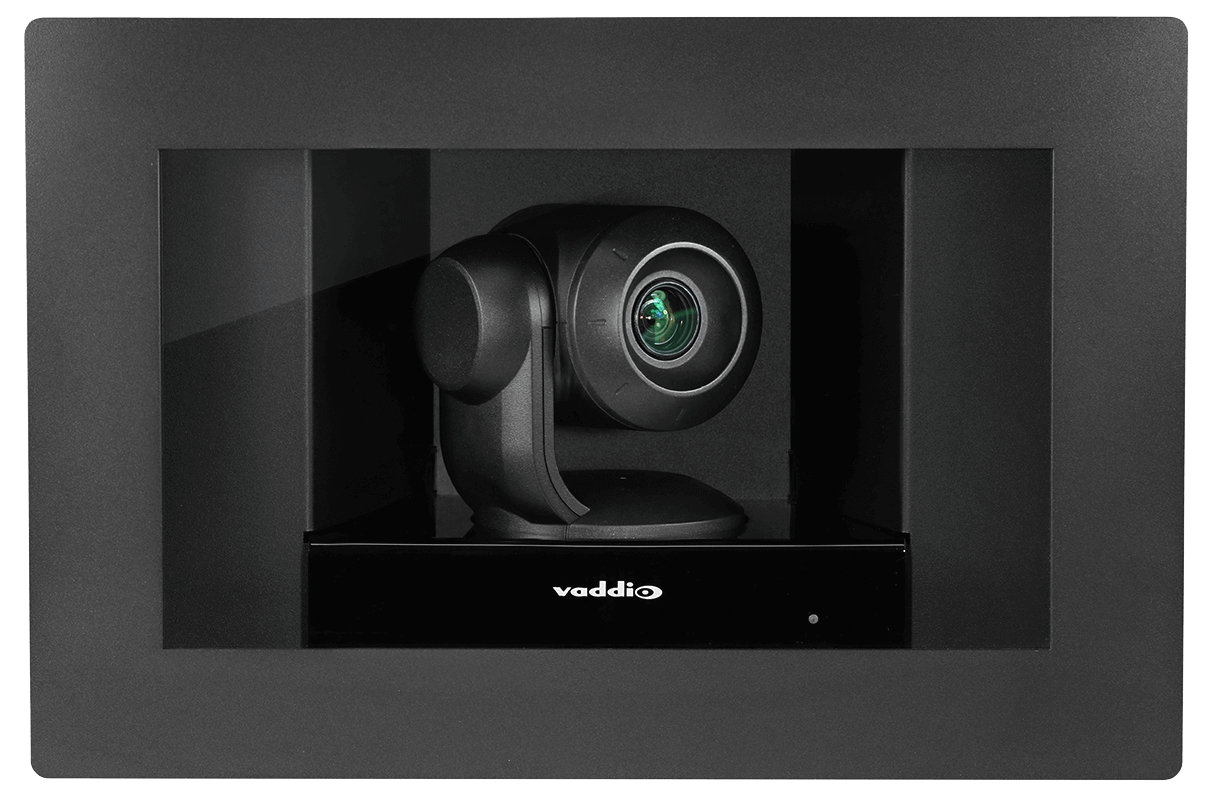

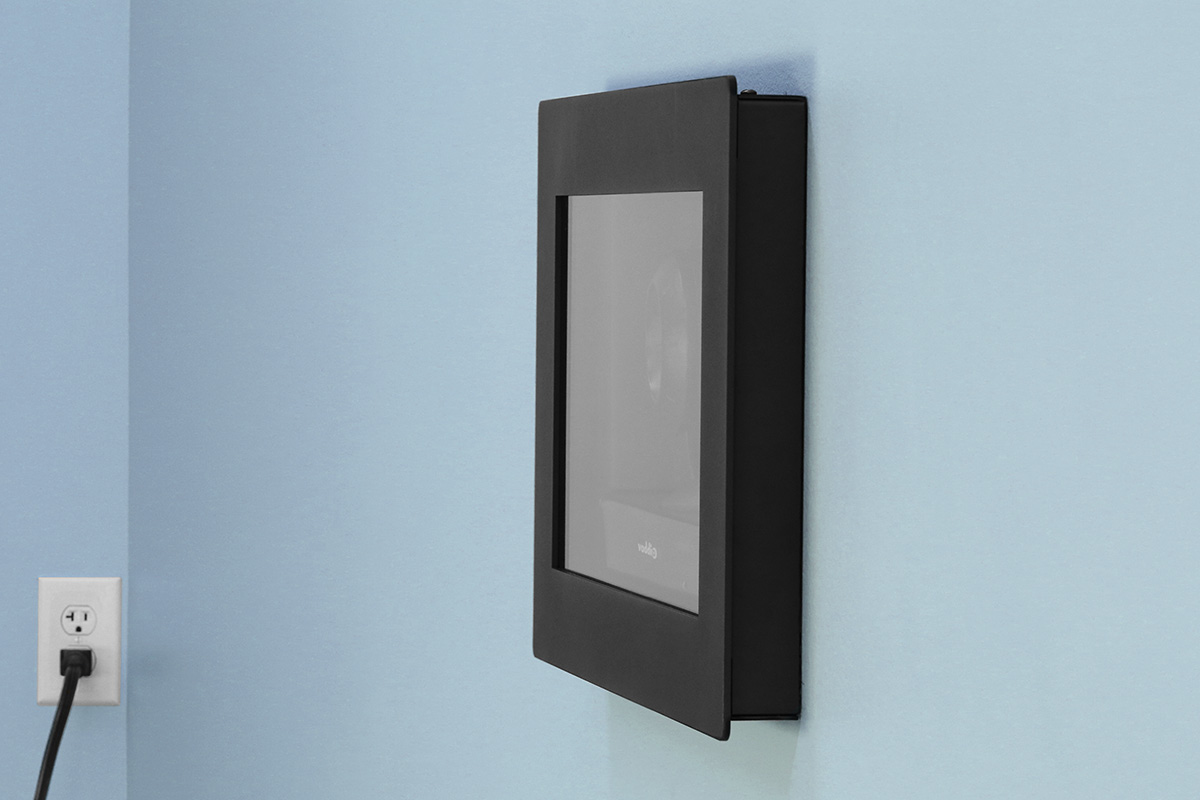

RoboSHOT IW Clear Glass OneLINK HDMI
Model RoboSHOT IW Clear Glass OneLINK HDMIPart no. 999-9966-101EAN 840077504632
51 specifications
- ColourBlack
- HD typeFull HD
- Audio formats supportedAAC
- HDMI ports quantity1
- Ethernet LANYes
- Megapixel (approx.)2.38 MP
Overview
- Colour
- Black
- HD type
- Full HD
- Audio formats supported
- AAC
- HDMI ports quantity
- 1
- Ethernet LAN
- Yes
- Megapixel (approx.)
- 2.38 MP
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- RoboSHOT IW Clear Glass OneLINK HDMI
- Part numbers
- 999-9966-101, 999-9966-181
- EAN / UPC
- 840077504632, 840077504656
- Also known as
- Vaddio RoboSHOT IW Clear Glass OneLINK HDMI video conferencing system 2.38 MP Ethernet LAN
Specifications
51 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Pan range | -31 - 31° |
| Tilt angle range | -30 - 18° |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| HD-Ready | Yes |
| Supported video modes | 360p, 480p, 720p, 1080p |
| Supported graphics resolutions | 352 x 288, 640 x 480 (VGA), 704 x 576, 1360 x 768 (WXGA), 1920 x 1080 (HD 1080) |
| Maximum frame rate | 60 fps |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC |
| Automatic gain control | Yes |
| Noise reduction | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI ports quantity | 1 |
| Interface module RS-232 ports quantity | 1 |
| Interface module RJ-45 ports quantity | 3 |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Interface module IR output port | Yes |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Web-based management | Yes |
| Management protocols | Telnet |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.38 MP |
| Effective sensor resolution | 2.14 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.8" |
| Optical zoom (normal mode) | 10x |
| Optical zoom (super-wide mode) | 12x |
| Wide end viewing angle (super-wide mode) | 73° |
| Tele end viewing angle (super-wide mode) | 6.6° |
| Noise reduction number of steps | 6 |
| Remote control interface | IR Wireless |
| Minimum illumination | 0.1 lx |
| Aperture number of steps | 16 |
| White balance | Auto, Manual, One push |
| Closest focusing distance (wide) | 0.01 m |
| Closest focusing distance (tele) | 0.8 m |
| Gain control type | Auto/Manual |
Display
| Specification | Value |
|---|---|
| Built-in display | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) power per port | 25 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 212.7 x 152.4 x 43.7 mm |
| Camera dimensions (WxDxH) | 381 x 127 x 254 mm |
Packaging content
| Specification | Value |
|---|---|
| Wall mounting kit | Yes |
| Camera included | Yes |
