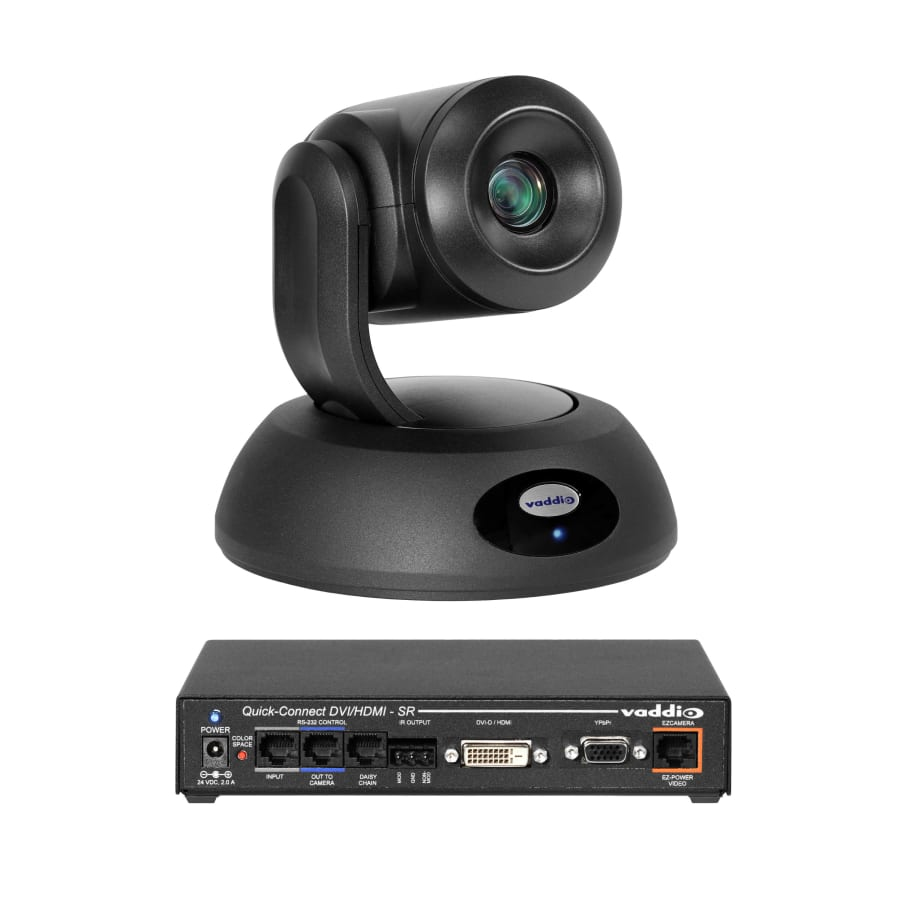

RoboSHOT 30E QDVI
Model RoboSHOT 30E QDVIPart no. 999-99160-001EAN 840077503024
46 specifications
- Weight2.2 kg
- ColourBlack
- HD typeFull HD
- Ethernet LAN (RJ-45) ports4
- Interface module HDMI ports quantity1
- Ethernet LANYes
Overview
- Weight
- 2.2 kg
- Colour
- Black
- HD type
- Full HD
- Ethernet LAN (RJ-45) ports
- 4
- Interface module HDMI ports quantity
- 1
- Ethernet LAN
- Yes
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- RoboSHOT 30E QDVI
- Part number
- 999-99160-001
- EAN / UPC
- 840077503024
- Also known as
- Vaddio RoboSHOT 30E QDVI video conferencing system 8.51 MP Ethernet LAN
Specifications
46 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Camera cable length (max) | 45.7 m |
| Wall mountable | Yes |
| Pan range | -160 - 160° |
| Pan speed range | 0.35 - 120 °/sec |
| Tilt angle range | -30 - 90° |
| Tilt speed range | 0.35 - 120 °/sec |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| HD-Ready | Yes |
| Supported video modes | 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI ports quantity | 1 |
| Interface module DVI-D ports quantity | 1 |
| Interface module RS-232 ports quantity | 1 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8.51 MP |
| Optical zoom | 30x |
| Effective sensor resolution | 8.51 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.5" |
| Camera control algorithm | Tri-synchronous motion |
| Wide end viewing angle (normal mode) | 70.2° |
| Tele end viewing angle (normal mode) | 4.1° |
| Field of view (FOV) angle | 70.2° |
| Focus adjustment | Auto/Manual |
| Number of camera presets | 16 |
| White balance | Auto, Manual, One push |
| Gain control type | Auto/Manual |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Power
| Specification | Value |
|---|---|
| Current | 2 A |
| DC input voltage | 24 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 179.1 mm |
| Depth | 171.5 mm |
| Height | 176.3 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Camera control unit included | Yes |
| Cables included | AC |
| Wall mounting kit | Yes |
| Mounting kit | Yes |
| Camera included | Yes |
| Remote control included | Yes |
| User guide | Yes |
| Packaging content | EZCamera RS-232 Control Adapter |
