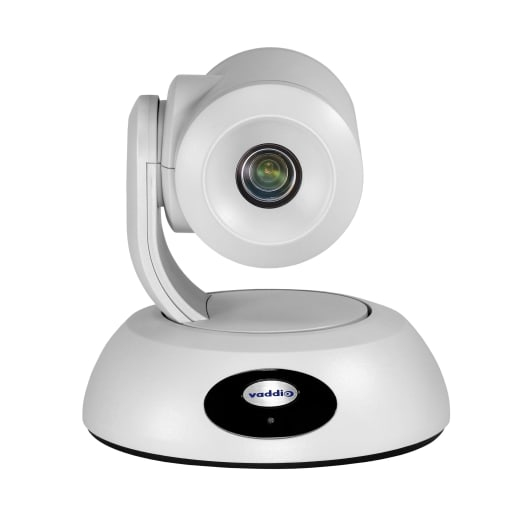

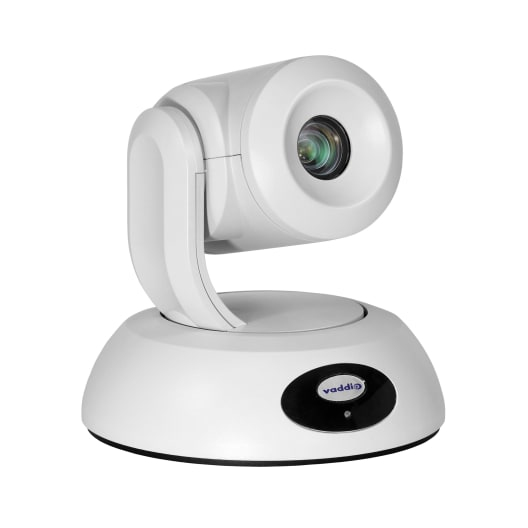

RoboSHOT 30E HDBT
Model RoboSHOT 30E HDBTPart no. 999-99630-271WEAN 840077507459
48 specifications
- ColourBlack, White
- HD typeFull HD
- HDMI ports quantity1
- Ethernet LANYes
- Megapixel (approx.)8.57 MP
- Operating relative humidity (H-H)20 - 80%
Overview
- Colour
- Black, White
- HD type
- Full HD
- HDMI ports quantity
- 1
- Ethernet LAN
- Yes
- Megapixel (approx.)
- 8.57 MP
- Operating relative humidity (H-H)
- 20 - 80%
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- RoboSHOT 30E HDBT
- Part number
- 999-99630-271W
- EAN / UPC
- 840077507459
- Also known as
- Vaddio RoboSHOT 30E HDBT video conferencing system 8.57 MP Ethernet LAN Personal video conferencing system
Specifications
48 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Product type | Personal video conferencing system |
| Product colour | Black, White |
| Camera cable length (max) | 100 m |
| Pan range | -160 - 160° |
| Pan speed range | 0.35 - 120 °/sec |
| Tilt angle range | -30 - 90° |
| Tilt speed range | 0.35 - 120 °/sec |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum video resolution | 1920 x 1080 pixels |
| Supported video modes | 1080p |
| Maximum frame rate | 60 fps |

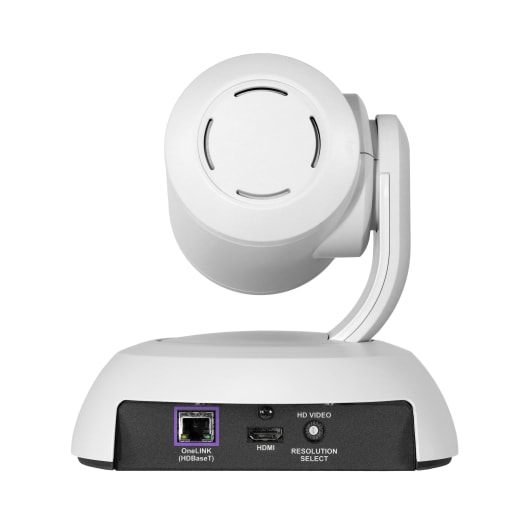

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI ports quantity | 1 |
| Interface module RJ-45 ports quantity | 2 |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Web-based management | Yes |
| Management protocols | Telnet |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8.57 MP |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Effective sensor resolution | 8.51 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.5" |
| Camera control algorithm | Tri-synchronous motion |
| Field of view (FOV) angle | 70.2° |
| Focus adjustment | Auto/Manual |
| Number of camera presets | 17 |
| Recommended luminance | 100 lx |
| Minimum illumination | 1 lx |
| White balance | Auto, Manual, One push |
| Gain control type | Auto/Manual |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
Power
| Specification | Value |
|---|---|
| Current | 1.36 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 213 x 152 x 44 mm |
| Interface module weight | 1.5 kg |
| Camera dimensions (WxDxH) | 179.1 x 171.5 x 176.3 mm |
Packaging content
| Specification | Value |
|---|---|

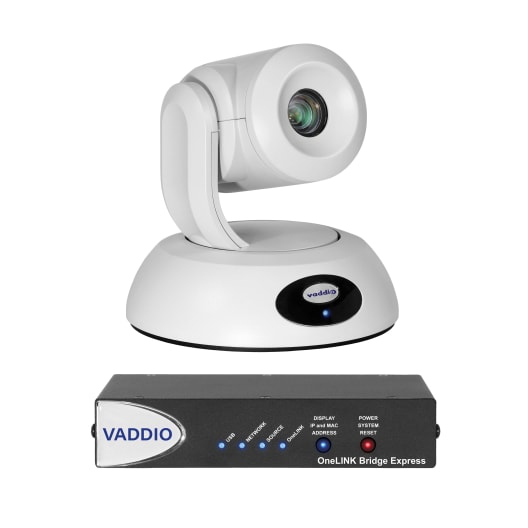

| External interface module included | Yes |
| Cables included | AC, USB Type-A to USB Type-B |

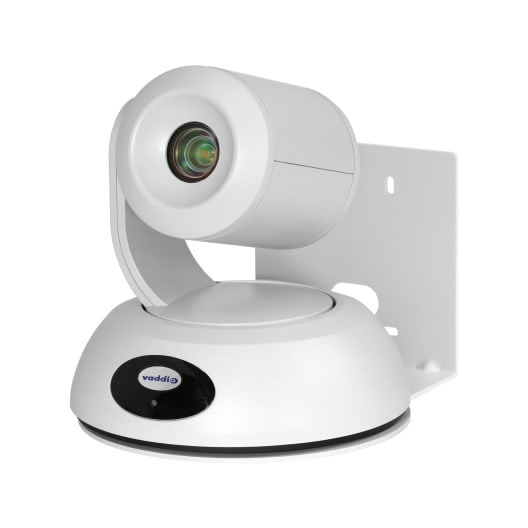

| Wall mounting kit | Yes |
| Camera included | Yes |
| Remote control included | Yes |
| User guide | Yes |
| Packaging content | -RoboSHOT 30E HDBT camera (black or white) -Thin Profile Wall Mount (black or white) with mounting hardware and installation manual -Vaddio IR Remote Commander -OneLINK Bridge Express Interface -48V power supply with AC cord set(s) -EZCamera RS-232 Control Adapter -4 qty 3-position phoenix-style con |
