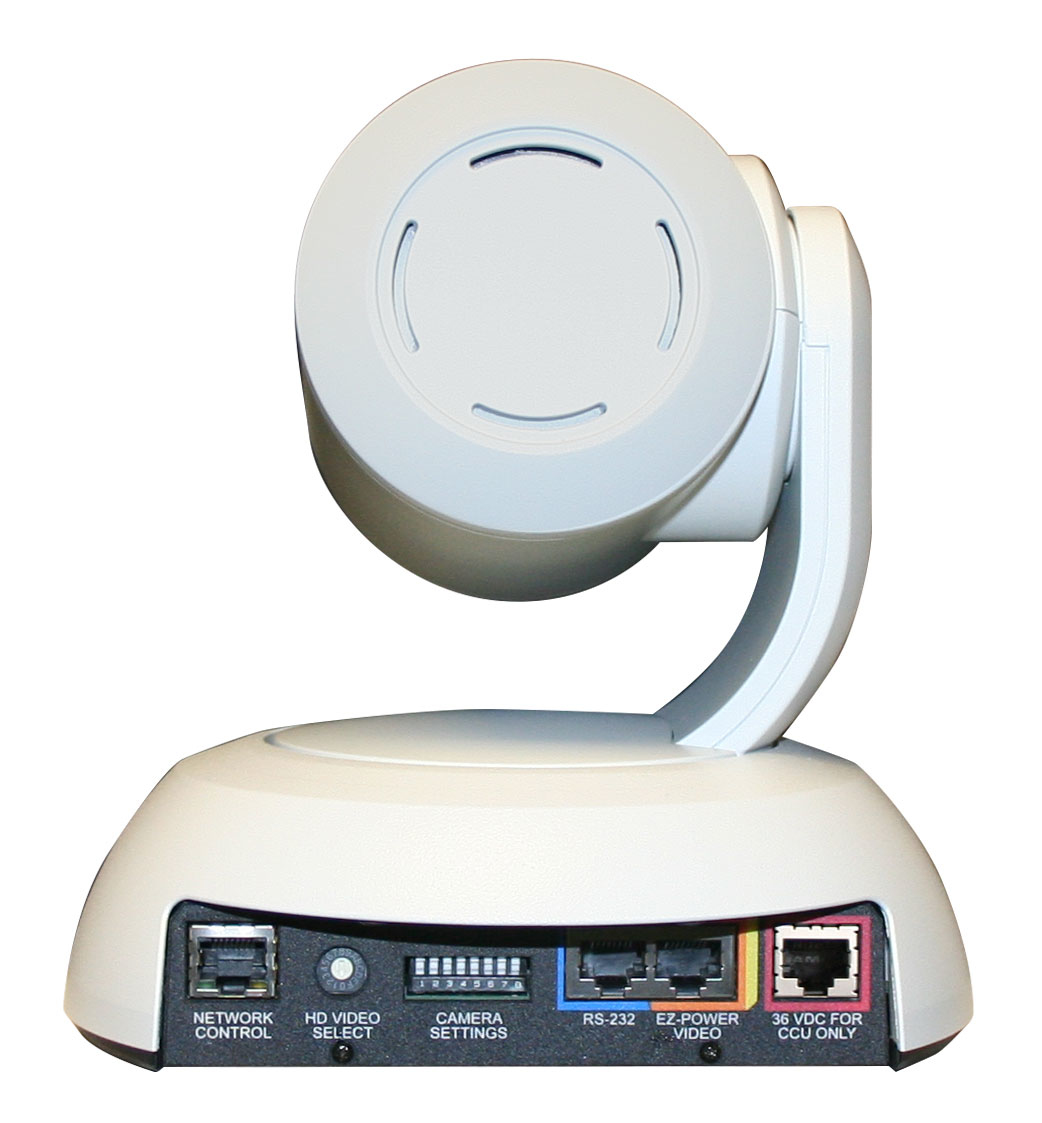

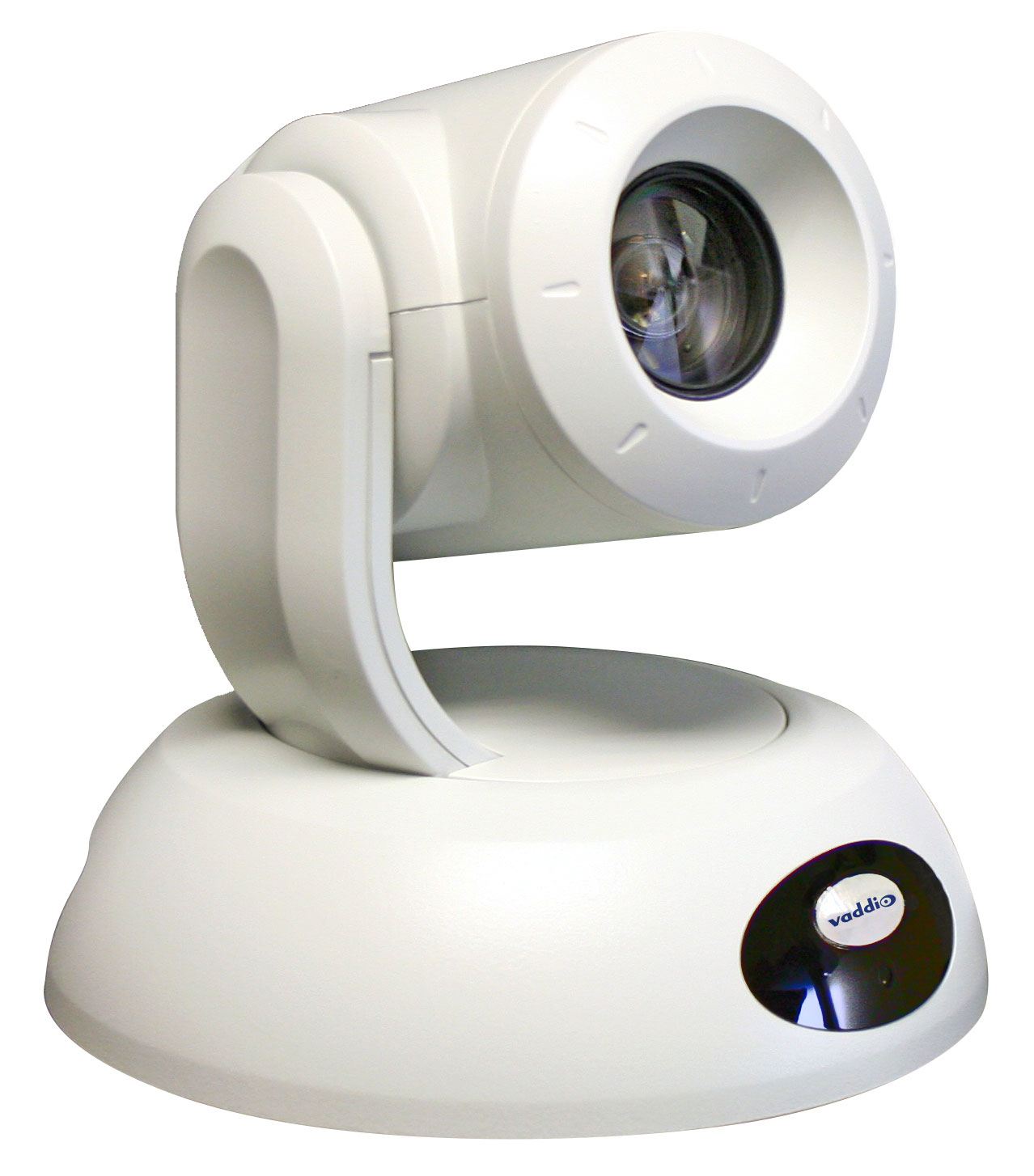

RoboSHOT 30 QSR
Model RoboSHOT 30 QSRPart no. 999-9915-000W
44 specifications
- Weight2.2 kg
- ColourWhite
- HD typeFull HD
- Ethernet LAN (RJ-45) ports2
- Interface module VGA (D-Sub) ports quantity1
- Ethernet LANYes
Overview
- Weight
- 2.2 kg
- Colour
- White
- HD type
- Full HD
- Ethernet LAN (RJ-45) ports
- 2
- Interface module VGA (D-Sub) ports quantity
- 1
- Ethernet LAN
- Yes
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- RoboSHOT 30 QSR
- Part numbers
- 999-9915-000W, 999-9915-001
- Also known as
- Vaddio RoboSHOT 30 QSR video conferencing system 2.38 MP Ethernet LAN
Specifications
44 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Pan range | -160 - 160° |
| Pan speed range | 0.35 - 120 °/sec |
| Tilt angle range | -30 - 90° |
| Tilt speed range | 0.35 - 120 °/sec |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Supported video modes | 720p, 1080i, 1080p |
| Maximum frame rate | 60 fps |
| Aspect ratio | 16:9 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) ports quantity | 2 |

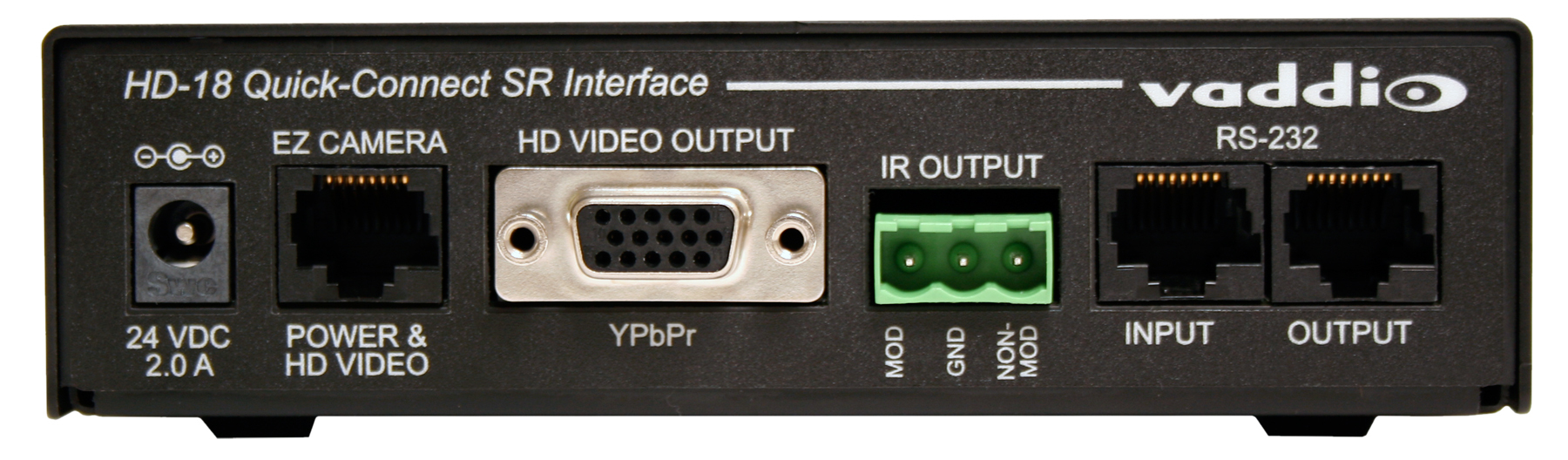

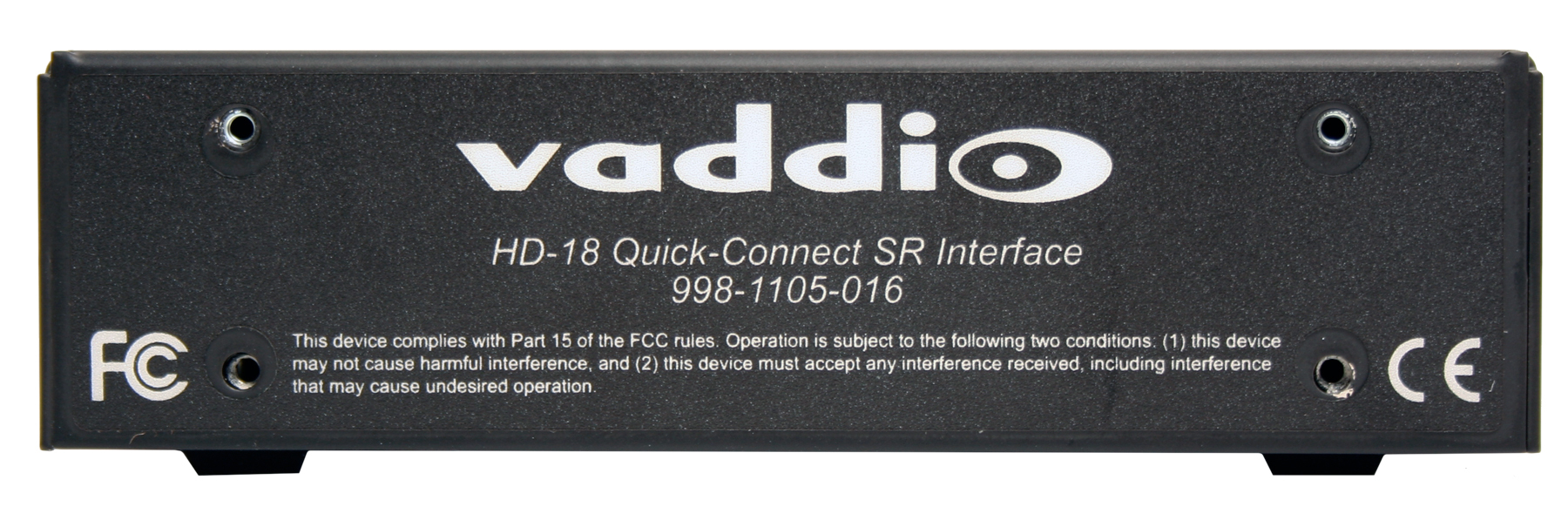

Interface module
| Specification | Value |
|---|---|
| Interface module VGA (D-Sub) ports quantity | 1 |
| Interface module Ethernet LAN (RJ-45) ports | 3 |
| Interface module IR output port | Yes |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cable standard | Cat5e |
| Web-based management | Yes |
| Management protocols | Telnet |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.38 MP |
| Optical zoom | 30x |
| Sensor type | CMOS |
| Image sensor size | 1/2.8" |
| Focal length range | 4.3 - 129 mm |
| Camera control algorithm | Tri-synchronous motion |
| Horizontal field of view | 65° |
| Remote control interface | IR wireless/RS-232 |
| Aperture range (F-F) | 1.6 - 4.7 |
| Minimum illumination | 1.4 lx |
| Closest focusing distance | 0.01 m |
| Closest focusing distance (tele) | 1.2 m |
| Sync system | Internal |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Camera dimensions (WxDxH) | 179.2 x 171.6 x 176.3 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| External interface module included | Yes |
| Mounting kit | Yes |
| Camera included | Yes |
| Remote control included | Yes |
