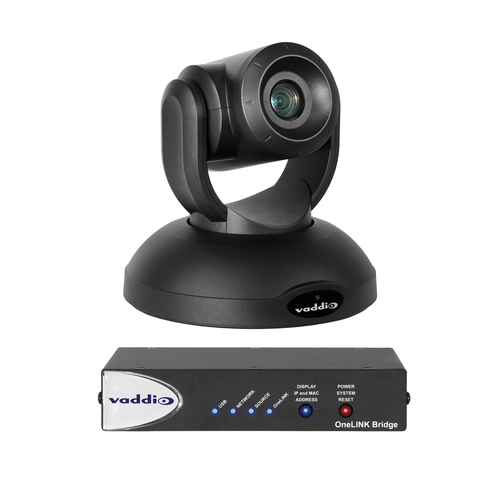

RoboSHOT 20 UHD OneLINK Bridge System
Model RoboSHOT 20 UHD OneLINK Bridge SystemPart no. 999-9950-201BEAN 840077507893
73 specifications
- Weight2.72 kg
- ColourBlack
- Number of persons1 person(s)
- HD type4K Ultra HD
- Noise reductionYes
- HDMI ports quantity1
Overview
- Weight
- 2.72 kg
- Colour
- Black
- Number of persons
- 1 person(s)
- HD type
- 4K Ultra HD
- Noise reduction
- Yes
- HDMI ports quantity
- 1
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- RoboSHOT 20 UHD OneLINK Bridge System
- Part number
- 999-9950-201B
- EAN / UPC
- 840077507893
- Also known as
- Vaddio RoboSHOT 20 UHD OneLINK Bridge System
Specifications
73 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Product type | Personal video conferencing system |
| Number of persons | 1 person(s) |
| Number of cameras | 1 |
| Product colour | Black |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Pan range | -160 - 160° |
| Pan speed range | 0.35 - 120 °/sec |
| Tilt angle range | -30 - 90° |
| Tilt speed range | 0.35 - 120 °/sec |
Video
| Specification | Value |
|---|---|
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Supported video modes | 720p, 1080i, 1080p, 2160p |
| Aspect ratio | 3:2, 4:3, 16:9 |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| 3G-SDI output | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Video resolution rotary switch | Yes |
| DC-in jack | Yes |
| RS-232 ports | 1 |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI output ports quantity | 1 |
| Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Interface module RS-232 ports quantity | 1 |
| Interface module HD-SDI ports quantity | 1 |
| Interface module RJ-45 ports quantity | 1 |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Interface module line-out ports quantity | 2 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Web-based management | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 9.03 MP |
| Camera type | Single camera |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Digital zoom | 1.67x |
| Combined zoom | 20x |
| Effective sensor resolution | 8.93 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.3" |
| Field of view (tele) | 4.8° |
| Field of view (wide) | 74° |
| Noise reduction number of steps | 6 |
| Focus adjustment | Auto/Manual |
| Remote control interface | IR wireless/RS-232 |
| Recommended illumination range | 3 - 100 lx |
| Aperture number of steps | 16 |
| White balance | ATW, Auto, Indoor, One push, Outdoor |
| Closest focusing distance (wide) | 0.01 m |
| Closest focusing distance (tele) | 1.5 m |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto/Manual |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | -5 - 60 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC output voltage | 12 V |
| DC output current | 3 A |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, UL, TAA |
| Certification | CE,FCC,HDBASET,TAA,UL |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 213 x 152 x 44 mm |
| Interface module weight | 1.5 kg |
| Camera dimensions (WxDxH) | 203 x 196 x 200 mm |
| Camera weight | 2.7 kg |
| Weight | 2.72 kg |
Packaging content
| Specification | Value |
|---|---|
| External interface module included | Yes |
| Camera control unit included | Yes |
| Cables included | AC, USB Type-A to USB Type-B |
| Wall mounting kit | Yes |
| AC adapter included | Yes |
| Camera included | Yes |
| Remote control included | Yes |
