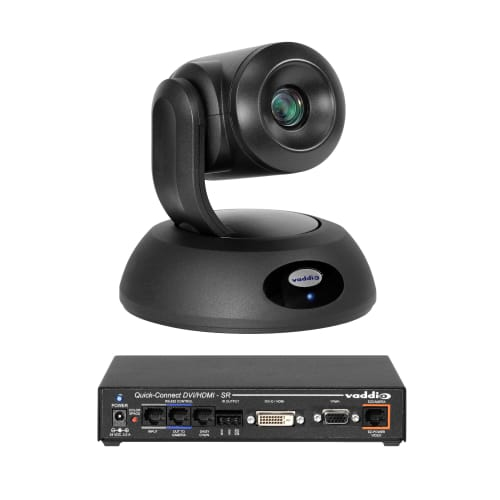

RoboSHOT 12E QDVI
Model RoboSHOT 12E QDVIPart no. 999-99060-001EAN 840077502690
47 specifications
- TypeGroup video conferencing system
- Weight2.2 kg
- ColourBlack
- HD typeFull HD
- Audio formats supportedRTSP
- Ethernet LAN (RJ-45) ports4
Overview
- Type
- Group video conferencing system
- Weight
- 2.2 kg
- Colour
- Black
- HD type
- Full HD
- Audio formats supported
- RTSP
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- RoboSHOT 12E QDVI
- Part numbers
- 999-99060-001, 999-99060-001W
- EAN / UPC
- 840077502690, 840077502706
- Also known as
- Vaddio RoboSHOT 12E QDVI video conferencing system 8.57 MP Group video conferencing system
Specifications
47 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Product colour | Black |
| Camera cable length (max) | 152 m |
| Wall mountable | Yes |
| Pan range | -160 - 160° |
| Pan speed range | 0.35 - 120 °/sec |
| Tilt angle range | -30 - 90° |
| Tilt speed range | 0.35 - 120 °/sec |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Supported video modes | 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum frame rate | 60 fps |
| Video formats supported | H.264 |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | RTSP |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |

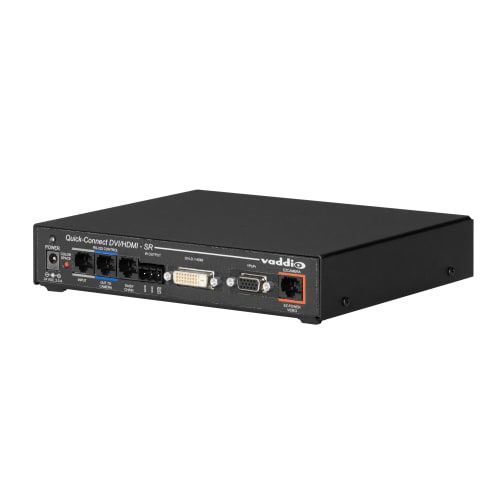

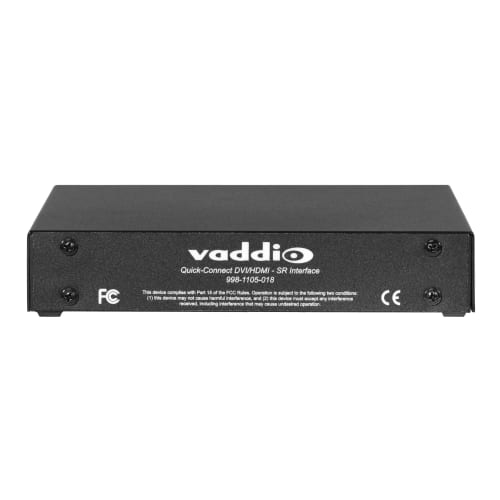

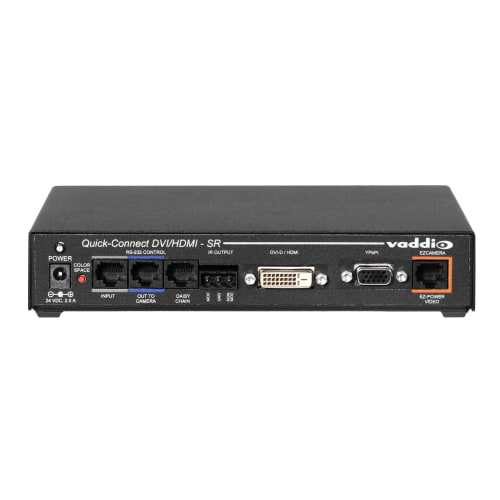

Interface module
| Specification | Value |
|---|---|
| Interface module DVI-D ports quantity | 1 |
| Interface module RS-232 ports quantity | 1 |
| Interface module RJ-45 ports quantity | 4 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Cable standard | Cat5 |
| Web-based management | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8.57 MP |
| Optical zoom | 12x |
| Effective sensor resolution | 8.51 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.5" |
| Camera control algorithm | Tri-synchronous motion |
| Wide end viewing angle (normal mode) | 70.2° |
| Tele end viewing angle (normal mode) | 4.1° |
| Focus adjustment | Auto/Manual |
| Number of camera presets | 17 |
| Recommended luminance | 100 lx |
| Minimum illumination | 1 lx |
| Aperture number of steps | 1.6 |
| White balance | Auto, Manual, One push |
| Gain control type | Auto/Manual |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Power
| Specification | Value |
|---|---|
| Current | 2 A |
| DC input voltage | 36 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Camera dimensions (WxDxH) | 179.1 x 171.5 x 176.3 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| External interface module included | Yes |
| Camera control unit included | Yes |
| Cables included | AC |
| Wall mounting kit | Yes |
| Mounting kit | Yes |
