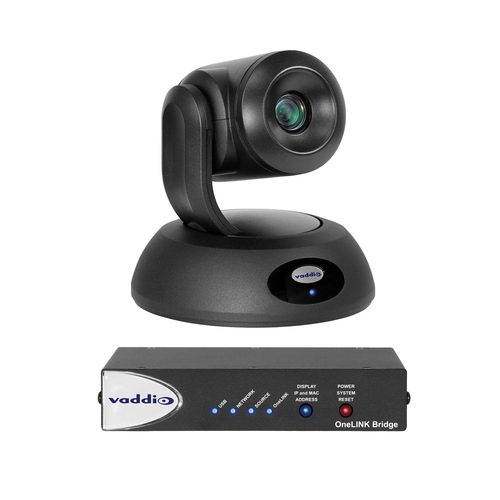

Vaddio RoboSHOT 12E HDBT OneLINK

RoboSHOT 12E HDBT OneLINK

Model RoboSHOT 12E HDBT OneLINKPart no. 999-96750-401EAN 840077502522

63 specifications

TypeGroup video conferencing system
Weight2.2 kg
ColourBlack
HD typeFull HD
Audio formats supportedRTSP
HDMI ports quantity1

See all specifications

Overview

Type: Group video conferencing system
Weight: 2.2 kg
Colour: Black
HD type: Full HD
Audio formats supported: RTSP
HDMI ports quantity: 1

Brand: Vaddio
Category: Video Conferencing System
Model: RoboSHOT 12E HDBT OneLINK
Part numbers: 999-96750-401, 999-96450-501
EAN / UPC: 840077502522, 840077502423
Also known as: Vaddio RoboSHOT 12E HDBT OneLINK Bridge System for Cisco SX Codecs

Specifications

63 specifications in 13 groups

Performance

Specification	Value
Product type	Group video conferencing system
Product colour	Black
Camera cable length (max)	100 m
Wall mountable	Yes
Pan range	-160 - 160°
Pan speed range	0.35 - 120 °/sec
Tilt angle range	-30 - 90°
Tilt speed range	0.35 - 120 °/sec
PTZ control	Yes

Video

Specification	Value
HD type	Full HD
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
Video formats supported	H.264

Audio

Specification	Value
Audio formats supported	RTSP

Ports & interfaces

Specification	Value
HDMI ports quantity	1
USB connector type	USB Type-B
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	1
Ethernet LAN (RJ-45) ports	1
Line-in	Yes
Line-out	Yes

Interface module

Specification	Value
Interface module HDMI output ports quantity	1
Interface module RJ-45 ports quantity	2
Interface module Ethernet LAN (RJ-45) ports	1
Interface module DC input port	Yes

Network

Specification	Value
Ethernet LAN	Yes
Cable standard	Cat5e
Web-based management	Yes

Camera

Specification	Value
Megapixel (approx.)	8.57 MP
Optical zoom	12x
Effective sensor resolution	8.51 MP
Sensor type	CMOS
Image sensor size	1/2.5"
Camera control algorithm	Tri-synchronous motion
Wide end viewing angle (normal mode)	70.2°
Tele end viewing angle (normal mode)	4.1°
Focus adjustment	Auto/Manual
Number of camera presets	17
Recommended luminance	100 lx
Minimum illumination	1 lx
Aperture number of steps	1.6
White balance	Auto, Manual, One push
Gain control type	Auto/Manual

Logistics data

Specification	Value
Harmonized System (HS) code	85176990

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C

Power

Specification	Value
Current	1.36 A
DC input voltage	48 V

Certificates

Specification	Value
Compliance certificates	Federal Communications Commission (FCC), CE, TAA
Certification	CE,FCC

Weight & dimensions

Specification	Value
Camera dimensions (WxDxH)	179.1 x 171.5 x 176.3 mm
Width	179.1 mm
Depth	171.4 mm
Height	176.3 mm
Weight	2.2 kg

Packaging content

Specification	Value
External interface module included	Yes
Camera control unit included	Yes
Cables included	AC, HDMI, LAN (RJ-45), USB Type-A to USB Type-B
Networking cable length	0.9 m
HDMI cable length	0.9 m
Wall mounting kit	Yes
Mounting kit	Yes
Camera included	Yes
Remote control included	Yes
User guide	Yes
