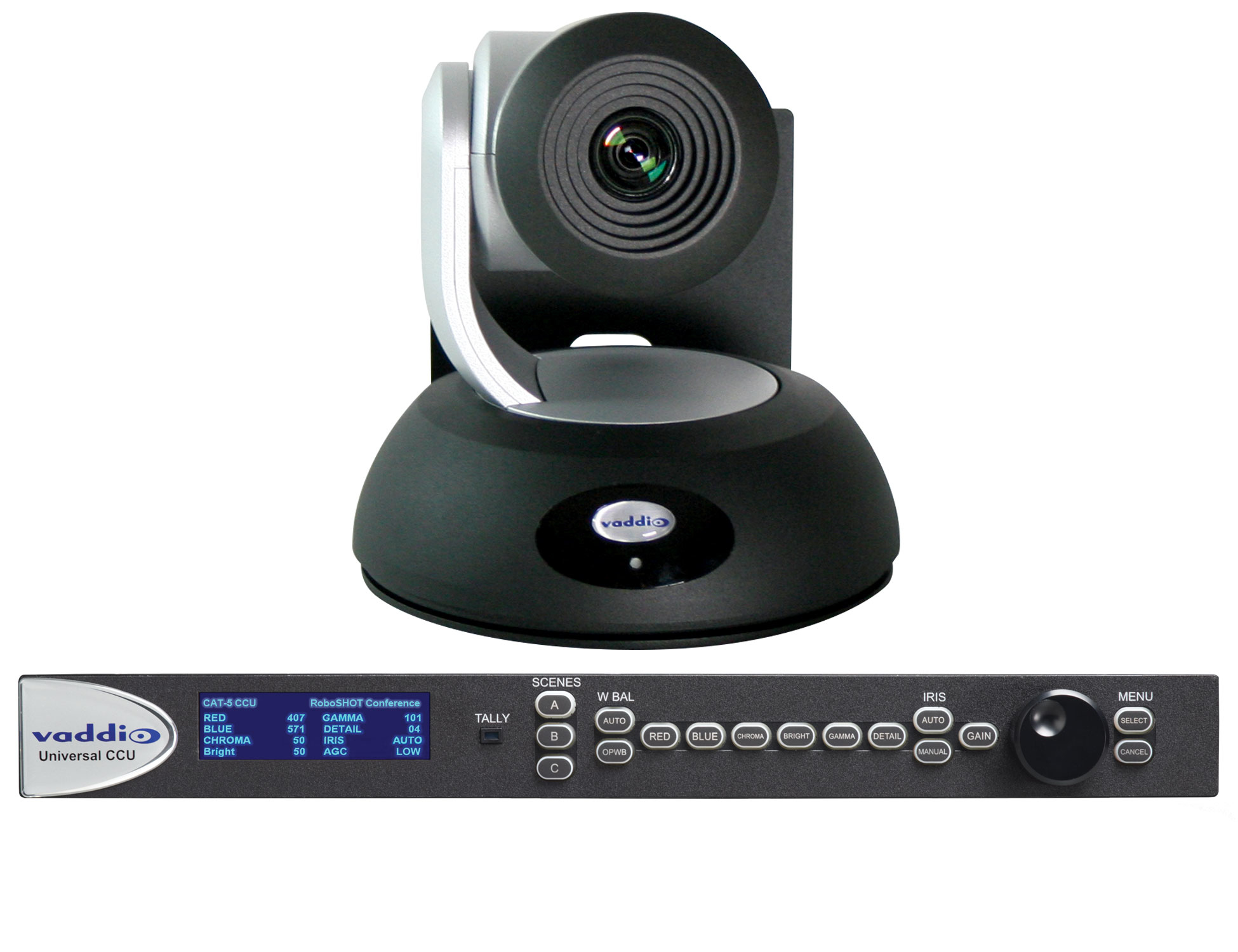

RoboSHOT 12 QCCU
Model RoboSHOT 12 QCCUPart no. 999-9907-001
59 specifications
- Weight2.2 kg
- ColourBlack, Silver
- HD typeFull HD
- Ethernet LAN (RJ-45) ports2
- Interface module HDMI ports quantity1
- Ethernet LANYes
Overview
- Weight
- 2.2 kg
- Colour
- Black, Silver
- HD type
- Full HD
- Ethernet LAN (RJ-45) ports
- 2
- Interface module HDMI ports quantity
- 1
- Ethernet LAN
- Yes
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- RoboSHOT 12 QCCU
- Part number
- 999-9907-001
- Also known as
- Vaddio RoboSHOT 12 QCCU video conferencing system 2.34 MP Ethernet LAN
Specifications
59 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Wall mountable | Yes |
| Pan range | -160 - 160° |
| Pan speed range | 0.35 - 120 °/sec |
| Tilt angle range | -30 - 90° |
| Tilt speed range | 0.35 - 120 °/sec |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Supported video modes | 720p, 1080i, 1080p |
| Maximum frame rate | 60 fps |
| Aspect ratio | 16:9 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) ports quantity | 2 |
| Video resolution rotary switch | Yes |

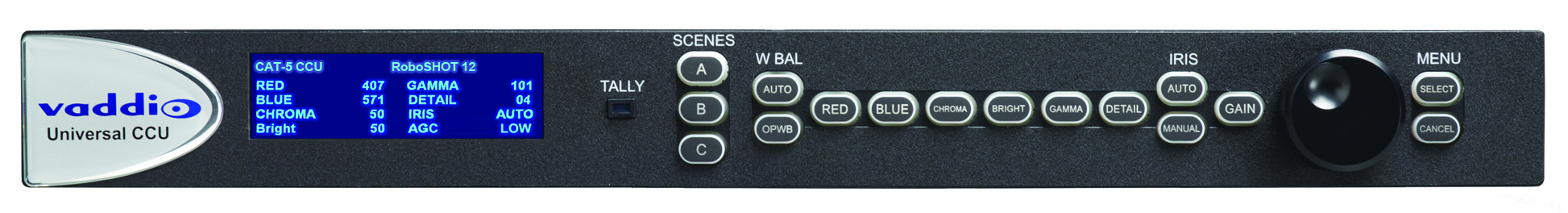

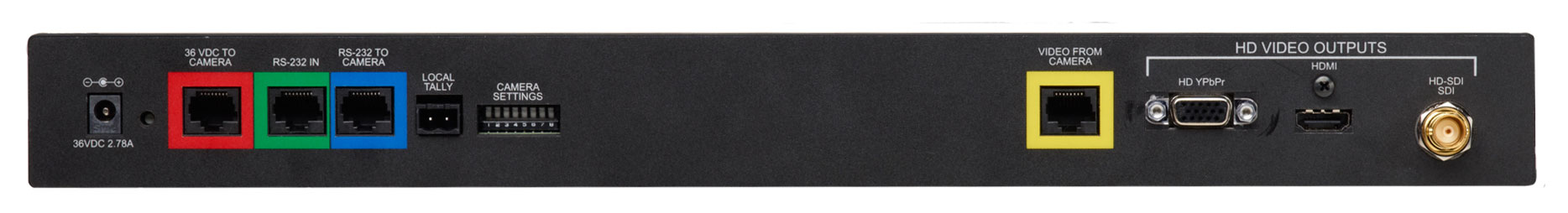

Interface module
| Specification | Value |
|---|---|
| Interface module HDMI ports quantity | 1 |
| Interface module VGA (D-Sub) ports quantity | 1 |
| Interface module BNC ports quantity | 1 |
| Interface module RJ-45 ports quantity | 4 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cable standard | Cat5e |
| Web-based management | Yes |
| Management protocols | Telnet |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.34 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.8" |
| Focal length range (normal mode) | 3.8 - 38 mm |
| Focal length range (super-wide mode) | 3.91 - 47 mm |
| Optical zoom (normal mode) | 10x |
| Optical zoom (super-wide mode) | 12x |
| Camera control algorithm | Tri-synchronous motion |
| Wide end viewing angle (normal mode) | 67.3° |
| Tele end viewing angle (normal mode) | 7.6° |
| Wide end viewing angle (super-wide mode) | 73° |
| Tele end viewing angle (super-wide mode) | 6.6° |
| Focus adjustment | Auto |
| Remote control interface | IR wireless/RS-232 |
| Recommended illumination range | 1 - 100 lx |
| Aperture range (F-F) | 1.8 - 3.4 |
| Minimum illumination | 1 lx |
| Closest focusing distance | 0.01 m |
| Closest focusing distance (tele) | 800 m |
| Lens modes | Normal lens mode, Super-wide lens mode |
| Sync system | Internal |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
Power
| Specification | Value |
|---|---|
| Current | 2.78 A |
| DC input voltage | 36 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 480.8 x 177.8 x 43.7 mm |
| Interface module weight | 1.56 kg |
| Camera dimensions (WxDxH) | 179.2 x 171.6 x 176.3 mm |
| Weight | 2.2 kg |
Packaging content
| Specification | Value |
|---|---|
| External interface module included | Yes |
| Wall mounting kit | Yes |
| Camera included | Yes |
| Remote control included | Yes |
