RoboSHOT 12
Model RoboSHOT 12Part no. 999-9575-401
50 specifications
- TypeGroup video conferencing system
- ColourBlack
- HD typeFull HD
- Noise reductionYes
- HDMI ports quantity1
- Megapixel (approx.)2.38 MP
Overview
- Type
- Group video conferencing system
- Colour
- Black
- HD type
- Full HD
- Noise reduction
- Yes
- HDMI ports quantity
- 1
- Megapixel (approx.)
- 2.38 MP
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- RoboSHOT 12
- Part number
- 999-9575-401
- Also known as
- Vaddio RoboSHOT 12 video conferencing system 2.38 MP Ethernet LAN Group video conferencing system
Specifications
50 specifications in 10 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Product colour | Black |
| Camera cable length (max) | 100 m |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Pan range | -160 - 160° |
| Pan speed range | 0.35 - 120 °/sec |
| Tilt angle range | -30 - 90° |
| Tilt speed range | 0.35 - 120 °/sec |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Supported video modes | 1080p |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Maximum frame rate | 60 fps |
| Resolution at capture speed | 1920x1080@60fps |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |

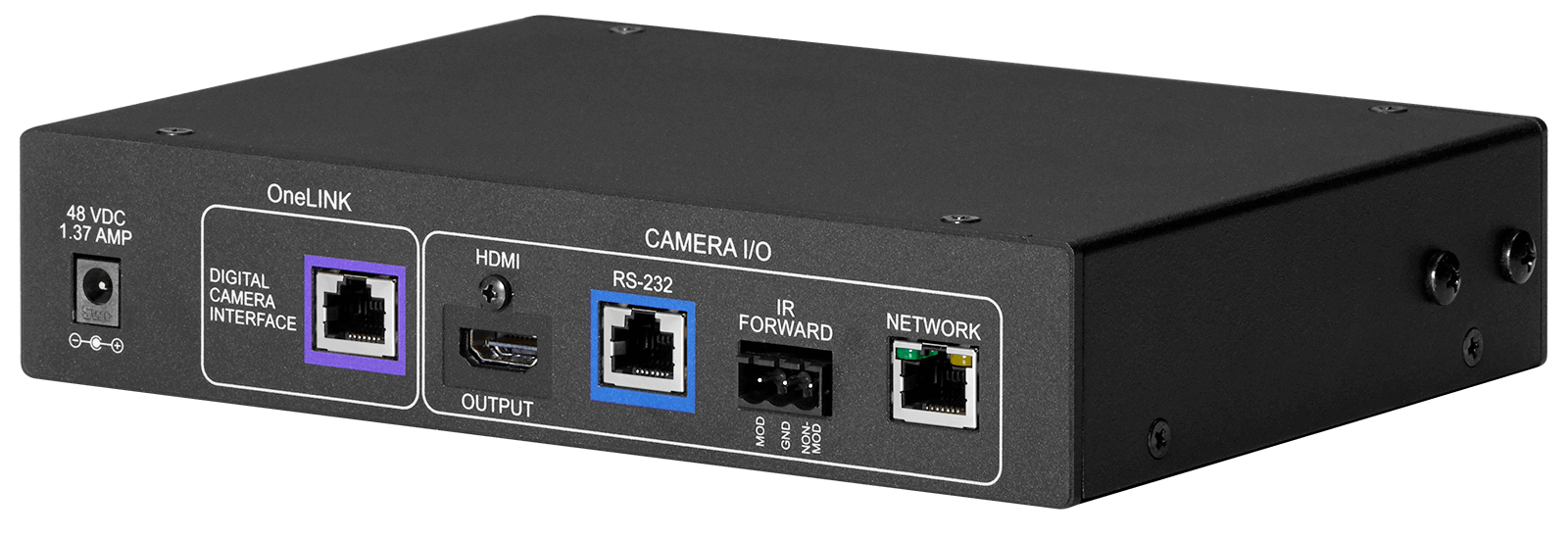

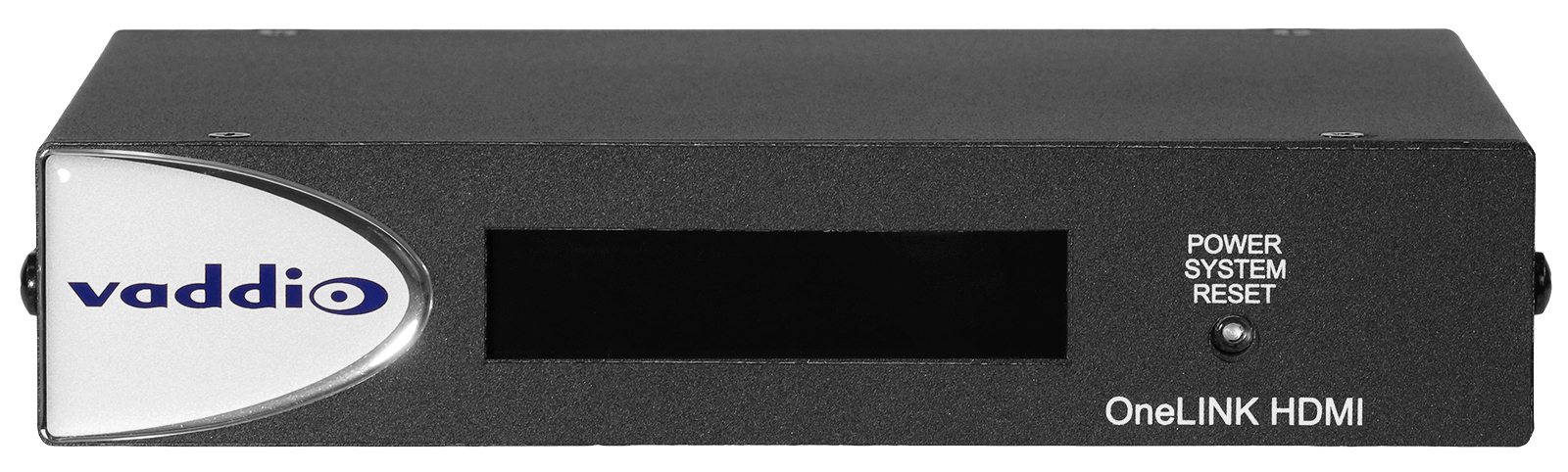

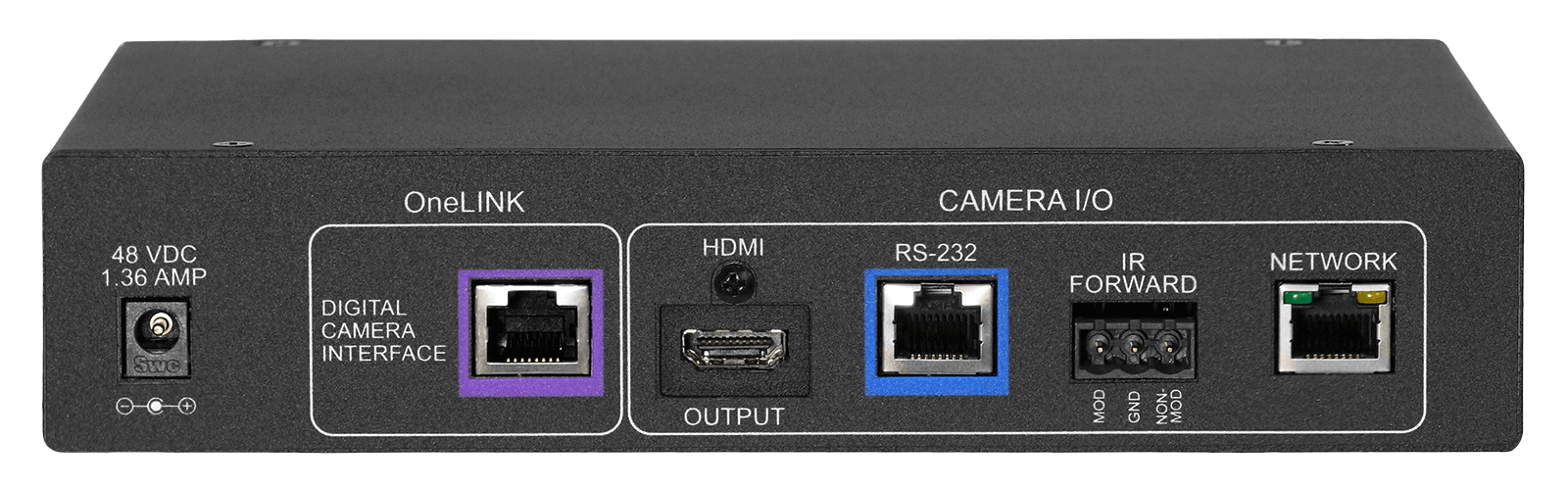

Interface module
| Specification | Value |
|---|---|
| Interface module HDMI ports quantity | 1 |
| Interface module RS-232 ports quantity | 1 |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.38 MP |
| Effective sensor resolution | 2.14 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.8" |
| Focal length range (normal mode) | 3.8 - 38 mm |
| Focal length range (super-wide mode) | 3.91 - 47 mm |
| Optical zoom (normal mode) | 10x |
| Optical zoom (super-wide mode) | 12x |
| Wide end viewing angle (normal mode) | 67.3° |
| Tele end viewing angle (normal mode) | 7.6° |
| Wide end viewing angle (super-wide mode) | 73° |
| Tele end viewing angle (super-wide mode) | 6.6° |
| Noise reduction number of steps | 6 |
| Focus adjustment | Auto/Manual |
| Aperture range (F-F) | 1.8 - 3.4 |
| Minimum illumination | 100 lx |
| Aperture number of steps | 16 |
| White balance | ATW, Auto, Indoor, Manual, One push, Outdoor |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto/Manual |
| Sync system | Internal |
| Gain number of steps | 28 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | 0 - 40 °C |
Power
| Specification | Value |
|---|---|
| Current | 1.36 A |
| DC input voltage | 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 213 x 152 x 44 mm |
| Interface module weight | 703 g |
| Camera dimensions (WxDxH) | 179 x 172 x 176 mm |
