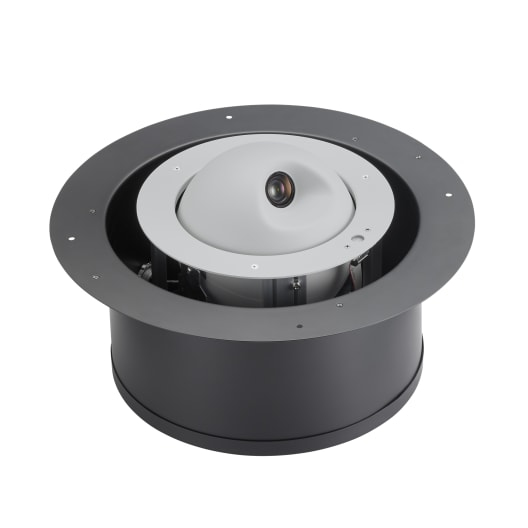

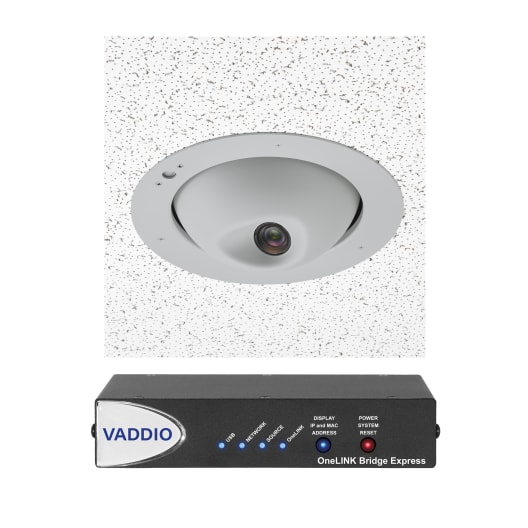

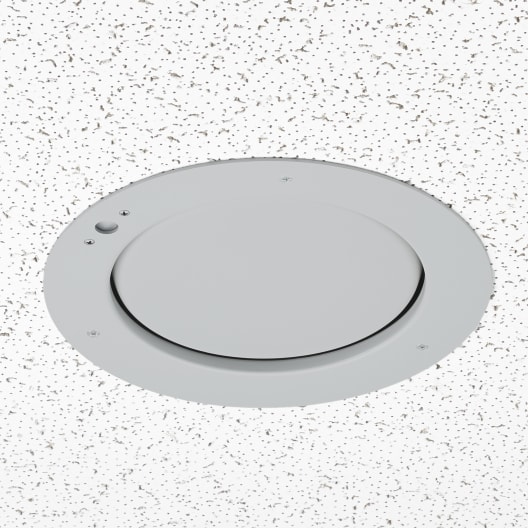

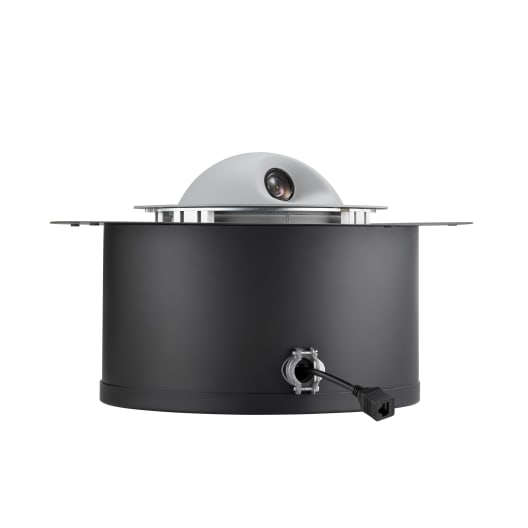

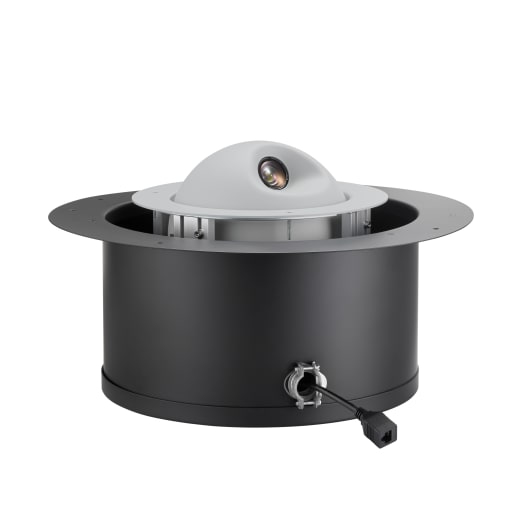

RoboFLIP 30 HDBT
Model RoboFLIP 30 HDBTPart no. 999-99800-271EAN 840077507756
56 specifications
- ColourBlack, White
- Number of cameras1
- HD typeFull HD
- Noise reductionYes
- Megapixel (approx.)8.67 MP
- Operating relative humidity (H-H)20 - 80%
Overview
- Colour
- Black, White
- Number of cameras
- 1
- HD type
- Full HD
- Noise reduction
- Yes
- Megapixel (approx.)
- 8.67 MP
- Operating relative humidity (H-H)
- 20 - 80%
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- RoboFLIP 30 HDBT
- Part number
- 999-99800-271
- EAN / UPC
- 840077507756
- Also known as
- Vaddio RoboFLIP 30 HDBT video conferencing system 8.67 MP Ethernet LAN Personal video conferencing system
Specifications
56 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Product type | Personal video conferencing system |
| Number of cameras | 1 |
| Product colour | Black, White |
| Camera cable length (max) | 100 m |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Pan range | -160 - 160° |
| Pan speed range | 0.35 - 120 °/sec |
| Tilt angle range | -30 - 90° |
| Tilt speed range | 0.35 - 120 °/sec |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum video resolution | 1920 x 1080 pixels |
| Supported video modes | 1080p |
| Aspect ratio | 3:2, 4:3, 16:9 |
| Video formats supported | H.264 |
| Streaming capability | Yes |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI ports quantity | 1 |
| Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Interface module RJ-45 ports quantity | 2 |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Interface module line-in ports quantity | 1 |
| Interface module line-out ports quantity | 1 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | HDBaseT |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 8.67 MP |
| Camera type | Single camera |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Digital zoom | 10x |
| Effective sensor resolution | 8.51 MP |
| Sensor type | Exmor |
| Image sensor size | 1/2.5" |
| Focal length range | 4.4 - 88.4 mm |
| Field of view (tele) | 800° |
| Field of view (wide) | 80° |
| Focus adjustment | Auto/Manual |
| Auto focusing (AF) modes | Auto, Manual, One Push Trigger |
| Wide Dynamic Range (WDR) | Yes |
| Aperture range (F-F) | 2 - 3.8 |
| Minimum illumination | 1.6 lx |
| Aperture number of steps | 16 |
| White balance | ATW, Auto, Indoor, Manual, One push, Outdoor |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto/Manual |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC input voltage | 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 213 x 152 x 44 mm |
| Interface module weight | 1.5 kg |
| Camera dimensions (WxDxH) | 406 x 406 x 235 mm |
| Camera weight | 6.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
