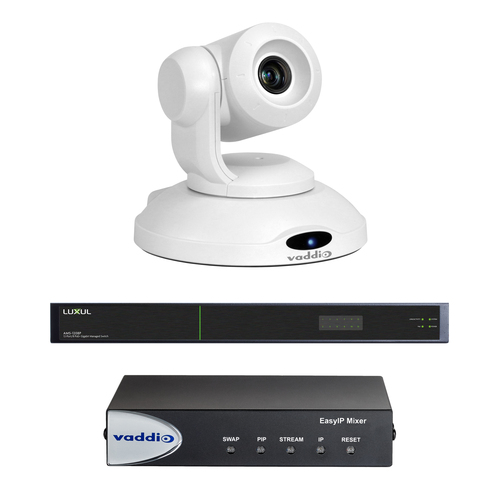

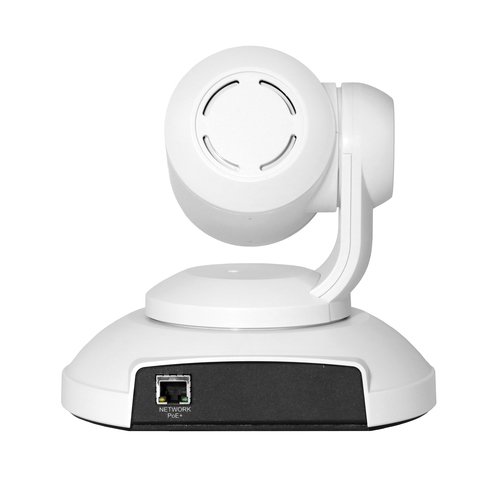

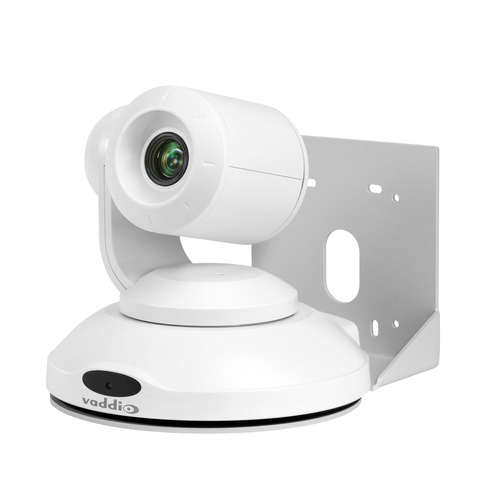

Vaddio EasyIP Mixer Base Kit
Vaddio

EasyIP Mixer Base Kit

Model EasyIP Mixer Base KitPart no. 999-60321-001WEAN 840077506568

52 specifications
  • TypeGroup video conferencing system
  • ColourWhite
  • HD typeFull HD
  • Noise reductionYes
  • HDMI ports quantity2
  • Interface module RJ-45 ports quantity16
See all specifications

Overview

Type
Group video conferencing system
Colour
White
HD type
Full HD
Noise reduction
Yes
HDMI ports quantity
2
Interface module RJ-45 ports quantity
16
Brand
Vaddio
Model
EasyIP Mixer Base Kit
Part numbers
999-60321-001W, 999-60321-001
EAN / UPC
840077506568, 840077506599
Also known as
Vaddio EasyIP 10 Mixer Base Kit 999-60321-001W

Specifications

52 specifications in 13 groups

Performance

Product typeGroup video conferencing system
Product colourWhite
Signal-to-Noise Ratio (SNR)50 dB
Pan range-165 - 165°
Pan speed90 °/sec
Tilt speed90 °/sec
Tilt angle range-30 - 90°
PTZ controlYes

Video

HD typeFull HD
Supported video modes720p, 1080i, 1080p
Maximum frame rate60 fps
Aspect ratio3:2, 4:3, 16:9
Resolution at capture speed1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps

Audio

Noise reductionYes

Ports & interfaces

HDMI ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
Power over Ethernet (PoE) ports quantity1
Power over Ethernet plus (PoE+) ports quantity1
Line-inYes
Line-outYes
RS-232 ports1

Interface module

Interface module RJ-45 ports quantity16

Network

Ethernet LANYes

Camera

Megapixel (approx.)2.38 MP
Effective sensor resolution2.14 MP
Sensor typeCMOS
Image sensor size1/2.8"
Focal length range3.8 - 38 mm
Optical zoom (normal mode)10x
Horizontal field of view67°
Wide Dynamic Range (WDR)Yes
Number of camera presets16
Aperture range (F-F)1.8 - 3.4
Minimum illumination100 lx
Aperture number of steps16
White balanceAuto, Manual, One push
Back Light Compensation (BLC)Yes

Features

TelepresenceNo

Logistics data

Harmonized System (HS) code85176990

Operational conditions

Operating temperature (T-T)0 - 40 °C

Certificates

Compliance certificatesFederal Communications Commission (FCC), CE, TAA
CertificationCE,FCC,TAA

Weight & dimensions

Interface module dimensions (W x D x H)439.4 x 209.6 x 44.5 mm
Interface module weight2.81 kg
Camera dimensions (WxDxH)155 x 145 x 163 mm
Camera weight1.36 kg
Width212.7 mm
Depth152.4 mm
Height43.7 mm

Packaging content

Cables includedAC, LAN (RJ-45), Serial, USB
Mounting kitYes
Packaging contentEasyIP Mixer Half-Rack mounting kit (for mounting the EasyIP Mixer into a full rack space) EasyIP 10 Camera (black or white) Thin Profile Wall Mount with mounting hardware and installation guide Vaddio IR Remote Commander EasyIP Switc Rack Mount Kit (for mounting EasyIP Switch) 10 ft (3.05m) cat-5e
