Vaddio EasyIP Ecosystem Base Kit
Vaddio

EasyIP Ecosystem Base Kit

Model EasyIP Ecosystem Base KitPart no. 999-30201-001EAN 840077505783

49 specifications
  • TypeGroup video conferencing system
  • Weight1.26 kg
  • ColourBlack
  • HD typeFull HD
  • Noise reductionYes
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
See all specifications

Overview

Type
Group video conferencing system
Weight
1.26 kg
Colour
Black
HD type
Full HD
Noise reduction
Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
1
Brand
Vaddio
Model
EasyIP Ecosystem Base Kit
Part numbers
999-30201-001, 999-30201-001W
EAN / UPC
840077505783, 840077505813
Also known as
Vaddio EasyIP 10 Base Kit with Professional IP PTZ Camera

Specifications

49 specifications in 13 groups

Performance

Product typeGroup video conferencing system
Product colourBlack
Signal-to-Noise Ratio (SNR)50 dB
Pan range-165 - 165°
Pan speed90 °/sec
Tilt speed90 °/sec
Tilt angle range-30 - 90°
PTZ controlYes

Video

HD typeFull HD
Supported video modes720p, 1080i, 1080p
Maximum frame rate60 fps
Aspect ratio3:2, 4:3, 16:9
Resolution at capture speed1280x720@50fps, 1280x720@59.94fps, 1280x720@60fps, 1920x1080@25fps, 1920x1080@29.97fps, 1920x1080@50fps, 1920x1080@59.94fps, 1920x1080@60fps

Audio

Noise reductionYes

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
Ethernet LAN (RJ-45) ports2
Power over Ethernet plus (PoE+) ports quantity2

Interface module

Interface module RJ-45 ports quantity16

Network

Ethernet LANYes

Camera

Megapixel (approx.)2.38 MP
Effective sensor resolution2.14 MP
Sensor typeCMOS
Image sensor size1/2.8"
Focal length range3.8 - 38 mm
Optical zoom (normal mode)10x
Horizontal field of view67°
Wide Dynamic Range (WDR)Yes
Number of camera presets16
Aperture range (F-F)1.8 - 3.4
Minimum illumination100 lx
Aperture number of steps16
White balanceAuto, Manual, One push
Back Light Compensation (BLC)Yes

Features

TelepresenceNo

Logistics data

Harmonized System (HS) code85176990

Operational conditions

Operating temperature (T-T)0 - 40 °C

Certificates

Compliance certificatesFederal Communications Commission (FCC), CE, TAA
CertificationCE,FCC,TAA

Weight & dimensions

Interface module dimensions (W x D x H)439.4 x 209.6 x 44.5 mm
Interface module weight2.81 kg
Camera dimensions (WxDxH)155 x 145 x 163 mm
Camera weight1.36 kg
Width213 mm
Depth152 mm
Height44 mm
Weight1.26 kg

Packaging content

Cables includedAC, LAN (RJ-45), Serial, USB
Mounting kitYes

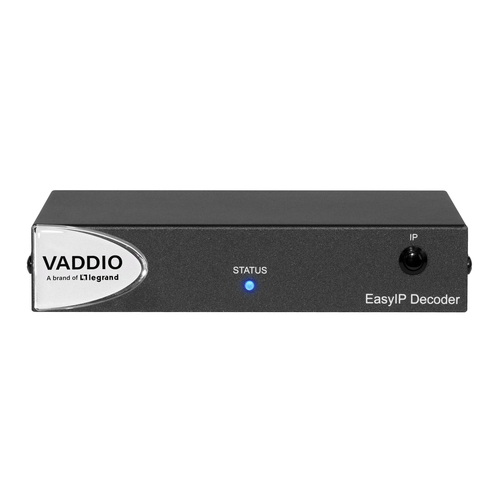

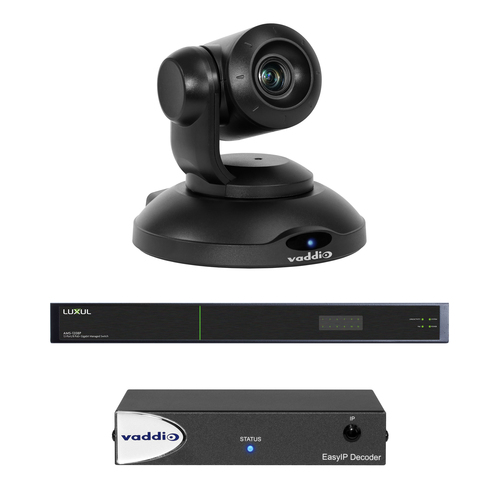

Packaging contentEasyIP 10 Camera (black or white) Thin Profile Wall Mount with mounting hardware Vaddio IR Remote Commander EasyIP Switch Rack mount kit (for mounting the EasyIP Switch) EasyIP Decoder Half-Rack mounting kit (for mounting the EasyIP Decoder into a full rack space) 10 ft (3.05m) cat-5e snagless Cable
