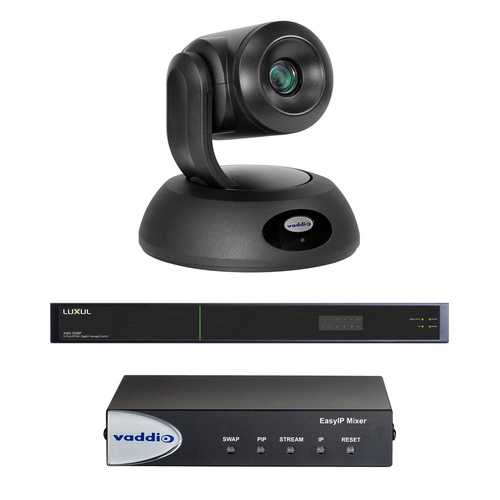

EasyIP 20 Mixer Base Kit
Model EasyIP 20 Mixer Base KitPart no. 999-30231-001EAN 840077506650
59 specifications
- TypeGroup video conferencing system
- Weight1.26 kg
- ColourBlack
- HD typeFull HD
- Noise reductionYes
- HDMI ports quantity1
Overview
- Type
- Group video conferencing system
- Weight
- 1.26 kg
- Colour
- Black
- HD type
- Full HD
- Noise reduction
- Yes
- HDMI ports quantity
- 1
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- EasyIP 20 Mixer Base Kit
- Part numbers
- 999-30231-001, 999-30231-001W
- EAN / UPC
- 840077506650, 840077506681
- Also known as
- Vaddio EasyIP 20 Mixer Base Kit
Specifications
59 specifications in 13 groups
Performance
| Specification | Value |
|---|---|
| Product type | Group video conferencing system |
| Product colour | Black |
| Signal-to-Noise Ratio (SNR) | 60 dB |
| Wall mountable | Yes |
| Pan range | -150 - 150° |
| Pan speed | 0.35 °/sec |
| Tilt speed | 120 °/sec |
| Tilt angle range | -30 - 90° |
| PTZ control | Yes |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Total megapixels | 2.38 MP |
| Supported video modes | 1080p |
| Maximum frame rate | 60 fps |
| Aspect ratio | 16:9 |
| Resolution at capture speed | 1920x1080@60fps |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| RS-232 ports | 1 |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI input ports quantity | 1 |
| Interface module HDMI output ports quantity | 1 |
| Interface module RJ-45 ports quantity | 19 |
| Interface module Ethernet LAN (RJ-45) ports | 3 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Web-based management | Yes |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.14 MP |
| Optical zoom | 20x |
| Sensor type | CMOS |
| Image sensor size | 1/2.8" |
| Wide end viewing angle (normal mode) | 70.2° |
| Tele end viewing angle (normal mode) | 5° |
| Noise reduction number of steps | 16 |
| Focus adjustment | Auto/Manual |
| Wide Dynamic Range (WDR) | Yes |
| Number of camera presets | 16 |
| PTZ motors | Silent BLDC Direct Drive |
| Remote control interface | IR wireless/RS-232 |
| Camera shutter speed | 1/1 - 1/10000 s |
| Minimum illumination | 100 lx |
| White balance | Auto, Manual, One push |
| Gain control type | Auto/Manual |
Features
| Specification | Value |
|---|---|
| Invertible | Yes |
| Tri-Synchronous Motion Technology | Yes |
| Control method | IR remote, Joystick, RS-232, Telnet, Web UI |
| OneLink compatibility | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE, TAA |
| Certification | CE,FCC,TAA |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 439.4 x 209.6 x 44.5 mm |
| Camera dimensions (WxDxH) | 154.9 x 139.7 x 160 mm |
| Width | 213 mm |
| Depth | 152 mm |
| Height | 44 mm |
| Weight | 1.26 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, LAN (RJ-45), Serial, USB |
| Mounting kit | Yes |
| Packaging content | EasyIP Mixer Half-Rack mounting kit (for mounting the EasyIP Mixer into a full rack space) EasyIP 20 Camera (black or white) Thin Profile Wall Mount with mounting hardware and installation guide Vaddio IR Remote Commander EasyIP Switch Rack Mount Kit (for mounting EasyIP Switch) 10 ft (3.05m) cat-5e |
