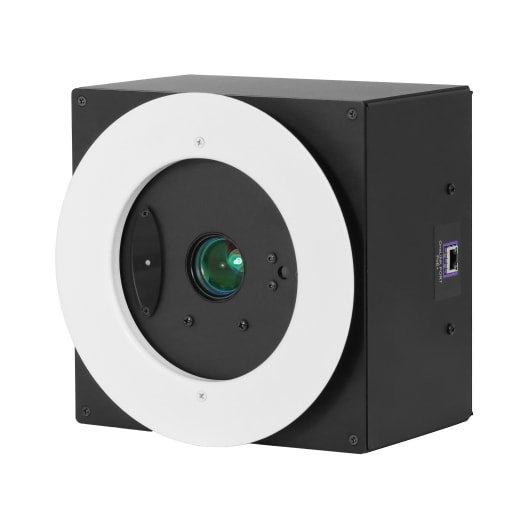

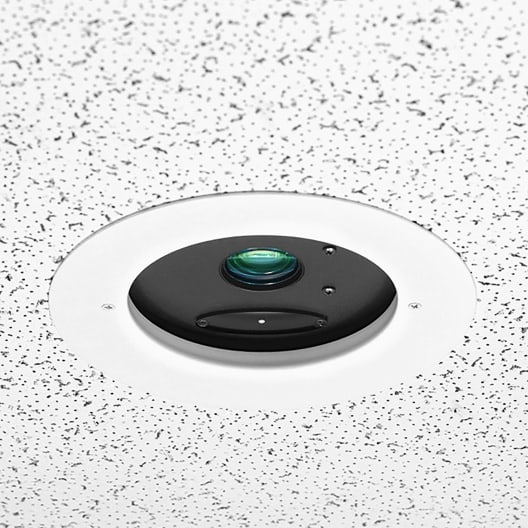

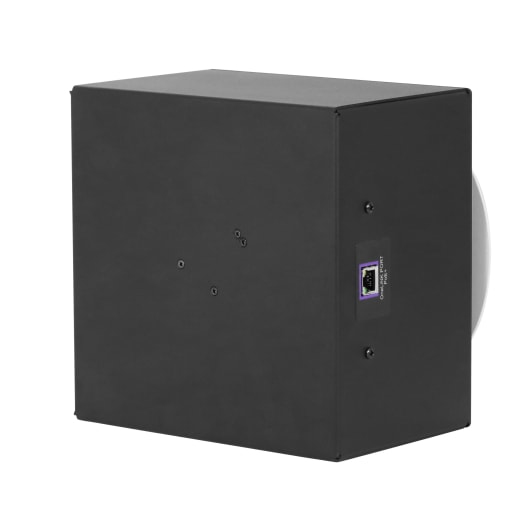

DocCam 20 HDBT
Model DocCam 20 HDBTPart no. 999-9968-371EAN 840077507732
49 specifications
- ColourBlack, White
- Number of cameras1
- HD typeFull HD
- Noise reductionYes
- Megapixel (approx.)2.38 MP
- Operating relative humidity (H-H)20 - 80%
Overview
- Colour
- Black, White
- Number of cameras
- 1
- HD type
- Full HD
- Noise reduction
- Yes
- Megapixel (approx.)
- 2.38 MP
- Operating relative humidity (H-H)
- 20 - 80%
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- DocCam 20 HDBT
- Part number
- 999-9968-371
- EAN / UPC
- 840077507732
- Also known as
- Vaddio DocCam 20 HDBT video conferencing system 2.38 MP Ethernet LAN Personal video conferencing system
Specifications
49 specifications in 11 groups
Performance
| Specification | Value |
|---|---|
| Product type | Personal video conferencing system |
| Number of cameras | 1 |
| Product colour | Black, White |
| Camera cable length (max) | 100 m |
| Signal-to-Noise Ratio (SNR) | 50 dB |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Maximum video resolution | 1920 x 1080 pixels |
| Supported video modes | 1080p |
| Maximum frame rate | 60 fps |
| Resolution at capture speed | 1920x1080@60fps |
| Streaming capability | Yes |
Audio
| Specification | Value |
|---|---|
| Noise reduction | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Interface module
| Specification | Value |
|---|---|
| Interface module HDMI ports quantity | 1 |
| Interface module USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Interface module RJ-45 ports quantity | 2 |
| Interface module Ethernet LAN (RJ-45) ports | 1 |
| Interface module line-in ports quantity | 1 |
| Interface module line-out ports quantity | 1 |
| Interface module DC input port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Supported network protocols | HDBaseT |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.38 MP |
| Camera type | Single camera |
| Zoom capability | Yes |
| Optical zoom | 20x |
| Effective sensor resolution | 2.14 MP |
| Sensor type | Exmor |
| Image sensor size | 1/2.8" |
| Focal length range | 4.7 - 94 mm |
| Field of view (tele) | 3.3° |
| Field of view (wide) | 60° |
| Focus adjustment | Auto/Manual |
| Auto focusing (AF) modes | Auto, Manual, One Push Trigger |
| Aperture range (F-F) | 1.6 - 3.5 |
| Minimum illumination | 0.4 lx |
| Aperture number of steps | 16 |
| White balance | ATW, Auto, Indoor, Manual, One push, Outdoor |
| Back Light Compensation (BLC) | Yes |
| Gain control type | Auto/Manual |
| Gain number of steps | 28 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
Weight & dimensions
| Specification | Value |
|---|---|
| Interface module dimensions (W x D x H) | 213 x 152 x 44 mm |
| Interface module weight | 1.5 kg |
| Camera dimensions (WxDxH) | 203 x 203 x 108 mm |
| Camera weight | 2.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | Yes |
