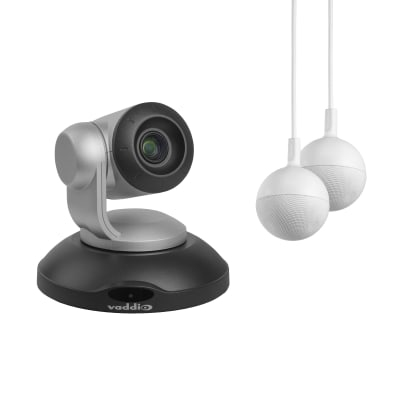

ConferenceSHOT AV Bundle - CeilingMIC 2 (without speaker)
Model ConferenceSHOT AV Bundle - CeilingMIC 2 (without speaker)Part no. 999-99950-701EAN 840077505448
67 specifications
- ColourBlack, Silver
- HD typeFull HD
- Frequency range20 - 20000 Hz
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity1
- Ethernet LANYes
- Megapixel (approx.)2.14 MP
Overview
- Colour
- Black, Silver
- HD type
- Full HD
- Frequency range
- 20 - 20000 Hz
- USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
- 1
- Ethernet LAN
- Yes
- Megapixel (approx.)
- 2.14 MP
- Brand
- Vaddio
- Category
- Video Conferencing System
- Model
- ConferenceSHOT AV Bundle - CeilingMIC 2 (without speaker)
- Part number
- 999-99950-701
- EAN / UPC
- 840077505448
- Also known as
- Vaddio ConferenceSHOT AV Bundle - CeilingMIC 2 (without speaker) (black/silver)
Specifications
67 specifications in 12 groups
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Signal-to-Noise Ratio (SNR) | 50 dB |
| Pan range | -165 - 165° |
| Pan speed | 90 °/sec |
| Tilt speed | 90 °/sec |
| Tilt angle range | -30 - 90° |
Video
| Specification | Value |
|---|---|
| HD type | Full HD |
| Supported video modes | 480p, 720p, 1080p |
| Maximum frame rate | 60 fps |
| Video codecs | H.264 |
Audio
| Specification | Value |
|---|---|
| Frequency range | 20 - 20000 Hz |
| Line-out impedance | 50 Ω |
| Output voltage Total Harmonic Distortion (THD) | 0.02% |
| Automatic gain control | Yes |
| Echo cancellation | Yes |
| Noise reduction | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet plus (PoE+) ports quantity | 1 |
| Line-out | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Web-based management | Yes |
| Management protocols | Telnet |
Camera
| Specification | Value |
|---|---|
| Megapixel (approx.) | 2.14 MP |
| Effective sensor resolution | 2.14 MP |
| Sensor type | CMOS |
| Image sensor size | 1/2.8" |
| Focal length range (normal mode) | 3.8 - 38 mm |
| Optical zoom (normal mode) | 10x |
| Optical zoom (super-wide mode) | 11x |
| Wide end viewing angle (normal mode) | 67° |
| Tele end viewing angle (normal mode) | 7.6° |
| Wide end viewing angle (super-wide mode) | 74° |
| Tele end viewing angle (super-wide mode) | 7.6° |
| Focus adjustment | Auto/Manual |
| Remote control interface | IR Wireless |
| Aperture range (F-F) | 1.8 - 3.4 |
| Minimum illumination | 100 lx |
| Aperture number of steps | 16 |
| White balance | Auto, Manual, One push |
| Closest focusing distance (wide) | 0.01 m |
| Closest focusing distance (tele) | 1 m |
| Lens modes | Normal lens mode, Super-wide lens mode |
| Gain control type | Auto/Manual |
| Sync system | Internal |
Microphone
| Specification | Value |
|---|---|
| Microphone colour | White |
| Microphone sensitivity | 90 dB |
| Microphone frequency | 100 - 16000 Hz |
| Microphone Total Harmonic Distortion (THD) | 0.02% |
| Maximum input level | 115 dBu |
| Number of microphones | 2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -5 - 60 °C |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) power per port | 25 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE Approved, FCC Approved, UL Listed, TAA Compliant |
Weight & dimensions
| Specification | Value |
|---|---|
| Microphone weight | 900 g |
| Camera dimensions (WxDxH) | 155 x 145 x 163 mm |
| Camera weight | 1.36 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of microphones included | 1 |
| PoE adapter included | Yes |
| Mounting kit | Yes |
| Speaker included | No |
| Camera included | Yes |
| Microphone included | Yes |
